G2060

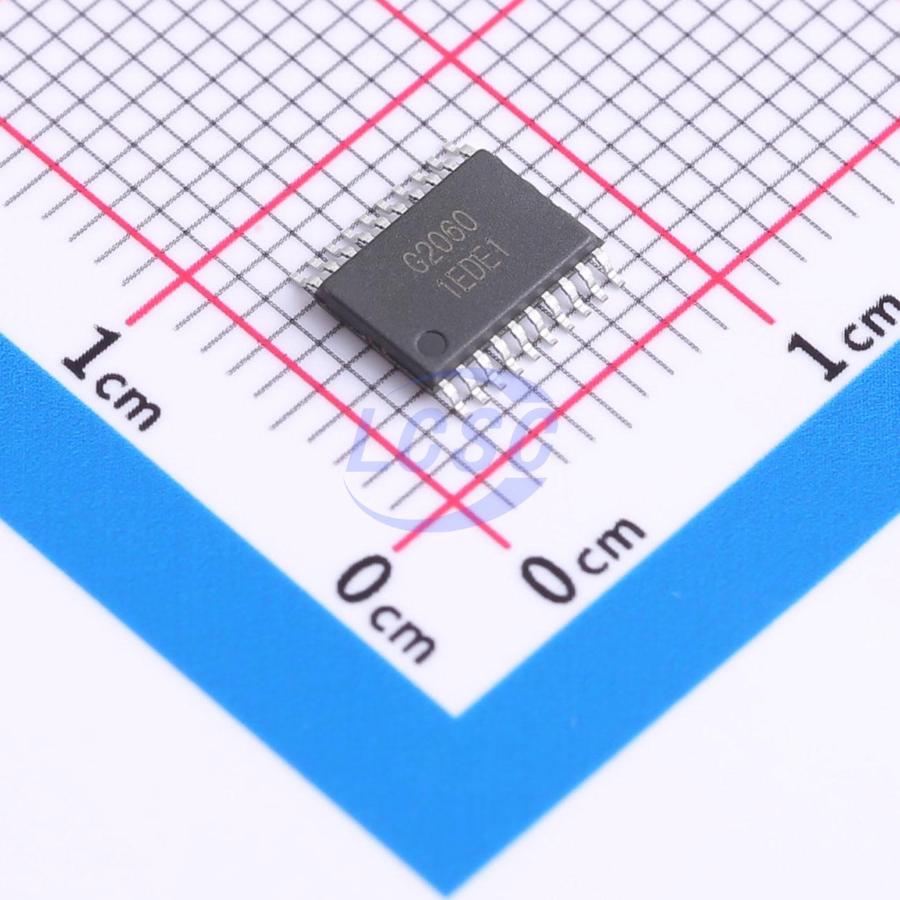

The G2060 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC, fabricated using a process compatible with both high- and low-voltage operation to enable monolithic integration of the high- and low-side gate drive circuits. It features independent high-side and low-side referenced output channels. Logic inputs are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The outputs provide high-current pulse capability and cross-conduction prevention dead-time logic. The floating channel can be used to drive a high-side N-channel power MOSFET, with a maximum floating supply voltage of 250V. The G2060 is available in a TSSOP20 package and is rated for operation over a temperature range of -40°C to 125°C.

Applications

• Motor Control
• Air Conditioner/Washing Machine
• General-Purpose Inverter
• Micro Inverter Drive

Key features

• Floating high-side channel with bootstrap operation
• Maximum operating voltage +250V
• Compatible with 3.3V/5V input logic
• dV_S/dt immunity up to ±50 V/ns
• Vs negative bias capability down to -9V
• Gate drive voltage range 8V to 20V
• High- and low-side undervoltage lockout (UVLO)
• High-side UVLO positive threshold 7.1V
• High-side UVLO negative threshold 6.9V
• Low-side UVLO positive threshold 7V
• Low-side UVLO negative threshold 6.6V
• Cross-conduction prevention dead-time logic
• Dead time 200ns
• Propagation delay characteristics
• Turn-on/turn-off propagation delay Ton/Toff = 150ns/120ns
• Delay matching less than 50ns
• Wide temperature range -40~125°C
• Output stage source/sink current capability 1.5A/1.8A
• RoHS compliant
