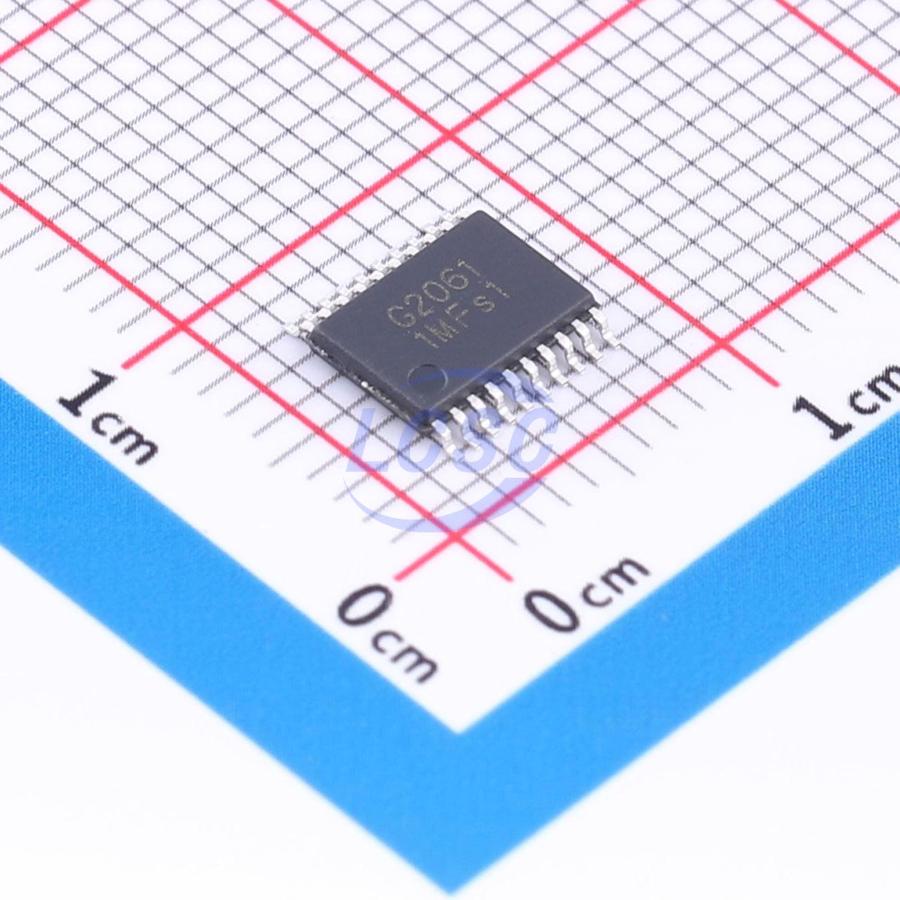

G2061
8V~20V 1.8A 1.5A TSSOP-20 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- G2061
- Store part #
- C53436212
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,037 in stock
#C53436212
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.44 | ₹98.44 |
| 10+ | ₹75.68 | ₹756.80 |
| 30+ | ₹65.91 | ₹1,977.30 |
| 100+ | ₹53.78 | ₹5,378.00 |
| 500+ | ₹48.36 | ₹24,180.00 |
| 1,000+ | ₹45.10 | ₹45,100.00 |
1 × ₹98.44
₹98.44
excl. GST
₹116.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
G2061
₹98.44 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 230uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.244 g
Overview
G2061 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC, fabricated using a high-low voltage compatible process that enables monolithic integration of both high-side and low-side gate drive circuits, with independent high-side and low-side referenced output channels. Logic input levels are compatible with CMOS or LSTTL logic outputs down to 3.3V. The outputs feature high-current pulse capability and shoot-through prevention dead-time logic. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply voltage of 250V, requiring an external bootstrap circuit. Both high-side and low-side channels incorporate undervoltage lockout (UVLO) protection. The G2061 is available in a TSSOP20 package and operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner / Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage +250V
- Compatible with 3.3/5V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 8V to 20V
- High- and low-side UVLO: high-side UVLO positive threshold 7.1V, high-side UVLO negative threshold 6.9V, low-side UVLO positive threshold 7V, low-side UVLO negative threshold 6.6V
- Cross-conduction prevention dead-time logic: dead time 200ns
- Propagation delay characteristics: turn-on/turn-off delay Ton/Toff = 150ns/120ns, delay matching less than 50ns
- Wide temperature range -40~125℃
- Output stage source/sink current capability 1.5A/1.8A
- RoHS compliant
