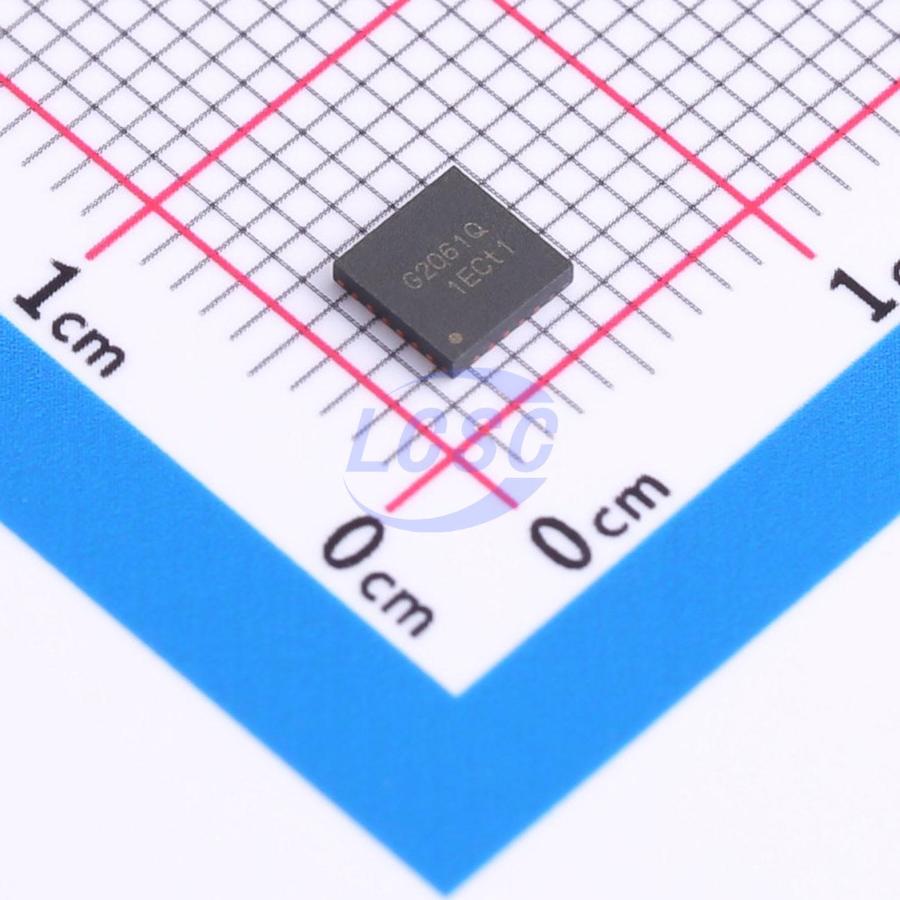

G2061Q
Three Phase High Side Low Side Gate Driver IC MOSFET IGBT QFN-24
Three-phase high and low side power MOSFET/IGBT driver chip
- Manufacturer
- WXNSIC
- Manufacturer part #
- G2061Q
- Store part #
- C7421053
- Package / case
- QFN-24
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,540 in stock
#C7421053
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹74.38 | ₹371.90 |
| 50+ | ₹58.54 | ₹2,927.00 |
| 150+ | ₹51.82 | ₹7,773.00 |
| 500+ | ₹43.37 | ₹21,685.00 |
| 2,500+ | ₹39.69 | ₹99,225.00 |
| 5,000+ | ₹37.30 | ₹1,86,500.00 |
5 × ₹74.38
₹371.90
excl. GST
₹438.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
G2061Q
₹371.90 for 5 + GST
Specifications
- Quiescent Current
- 230uA
- Voltage - Supply
- 8V~20V
- Driven Configuration
- High Side;Low Side;Three Phase
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.411 g
Overview
G2061Q is a family of high-voltage, high-speed power MOSFET high- and low-side gate driver ICs, fabricated with a high-voltage compatible process that integrates both high-side and low-side gate drive circuits on a single chip, featuring independent high-side and low-side referenced output channels. Logic inputs are compatible with CMOS or LSTTL output levels down to 3.3V, and the outputs provide high-current pulse capability with shoot-through prevention dead-time logic. The floating channel can be used to drive high-side N-channel power MOSFETs, with a maximum floating supply offset voltage up to 250V. The device is available in a QFN24 package and operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +250V
- Compatible with 3.3/5V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 8V to 20V
- High- and low-side UVLO; high-side UVLO positive threshold 7.1V, high-side UVLO negative threshold 6.9V, low-side UVLO positive threshold 7V, low-side UVLO negative threshold 6.6V
- Cross-conduction prevention dead-time logic, dead-time set at 200ns
- Propagation delay characteristics: turn-on/turn-off delay Ton/Toff = 150ns / 120ns, delay matching less than 50ns
- Wide temperature range -40 ~ 125°C
- Output stage source/sink current capability 1.5A/1.8A
- RoHS compliant
