G2063

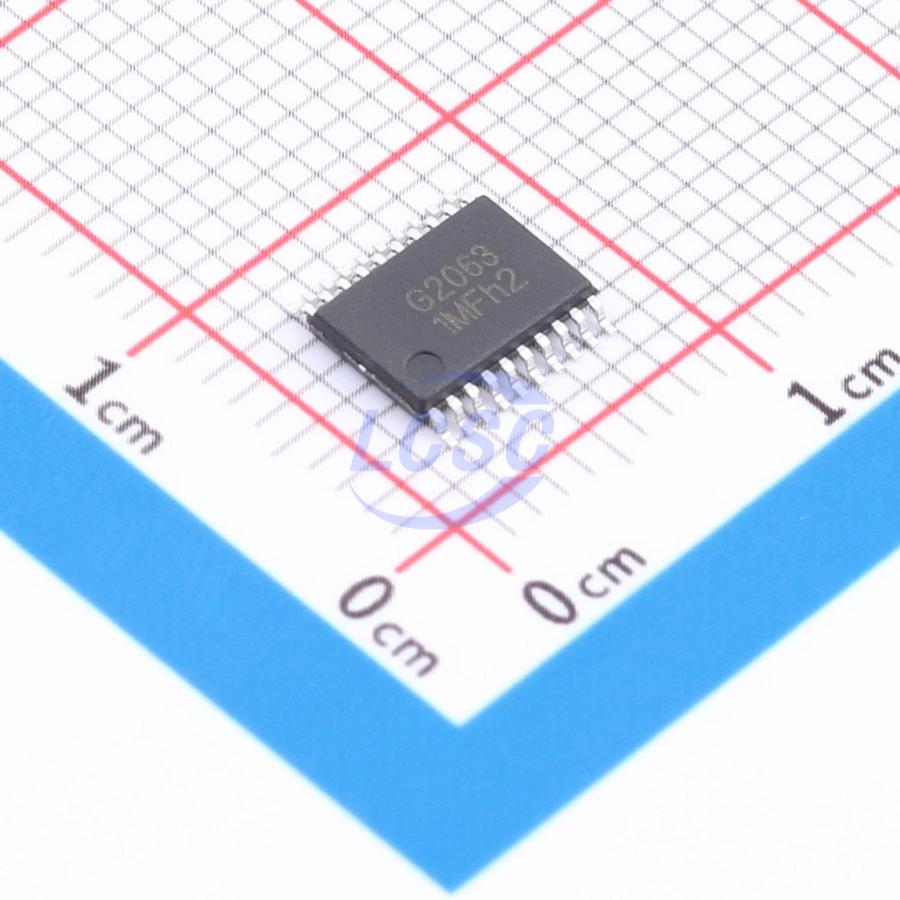

A high-voltage, high-speed power MOSFET high- and low-side gate driver IC, implemented in a high-low voltage compatible process for single-chip integration of both high-side and low-side gate drive circuits, with independent high-side and low-side referenced output channels. Logic input levels are compatible with CMOS or LSTTL logic outputs down to 3.3V. The output stage features high-current pulse capability and shoot-through prevention deadtime logic. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply offset voltage of 250V. Packaged in TSSOP20, operating temperature range -40~125°C.

Applications

• Motor Control
• Air Conditioner / Washing Machine
• General-Purpose Inverter
• Micro Inverter Drive

Key features

• Bootstrap-operated floating high-side channel
• Maximum operating voltage up to +250 V
• Compatible with 3.3/5 V input logic
• dVs/dt immunity up to ±50 V/ns
• Vs negative bias capability down to -9 V
• Gate drive voltage range 5 V to 20 V
• High- and low-side supply 4.5 V UVLO
• High- and low-side in-phase input/output logic
• Anti-shoot-through dead-time logic
• Dead time set at 200 ns
• Turn-on/turn-off propagation delay Ton/Toff = 150 ns/120 ns
• Delay matching time less than 50 ns
• Wide temperature range -40~125°C
• Output stage source/sink current capability 1.5 A/1.8 A
• RoHS compliant
