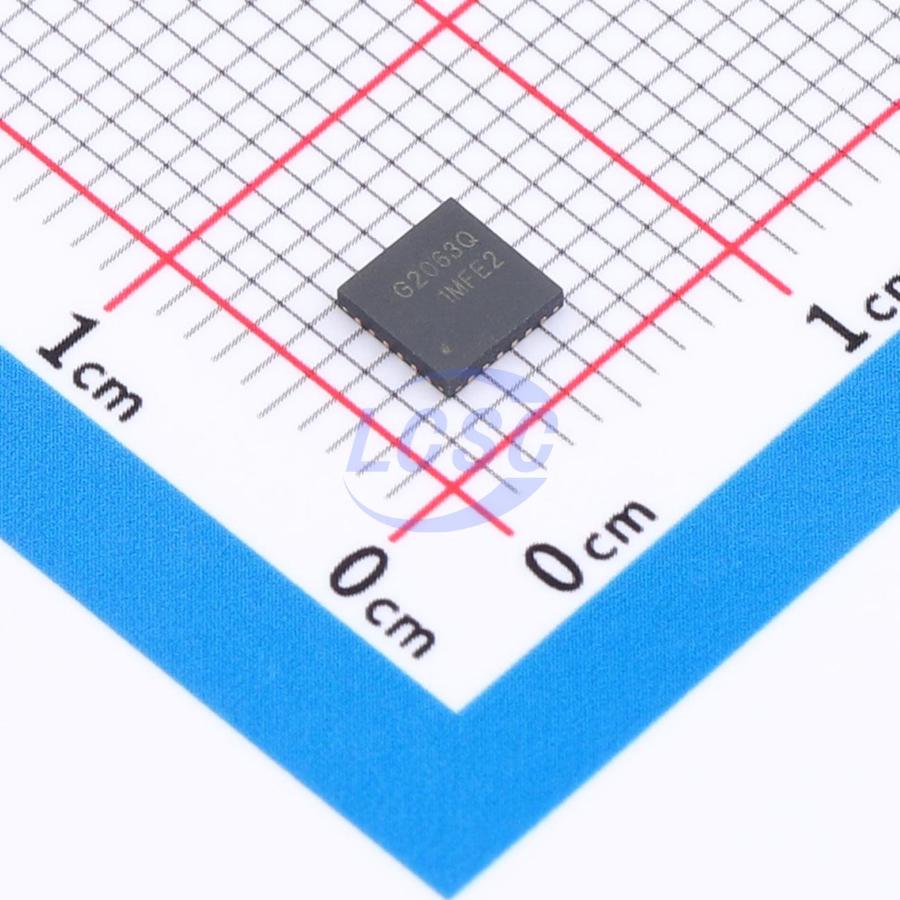

G2063Q
5V~20V 1.8A 1.5A QFN-24(4x4) Gate Drivers
- Manufacturer
- WXNSIC
- Manufacturer part #
- G2063Q
- Store part #
- C49449773
- Package / case
- QFN-24(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,353 in stock
#C49449773
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.65 | ₹72.65 |
| 10+ | ₹57.46 | ₹574.60 |
| 30+ | ₹50.96 | ₹1,528.80 |
| 100+ | ₹42.72 | ₹4,272.00 |
| 500+ | ₹39.25 | ₹19,625.00 |
| 1,000+ | ₹37.08 | ₹37,080.00 |
1 × ₹72.65
₹72.65
excl. GST
₹85.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
G2063Q
₹72.65 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 230uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
G2063Q is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC, fabricated with a high-low voltage compatible process that enables monolithic integration of both high-side and low-side gate drive circuits. It features independent high-side and low-side referenced output channels. The G2063Q logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The outputs provide high-current pulse capability and shoot-through prevention dead-time logic. The floating channel of the G2063Q can be used to drive a high-side N-channel power MOSFET, with a maximum floating supply offset voltage of +250V. The G2063Q is available in a QFN4X4-24 package and operates over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- Air Conditioner / Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Bootstrap-operated floating high-side channel
- Maximum operating voltage +250V
- Compatible with 3.3/5V input logic
- dVs/dt immunity up to ±50 V/ns
- Vs negative bias capability down to -9V
- Gate drive voltage range 5V to 20V
- High- and low-side supply 4.5V UVLO
- High- and low-side input/output in-phase logic
- Cross-conduction prevention dead-time logic
- Dead time setting 200ns
- Propagation delay matched
- Turn-on/turn-off propagation delay Ton/Toff = 150 ns/120ns
- Delay matching time <50ns
- Wide temperature range -40~125℃
- Output stage source/sink current capability 1.5A/1.8A
- RoHS compliant
