GB490H
1/1 Transceiver Full RS422, RS485 SOP-8
SOP-8ROHS CompliantActive

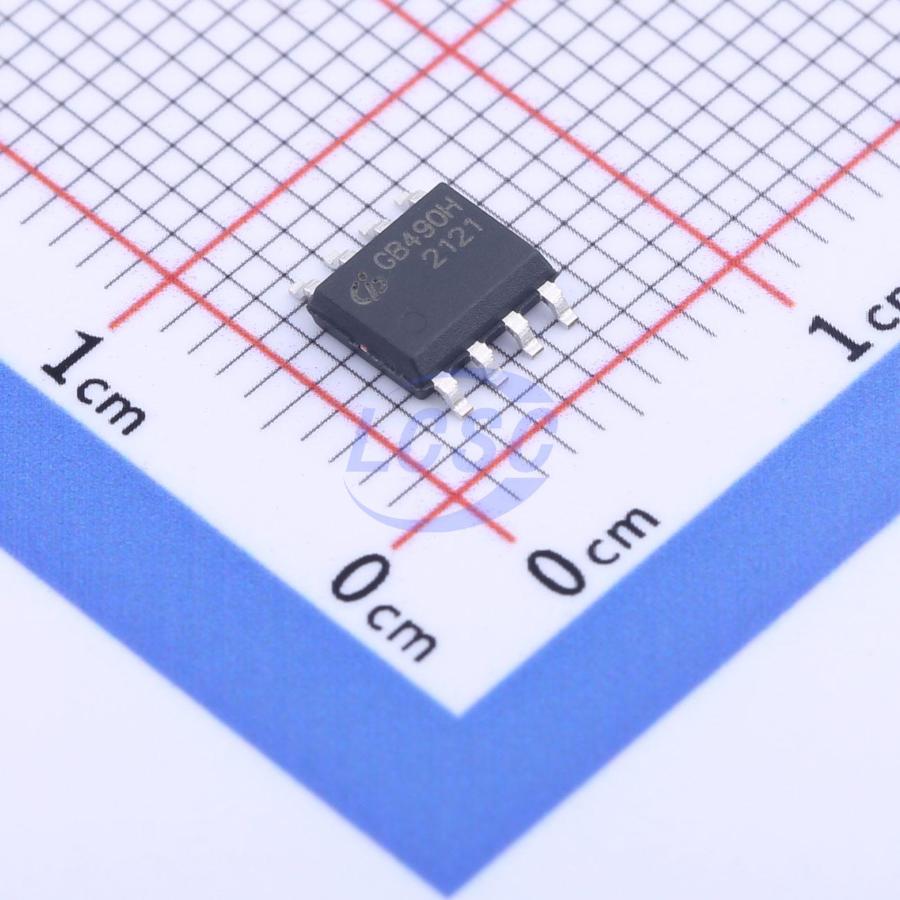

GB490H RS422 Interface
- Manufacturer
- NJGW
- Manufacturer part #
- GB490H
- Store part #
- C2932177
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,010 in stock
#C2932177
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.60 | ₹105.60 |
| 10+ | ₹88.65 | ₹886.50 |
| 30+ | ₹80.17 | ₹2,405.10 |
| 100+ | ₹71.92 | ₹7,192.00 |
| 500+ | ₹52.15 | ₹26,075.00 |
| 1,000+ | ₹49.55 | ₹49,550.00 |
1 × ₹105.60
₹105.60
excl. GST
₹124.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GB490H
₹105.60 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3.3V;5V
- Data Rate
- 16Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.233 g
Overview
GB490H is a 3.3V/5V, full-duplex, ±15kV ESD-protected RS-485/RS-422 transceiver IC with one driver and one receiver. The bus features failsafe functionality, ensuring the receiver output remains high when the receiver inputs are open or shorted. The device supports error-free data transmission at 16Mbps, with a receiver input impedance of 1/8 unit load, allowing up to 256 transceivers on the bus for full-duplex communication. All driver outputs provide ±15kV human body model ESD protection. Available in an 8-pin SO package, operating over a temperature range of -40°C to +125°C.
Applications
- Lighting systems
- Energy meters
- Industrial control
- Industrial motor drives
- Automatic HVAC systems
Key features
- 3.3V/5V supply voltage
- Error-free data transmission up to 16Mbps
- ±15kV HBM ESD protection on communication ports
- Fail-safe function
- 1/8 unit load, up to 256 transceivers on the same bus
- 8-pin SO package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WS3077EESA#C19078072NJGW · SOP8 | NJGW | SOP8 | 567 | ₹114.72 · 567 in stock | View |
