NJGWDatasheet (PDF)

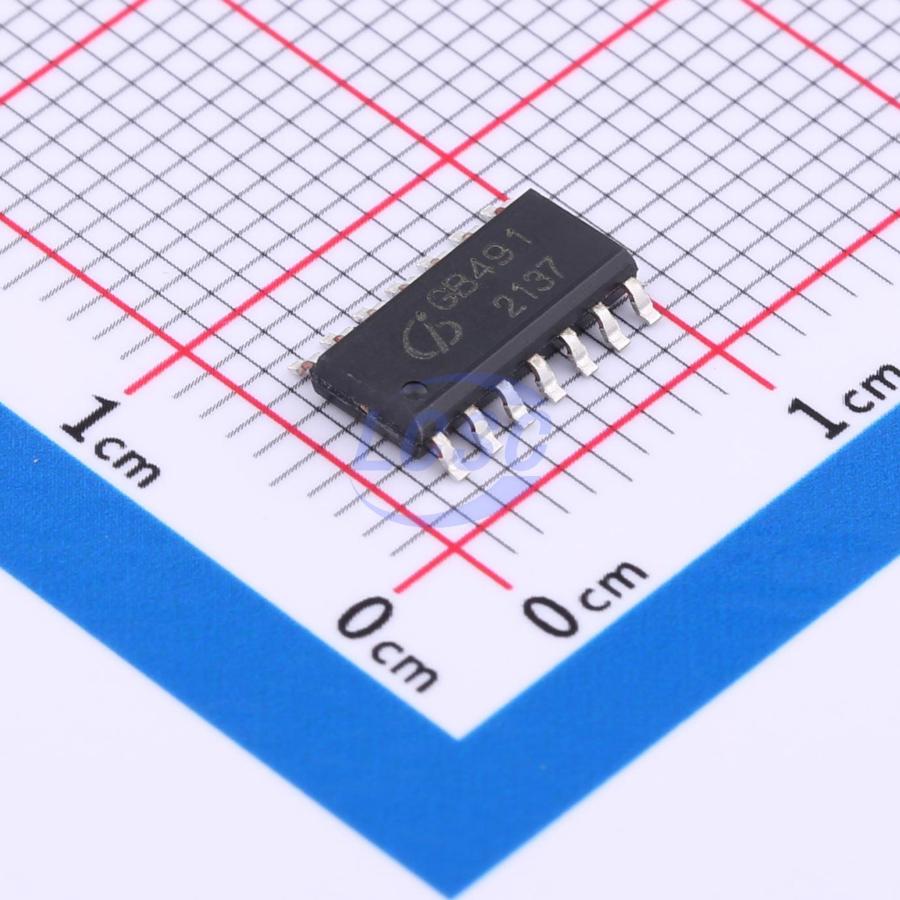

GB491
1/1 Transceiver Full RS422, RS485 SOP-14
SOP-14ROHS CompliantActive
GB491 15kV ESD Protection, Full-Duplex, Fail-safe, GEC RS-485/RS-422 Transceivers
- Manufacturer
- NJGW
- Manufacturer part #
- GB491
- Store part #
- C2691430
- Package / case
- SOP-14
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,947 in stock
#C2691430
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.18 | ₹105.18 |
| 10+ | ₹86.27 | ₹862.70 |
| 30+ | ₹76.93 | ₹2,307.90 |
| 100+ | ₹67.59 | ₹6,759.00 |
| 500+ | ₹53.46 | ₹26,730.00 |
| 1,000+ | ₹50.42 | ₹50,420.00 |
1 × ₹105.18
₹105.18
excl. GST
₹124.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GB491
₹105.18 for 1 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 800uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
GB491 is a 3.3V/5V full-duplex RS-485/RS-422 transceiver IC with one integrated driver and one receiver. The bus features fault protection — when the receiver input is open or shorted, the output defaults to a logic high. The device supports error-free data transmission at 10Mbps, with a receiver input impedance of 1/8 unit load, allowing up to 256 transceivers to be connected on the bus for full-duplex communication. All driver outputs and receiver inputs are protected against ±15kV ESD (Human Body Model). The device is available in a 14-pin SO package and operates over a temperature range of -40°C to +125°C.
Applications
- Lighting systems
- Energy meters
- Industrial control
- Industrial motor drives
- Automatic HVAC systems
Key features
- 3.3V/5V supply voltage
- Error-free data transmission at 10Mbps
- ±15kV HBM ESD protection on communication ports
- Fail-safe feature
- 1/8 unit load, up to 256 transceivers on the same bus
- 14-pin SO package
