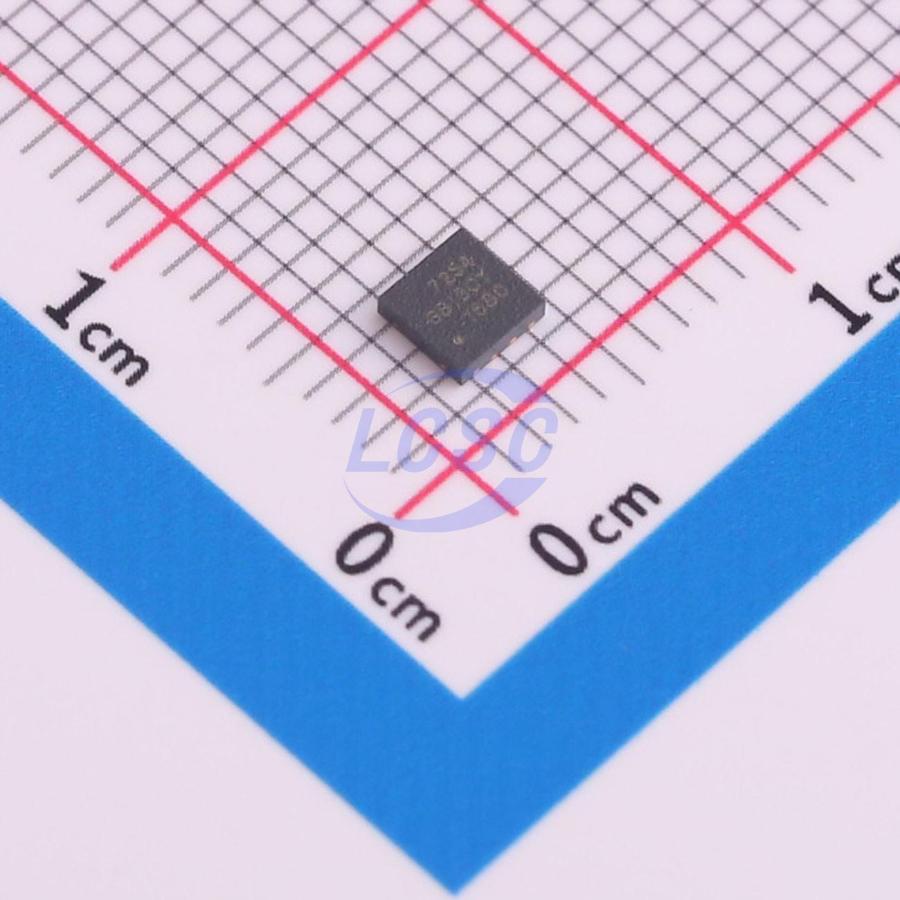

GBI7254NMCR
Low Side Gate Driver IC MOSFET IGBT DFN-8
Dual Channel High Speed Low Side Driver with Negative Input Capability
- Manufacturer
- GOSEMICON
- Manufacturer part #
- GBI7254NMCR
- Store part #
- C6152383
- Package / case
- DFN-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,979 in stock
#C6152383
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹19.77 | ₹19.77 |
| 10+ | ₹19.24 | ₹192.40 |
| 30+ | ₹18.89 | ₹566.70 |
| 100+ | ₹18.54 | ₹1,854.00 |
1 × ₹19.77
₹19.77
excl. GST
₹23.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GBI7254NMCR
₹19.77 for 1 + GST
Specifications
- Input Logic Level - Low
- 900mV~1.2V
- Low Level Delay Time
- 14ns
- High Level Delay Time
- 15ns
- Quiescent Current
- 124uA
- Input Logic Level - High
- 1.9V~2.35V
- Voltage - Supply
- 4.5V~24V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 8ns
- Fall Time
- 6ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.125 g
Overview
GBI7254 and GBI7254C are dual-channel high-speed low-side gate drivers capable of providing 5A peak source and sink current with rail-to-rail drive capability for MOSFET, IGBT, and GaN power devices. The devices feature a minimum 14ns input-to-output propagation delay and a 24V supply rail, making them suitable for high-frequency power converter applications. The inputs accept negative voltages as low as -5V to enhance input noise immunity. Wide input hysteresis ensures compatibility with TTL and CMOS low-voltage logic. Each channel employs a non-overlapping driver design to prevent shoot-through in the output stage. The operating temperature range is -40℃ to 125℃. GBI7254 and GBI7254C are available in an SOIC-8L package.
Applications
- Power MOSFET gate drivers
- IGBT gate drivers
- Switching power supplies
- Motor control
- Solar power generation
Key features
- 5A peak source and 5A peak sink current
- 4.5V to 24V wide supply voltage range
- Negative input voltage capability down to -5V
- Fast propagation delay: 14ns
- Fast rise and fall times: 8ns and 6ns
- TTL input logic threshold
- Undervoltage lockout protection
- Low quiescent current: 64uA
- Output low when input is floating
- Independent enable pin per channel (GBI7254)
- SOIC-8L package
