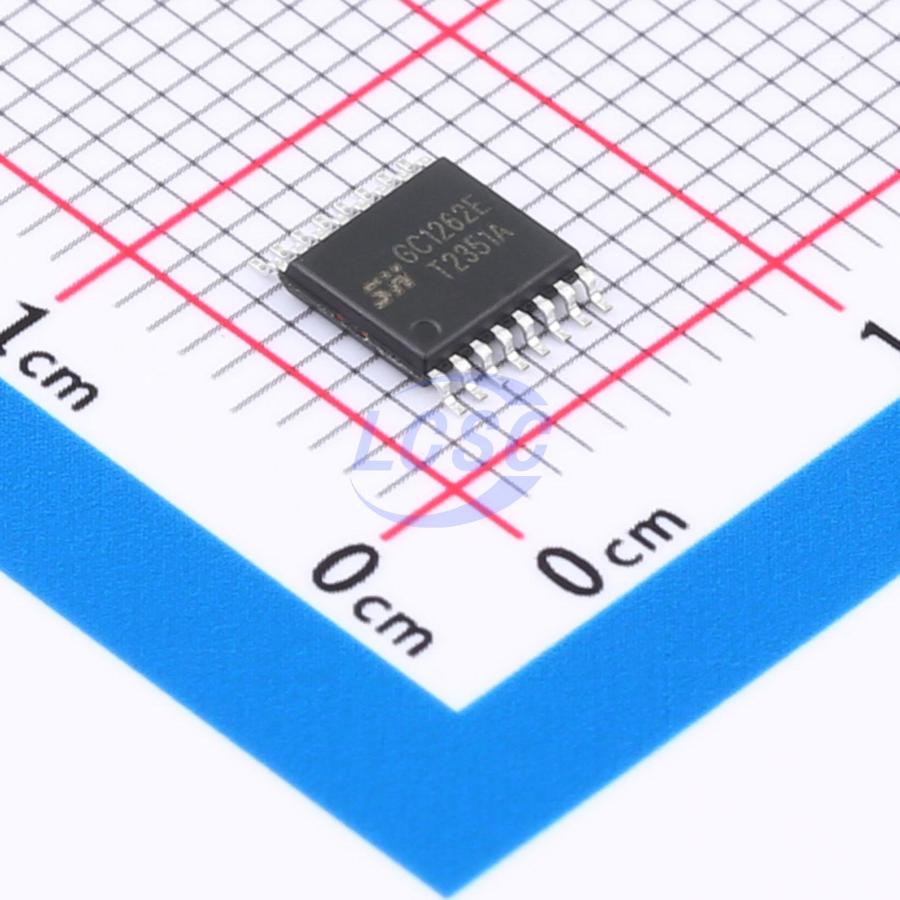

GC1262E
3V~20V eTSSOP-16L Motor Drivers, Controllers RoHS
Single-coil brushless DC motor driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC1262E
- Store part #
- C16197190
- Package / case
- eTSSOP-16L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,666 in stock
#C16197190
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.07 | ₹45.07 |
| 10+ | ₹39.31 | ₹393.10 |
| 30+ | ₹36.74 | ₹1,102.20 |
| 100+ | ₹33.75 | ₹3,375.00 |
| 500+ | ₹32.25 | ₹16,125.00 |
| 1,000+ | ₹31.39 | ₹31,390.00 |
1 × ₹45.07
₹45.07
excl. GST
₹53.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GC1262E
₹45.07 for 1 + GST
Specifications
- Drive Type
- Single Phase
- Features
- Motor stall protection;Motor speed indication
- Voltage - Supply
- 3V~20V
- Operating Temperature
- -40℃~+105℃
- Output Current
- 1.55A
- Peak Current
- 1.65A
- RDS(on)
- 400mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
GC1262E/S is a motor driver for single-coil brushless DC motors. It features a highly efficient direct PWM control method to regulate BLDC motor speed. The device integrates minimum speed limit mode, adjustable speed slope control mode, soft-start mode, fan tachometer, lock protection, auto-restart, TSD, OCP, and noise control mode. The noise control mode optimizes low-noise performance via a resistor on the SQ pin to meet varying requirements, enabling low-noise and low-vibration operation of BLDC fan motors. The minimum speed mode allows the minimum motor speed to be set by presetting the RMIN voltage. The adjustable speed slope control mode allows the fan speed slope to be configured by presetting the SET voltage. Soft-start suppresses high peak inrush current, ensuring reliable startup even at low speeds. FG and RD outputs are provided.
Applications
- PC power supply cooling fans
- CPU Cooler/VGA cooling fans
- PWM speed control fans
Key features
- Single-phase full-wave driver
- Adjustable soft start and soft restart
- Wide supply voltage range: 3 to 18V
- PWM direct fan speed control
- Adjustable minimum fan speed limit (GC1262E)
- Adjustable minimum stall PWM (GC1262S)
- Adjustable speed slope control
- Built-in over-temperature, over-current, locked-rotor protection and auto-restart
- Built-in Hall bias
- Fan speed feedback signal FG output
- Rotation detection signal RD output
- eTSSOP16L package
