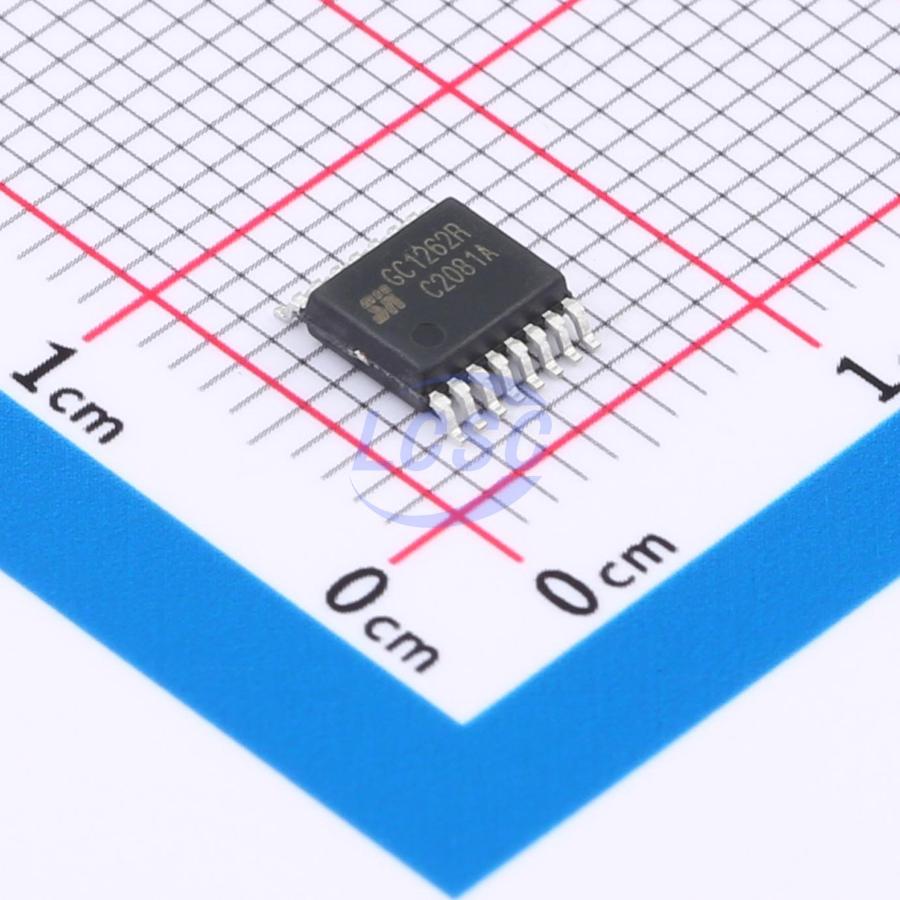

GC1262R
3V~20V SSOP-16EP Motor Drivers, Controllers RoHS
Single-coil brushless DC motor driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC1262R
- Store part #
- C16197189
- Package / case
- SSOP-16EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,951 in stock
#C16197189
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹34.35 | ₹34.35 |
| 10+ | ₹29.88 | ₹298.80 |
| 30+ | ₹27.89 | ₹836.70 |
| 100+ | ₹25.56 | ₹2,556.00 |
| 500+ | ₹24.40 | ₹12,200.00 |
| 1,000+ | ₹23.74 | ₹23,740.00 |
1 × ₹34.35
₹34.35
excl. GST
₹40.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GC1262R
₹34.35 for 1 + GST
Specifications
- Drive Type
- Single Phase
- Features
- Motor stall protection;Motor speed indication
- Voltage - Supply
- 3V~20V
- Operating Temperature
- -40℃~+105℃
- Output Current
- 1.55A
- Peak Current
- 1.55A
- RDS(on)
- 400mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.196 g
Overview
GC1262R/S is a motor driver for single-coil brushless DC motors. It features high-efficiency direct PWM control to regulate BLDC motor speed. The device integrates minimum speed limit mode, adjustable speed slope control mode, soft-start mode, fan tachometer, lock protection, auto-restart, TSD, OCP, and noise control mode. The noise control mode optimizes low-noise performance via a resistor on the SQ pin to meet different requirements, enabling low-noise and low-vibration operation of BLDC fan motors. The minimum speed mode allows setting the minimum motor speed by presetting the RMIN voltage. The adjustable speed slope control mode allows setting the fan speed slope by presetting the SET voltage. Soft-start suppresses high peak startup current and ensures reliable startup even at low speeds. FG and RD outputs are provided. Single-phase full-wave driver - Adjustable soft-start and soft auto-restart - Wide supply voltage input range: 3 to 18V - Direct PWM fan speed control - Adjustable minimum fan speed limit (GC1262R) - Adjustable minimum stall PWM (GC1262S) - Adjustable speed slope control - Built-in over-temperature and over-current protection - Locked-rotor protection and auto-restart - Built-in Hall bias - Fan speed feedback signal FG output - Rotation detection signal RD output - SSOP16-EP package
Applications
- Automotive infotainment
- HUD projector adjustment
- Electric shift knob
- On-board charger
Key features
- Adjustable soft-start and soft-restart
- Wide supply voltage range: 3 to 18V
- PWM direct fan speed control
- Adjustable minimum fan speed limit (GC1262R)
- Adjustable minimum stall PWM (GC1262S)
- Adjustable speed slope control
- Built-in over-temperature and over-current protection
- Locked-rotor protection with auto-restart
- Built-in Hall bias
- Fan speed feedback signal FG output
- Rotation detection signal RD output
- SSOP16-EP package
