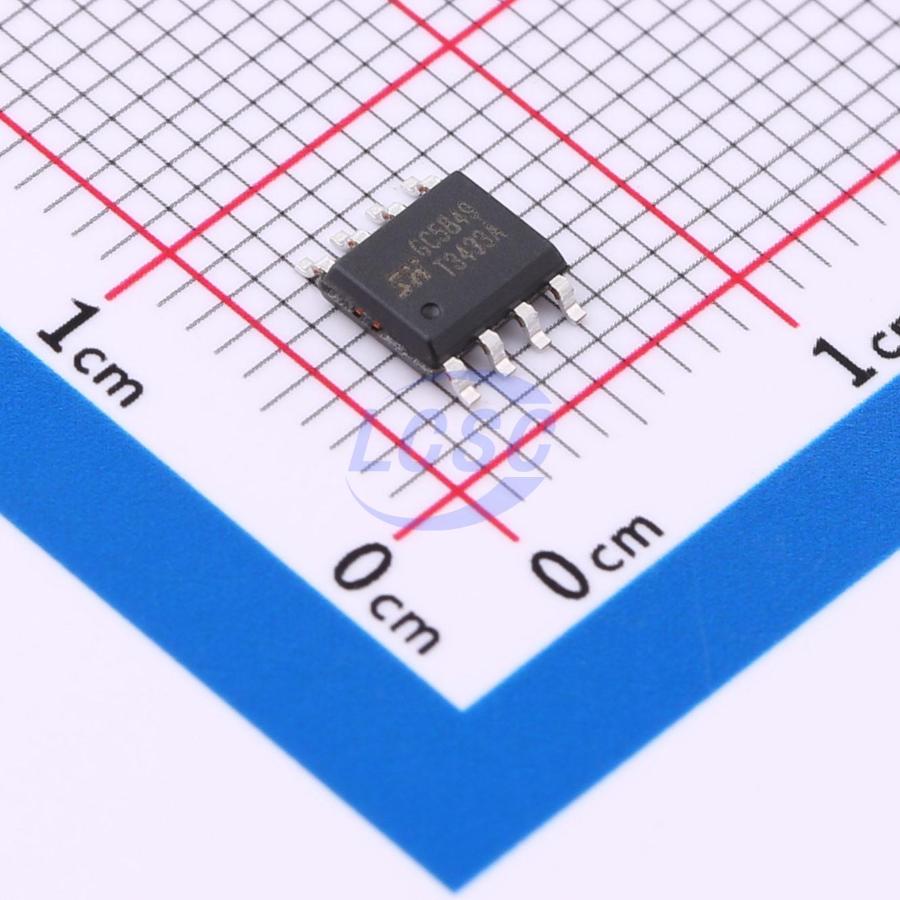

SX-globalchipDatasheet (PDF)
GC5849
4V~20V SOP-8L Motor Drivers, Controllers RoHS
SOP-8LROHS CompliantActive
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC5849
- Store part #
- C16197202
- Package / case
- SOP-8L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,773 in stock
#C16197202
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.85 | ₹80.85 |
| 10+ | ₹73.01 | ₹730.10 |
| 30+ | ₹68.83 | ₹2,064.90 |
| 100+ | ₹63.94 | ₹6,394.00 |
| 500+ | ₹61.69 | ₹30,845.00 |
| 1,000+ | ₹60.81 | ₹60,810.00 |
1 × ₹80.85
₹80.85
excl. GST
₹95.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GC5849
₹80.85 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Features
- Motor stall protection;Motor speed indication
- Technology
- Yes
- Voltage - Supply
- 4V~20V
- Operating Temperature
- -40℃~+100℃
- Supply Current (Iq)
- 1uA
- Output Current
- 1A
- Number of Half Bridges
- 3
- RDS(on)
- 900mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
GC5845 and GC5849 are three-phase motor drivers with integrated sinusoidal drive functionality, designed to reduce audible noise and vibration in medium-power fans. The device provides a speed input pin for motor speed control, eliminating the need for an external variable power supply and reducing system cost. Alternatively, motor speed can also be regulated via power supply modulation as low as 4V.
Applications
- CPU cooling fan
- VGA cooling fan
- Water pump motor
Key features
- 180° sinusoidal drive for low audible noise
- High-efficiency control algorithm support
- Sensorless operation
- Analog speed input (GC5845)
- PWM speed input (GC5849)
- Wide supply voltage range: 4V ~ 20V
- FG speed output
- Locked-rotor detection
- Thermal shutdown, overcurrent protection, short-circuit protection
- Soft start
- eSOP8 package
