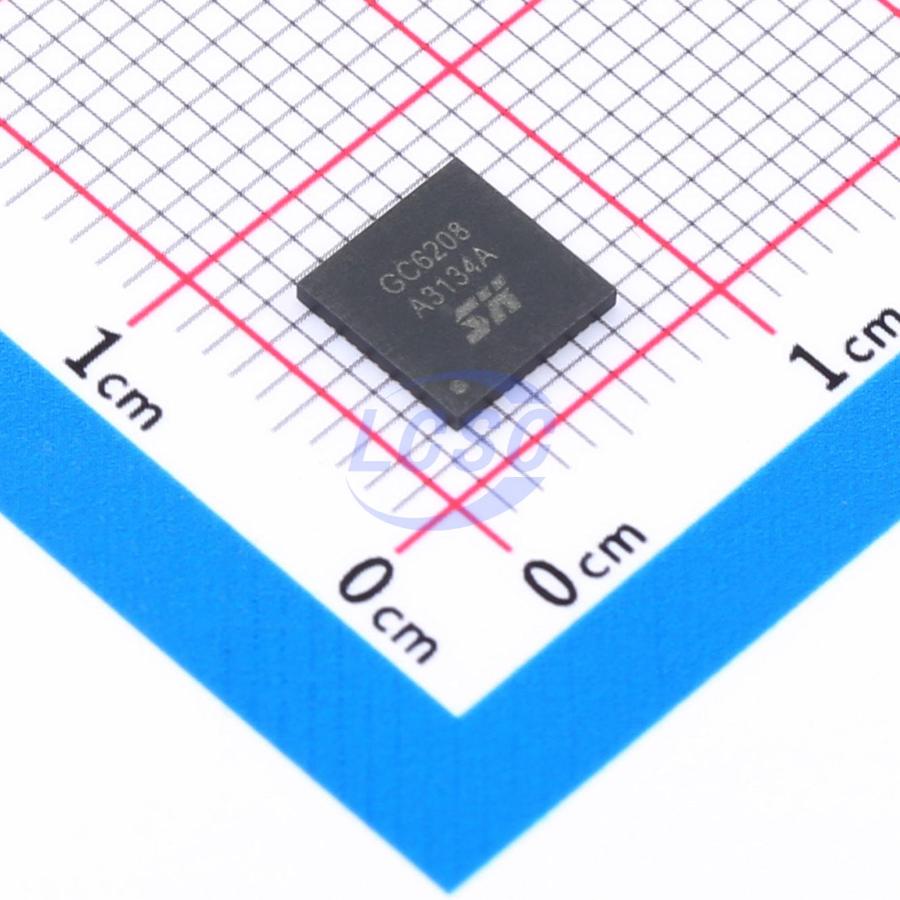

SX-globalchip

GC6208

QFN-44 Motor Drivers, Controllers RoHS

QFN-44ROHS CompliantActive

Lens Driver IC for camcorder and security-camera

Manufacturer: SX-globalchip
Manufacturer part #: GC6208
Store part #: C16197206
Package / case: QFN-44
Category: Motor Drivers, Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,810 in stock

#C16197206

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹120.40	₹120.40
10+	₹108.33	₹1,083.30
30+	₹101.75	₹3,052.50
100+	₹94.47	₹9,447.00
500+	₹91.10	₹45,550.00
1,000+	₹89.50	₹89,500.00

Quantity (min 1)

1 × ₹120.40

₹120.40

excl. GST

₹142.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GC6208

₹120.40 for 1 + GST

Specifications

Drive Type: Bipolar Driver
Number of H-bridges: 2
Features: Motor step-out prevention function;Over temperature protection;Under-voltage lockout
Technology: Yes
Interface: SPI
Operating Temperature: -40℃~+100℃
Output Current: 250mA
Step Resolution: 256
Control Voltage: 2.7V~3.6V
RDS(on): 1.5Ω
Motor Drive Voltage(Vm): 3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.177 g

Overview

GC6208 is a lens motor driver IC for cameras and security cameras. The device integrates an iris DC motor driver controlled by a PID system, along with two STM driver channels for zoom and focus control.

Applications

Camera
Security cameras
Consumer products
Robotics
Medical devices

Key features

Built-in DC motor driver for iris controller
Built-in dual stepper motor drivers for zoom and focus
256-microstep drive technology for stepper motors, ultra-low noise characteristics
Dual open-drain outputs for LED driving
Over-temperature protection
QFN44 (06x06) package
