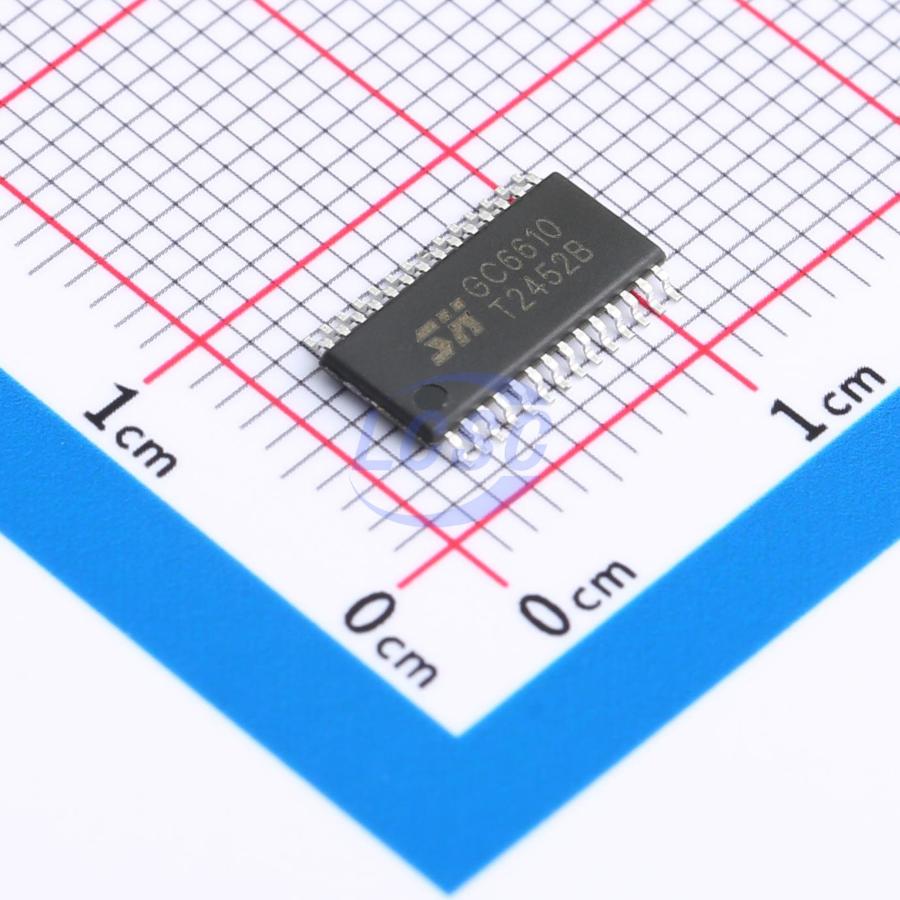

GC6610
TSSOP-28L Motor Drivers, Controllers RoHS
Micro-step silent motor driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC6610
- Store part #
- C16197209
- Package / case
- TSSOP-28L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,065 in stock
#C16197209
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹242.60 | ₹242.60 |
| 10+ | ₹204.49 | ₹2,044.90 |
| 30+ | ₹180.64 | ₹5,419.20 |
| 100+ | ₹156.26 | ₹15,626.00 |
| 500+ | ₹145.24 | ₹72,620.00 |
| 1,000+ | ₹140.36 | ₹1,40,360.00 |
1 × ₹242.60
₹242.60
excl. GST
₹286.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GC6610
₹242.60 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Overvoltage protection;Built-in charge pump;Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Low voltage protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- Yes
- Interface
- STEP/DIR;UART
- Operating Temperature
- -40℃~+125℃
- Step Resolution
- 8;2;4;16
- Output Current
- 2A
- Control Voltage
- 4.7V~36V
- RDS(on)
- 400mΩ
- Motor Drive Voltage(Vm)
- 4.7V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
GC6610 is an ultra silent two-phase stepping motor driving chip with built-in step driving mode with maximum 256 micro step, ultra silent and low vibration. The chip can work in a wide voltage range of 4~36V, with rms current to 2A or peak current to 4A. With integrated automatic gain control loop (AGC) circuit, motor torque automatic adjusted and compensated for variable load or speed to ensure consistent torque. Automatic power saving function is integrated when the motor is hold on for fit time. Comprehensive output protection, including over temperature protection, under voltage protection, etc.
Applications
- White goods
- Office machines
- 3D printer
- Medical apparatus and instruments
- PTZ control
Key features
- Two phase stepping motor, maximum rms current up to 2A or peak current to 4A
- Step / dir interface, max 256-micro step control model, resolution is selected by MS1,MS2
- Power supply range: 4V ~ 36V
- With ultra-low motor noise, AGC can automatically compensate torque in a wide speed range
- Automatic power saving function when the motor is held
- Over temperature protection, under voltage protection
- Error and state indication pin FLAG
- TSSOP28pp package
- UART one wire interface
