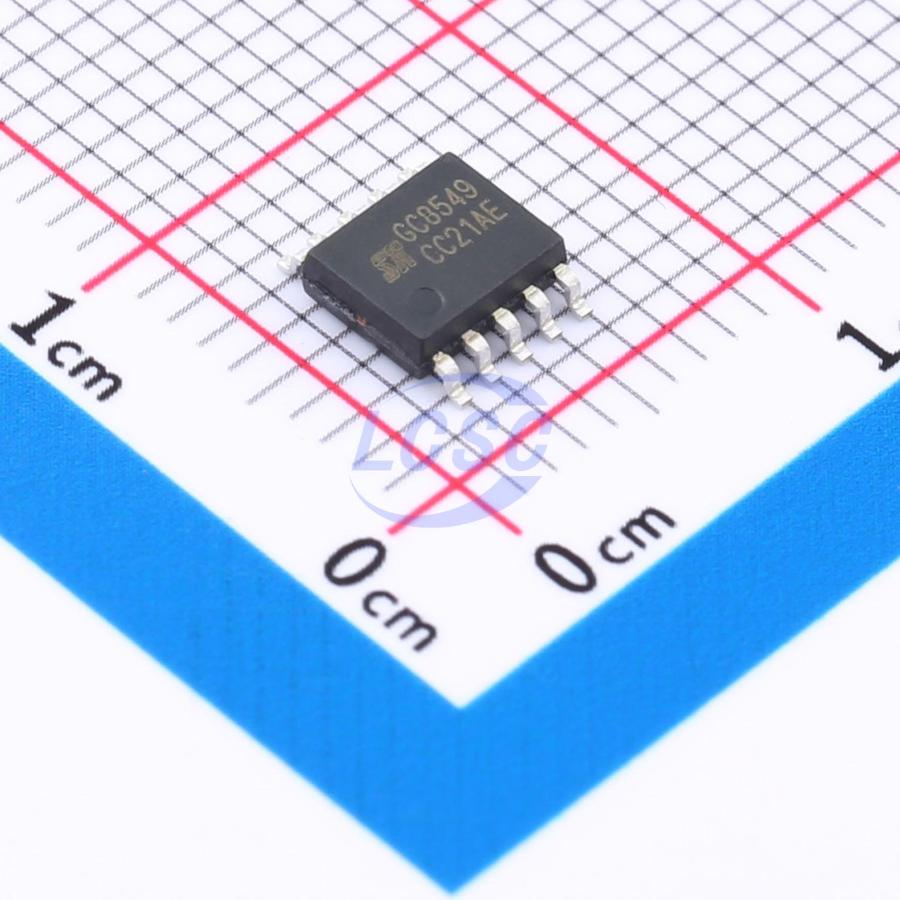

GC8549
SSOP-10 Motor Drivers, Controllers RoHS
12V dual channel H bridge driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC8549
- Store part #
- C16197216
- Package / case
- SSOP-10
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,328 in stock
#C16197216
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.05 | ₹63.05 |
| 10+ | ₹50.59 | ₹505.90 |
| 30+ | ₹44.26 | ₹1,327.80 |
| 100+ | ₹38.13 | ₹3,813.00 |
| 500+ | ₹34.33 | ₹17,165.00 |
| 1,000+ | ₹32.52 | ₹32,520.00 |
1 × ₹63.05
₹63.05
excl. GST
₹74.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GC8549
₹63.05 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Operating Temperature
- -40℃~+100℃
- Step Resolution
- 1
- Output Current
- 1.5A
- RDS(on)
- 350mΩ
- Motor Drive Voltage(Vm)
- 3.8V~12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.182 g
Overview
GC8549 is a dual-channel 12V DC motor driver IC, providing an integrated motor drive solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device is typically used to drive two DC motors or one stepper motor. The GC8549 operates from a supply voltage of 3.8~12V, delivering up to 1.5A continuous output current per channel or 3A peak current. It features a sleep mode with quiescent current as low as 20μA. The GC8549 offers a PWM (IN/EN) input interface compatible with industry-standard devices, and provides over-temperature protection, under-voltage protection, short-circuit protection, and over-current protection. The GC8549 integrates an LDO, eliminating the need for a separate logic supply, with inputs compatible with both 3.3V and 5V logic levels.
Applications
- Cameras
- Digital Single-Lens Reflex (DSLR) Lenses
- Toys
- Robotics
- Shared Bicycle Locks
- Water Meter Valves
- Medical Devices
Key features
- H-Bridge motor driver
- Supply voltage 3.8~12V
- Low on-resistance (HS+LS) 450mΩ
- 1.5A continuous drive output current
- PWM (IN/EN) input mode
- Compatible with 3.3V, 5V logic input
- Built-in over-temperature protection
- Built-in H-bridge power short-to-supply and short-to-GND protection
- Low-current sleep mode (nA-level, EN=0)
