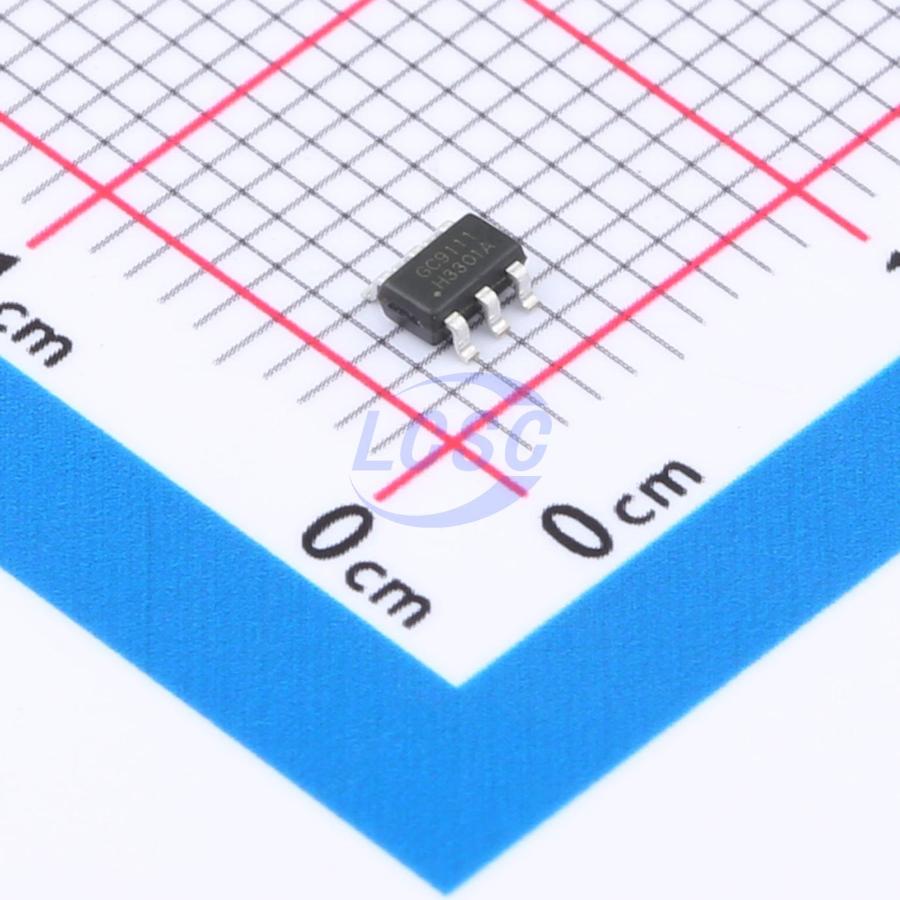

GC9111
480mΩ 2V~6V 1.1A SOT23-6 Gate Drivers RoHS
Low-voltage single-channel full-bridge driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC9111
- Store part #
- C16197221
- Package / case
- SOT23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,615 in stock
#C16197221
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.43 | ₹57.15 |
| 50+ | ₹9.04 | ₹452.00 |
| 150+ | ₹7.85 | ₹1,177.50 |
| 500+ | ₹6.95 | ₹3,475.00 |
| 3,000+ | ₹6.23 | ₹18,690.00 |
| 6,000+ | ₹5.86 | ₹35,160.00 |
5 × ₹11.43
₹57.15
excl. GST
₹67.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GC9111
₹57.15 for 5 + GST
Specifications
- Features
- Active braking function
- Quiescent Current
- 1uA
- RDS(on)
- 480mΩ
- Voltage - Supply
- 2V~6V
- Peak Current
- 2.2A
- Output Current
- 1.1A
- Operating Temperature
- -40℃~+100℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
GC9111 is a low-voltage 5V full-bridge driver IC, providing an integrated motor drive solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. GC9111 delivers up to 1.1A continuous output current and operates from a supply voltage of 2~6V. GC9111 features a PWM (IN/IN) input interface, compatible with industry-standard devices, and includes over-temperature protection. GC9111 is available in a SOT23-6 package.
Applications
- Camera digital single-lens reflex (DSLR) lenses
- Toys
- Robotics
- Shared bicycle locks
- Water/gas meter valves
- Medical devices
- Electric toothbrushes
Key features
- H-bridge motor driver
- Supply voltage 2~6V
- Low on-resistance (HS+LS) 480 mΩ
- 1.1A continuous drive output current
- PWM (IN1/IN2) input mode
- Built-in over-temperature protection
- Low-current sleep mode (nA-level, [IN1=IN2=0])
