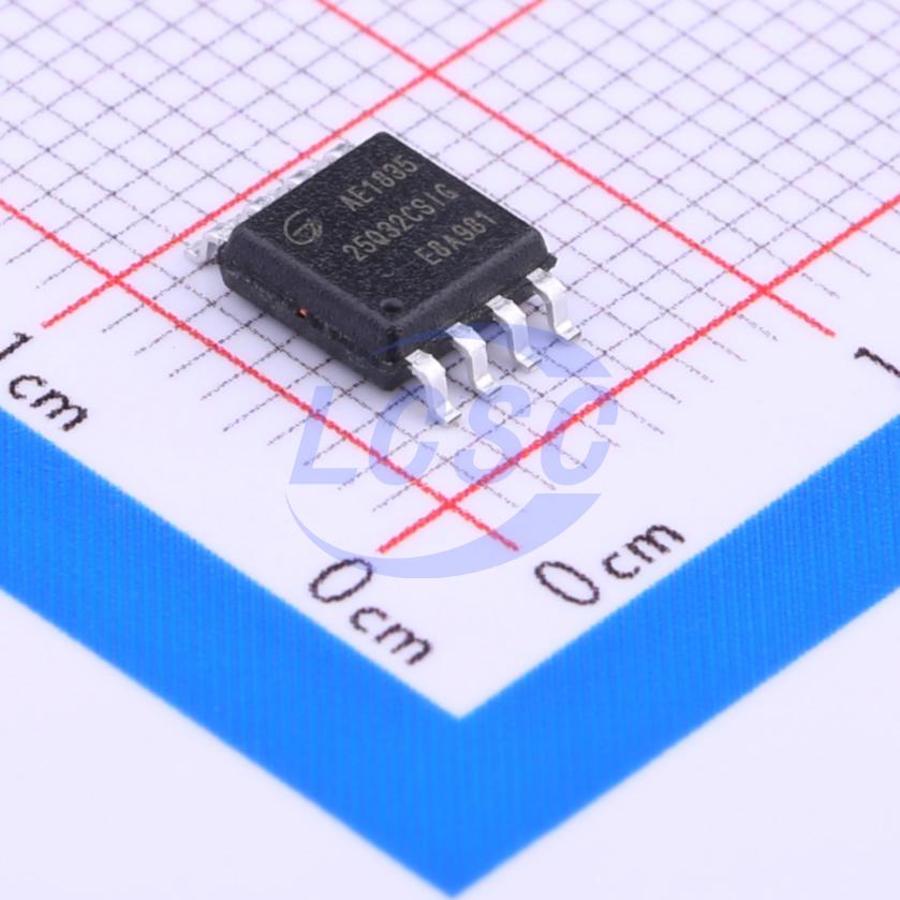

GD25Q32CSIGR

The GD25Q32C (32M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#). The Dual I/O data is transferred with speed of 240Mbits/s and the Quad I/O & Quad output data is transferred with speed of 480Mbits/s.

Key features

• 32M-bit Serial Flash
• 4096K-byte
• 256 bytes per programmable page
• Standard, Dual, Quad SPI
• Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#
• Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#
• Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
• High Speed Clock Frequency
• 120MHz for fast read with 30PF load
• Dual I/O Data transfer up to 240Mbits/s
• Quad I/O Data transfer up to 480Mbits/s
• Continuous Read With 8/16/32/64-byte Wrap
• Software/Hardware Write Protection
• Write protect all/portion of memory via software
• Enable/Disable protection with WP# Pin
• Top or Bottom, Sector or Block selection
• Cycling endurance
• Minimum 100,000 Program/Erase Cycles
• Data retention
• 20-year data retention typical
• Program/Erase Speed
• Page Program time: 0.6ms typical
• Sector Erase time: 50ms typical
• Block Erase time: 0.15/0.25s typical
• Chip Erase time: 15s typical
• Flexible Architecture
• Sector of 4K-byte
• Block of 32/64k-byte
• Low Power Consumption
• 20mA maximum active current
• 1uA maximum power down current
• Advanced Security Features
• 3*1024 -Byte Security Registers With OTP Locks
• Discoverable parameters(SFDP) register
• Single Power Supply Voltage
• Full voltage range: 2.7~3.6V
• Package Information
• SOP8 (208mil)
• SOP8 (150mil)
• VSOP8 (208mil)
• DIP8 (300mil)
• WSON8 (5*6mm)
• USON8 (3*3mm)
• USON8 (4*3mm)
• TFBGA-24(6*4 ball array)
• TFBGA-24(5*5 ball array)
