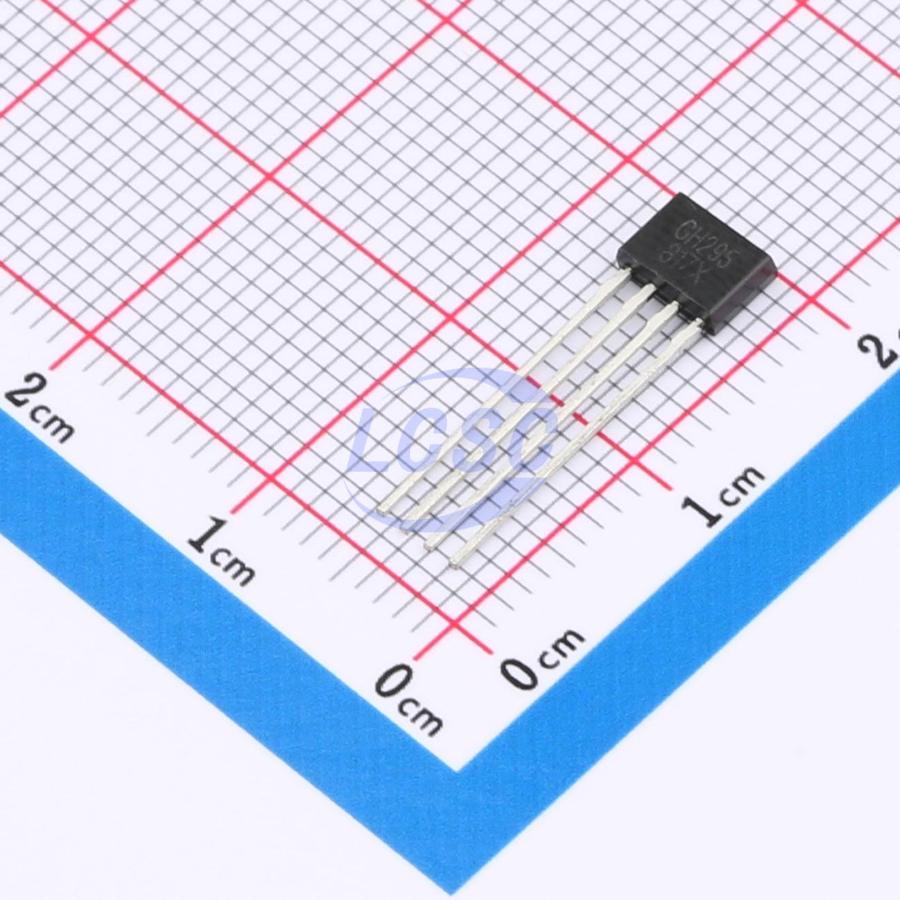

GH295
3.5V~30V TO-94 Motor Drivers, Controllers RoHS
Dual-coil Hall motor drive circuit with FG output
- Manufacturer
- GoChip Elec Tech (Shanghai)
- Manufacturer part #
- GH295
- Store part #
- C266240
- Package / case
- TO-94
- Category
- Motor Drivers, Controllers
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,099 in stock
#C266240
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.99 | ₹39.99 |
| 10+ | ₹35.14 | ₹351.40 |
| 30+ | ₹33.02 | ₹990.60 |
| 100+ | ₹30.48 | ₹3,048.00 |
| 500+ | ₹29.42 | ₹14,710.00 |
| 1,000+ | ₹28.58 | ₹28,580.00 |
| 2,000+ | ₹28.37 | ₹56,740.00 |
| 4,000+ | ₹27.94 | ₹1,11,760.00 |
1 × ₹39.99
₹39.99
excl. GST
₹47.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
GH295
₹39.99 for 1 + GST
Specifications
- Drive Type
- Single Phase
- Features
- Motor stall protection;Motor speed indication
- Voltage - Supply
- 3.5V~30V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.3mA
- Output Current
- 500mA
- Peak Current
- 1.1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
GH295 is a driver IC for 12V and 24V dual-coil DC motor fans. The chip integrates a Hall sensor, two output driver circuits, and a frequency generation output circuit, with built-in over-temperature protection, locked-rotor protection, and auto-recovery startup circuitry. When the chip detects that the motor fan has stopped for 0.5 seconds, it automatically shuts off both outputs for 4.0 seconds, then restarts the circuit to check whether the motor fan is spinning. If rotation resumes, the chip returns to normal operation; otherwise, if the motor fan does not rotate within 0.5 seconds, the chip shuts off again for 4.0 seconds. This cycle repeats until the motor fan operates normally. This feature effectively prevents coil damage caused by overheating due to locked-rotor conditions. The GH295 supports a maximum startup current of 900mA and a maximum continuous output current of 500mA, available in a through-hole SIP-4L (TO-94) package.
Applications
- Dual-coil DC brushless motor fan
- Contactless switch
- Position control
- Safety alarm device
- Isolation detection
- Speed measurement
Key features
- Operating voltage range: 3.5~30V
- Built-in Hall sensor and driver circuit
- FG frequency generation output
- Built-in reverse polarity protection circuit
- Built-in over-temperature protection circuit
- Built-in locked-rotor protection circuit
- Auto-recovery restart
- Output overvoltage clamp protection
- Maximum output current 500mA
