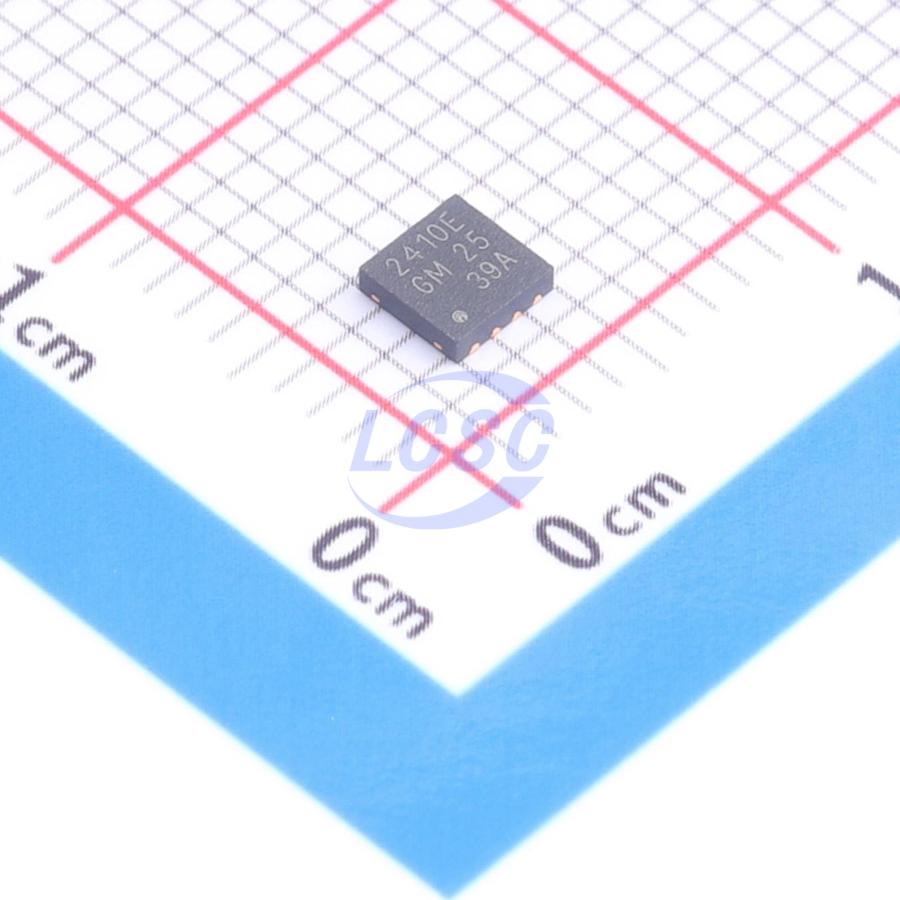

GATEMODE

GM2410ENA

3V~5.5V Transceiver 500Kbps 256 DFN-8-EP(3x3) Drivers, Receivers, Transceivers

DFN-8-EP(3x3)RoHSActive

Manufacturer: GATEMODE
Manufacturer part #: GM2410ENA
Store part #: C52164555
Package / case: DFN-8-EP(3x3)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,459 in stock

#C52164555

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹106.26	₹106.26
10+	₹86.09	₹860.90
30+	₹75.90	₹2,277.00
100+	₹65.71	₹6,571.00
500+	₹57.47	₹28,735.00
1,000+	₹54.22	₹54,220.00

Quantity (min 1)

1 × ₹106.26

₹106.26

excl. GST

₹125.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GM2410ENA

₹106.26 for 1 + GST

Specifications

Voltage - Supply: 3V~5.5V
Type: Transceiver
Data Rate: 500Kbps
Operating Temperature: -40℃~+125℃
Number of Nodes: 256
ESD Protect: ±16kV
Communication Mode: Half-Duplex
Number of Drivers: 1
Features: Tx/Rx enable;Enable shutdown;Fail-safe;Hot-swap protection;Overcurrent Protection;Automatic fault recovery;Thermal shutdown protection;Low-power mode
Number of Receivers: 1
Quiescent Supply Current: 600uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

GM2410 is a half-duplex RS-422/RS-485 transceiver with ±70V fault protection, operating from a single 3V to 5.5V supply. The bus interface pins are protected against overvoltage conditions in all operating modes, ensuring robust communication in demanding industrial environments. These devices integrate IEC ESD protection, eliminating the need for external system-level protection components. The extended ±25V input common-mode range guarantees reliable data communication over long cable lengths and/or in the presence of large ground loop voltages. Enhanced 150mV receiver hysteresis ensures high noise immunity. In addition, the receiver failsafe feature guarantees a logic-high output when the inputs are open or shorted. GM2410 devices are available in compact MSOP8 and DFN8 packages, suitable for space-constrained applications. The device operates over an ambient air temperature range of -40°C to 125°C.

Applications

Motor drives
Factory automation and control
HVAC systems
Building automation
Grid infrastructure

Key features

Meets or exceeds TIA/EIA-485A and TIA/EIA-422B standard requirements
Functional safety capable, with documentation to support functional safety system design
3V to 5.5V supply voltage
Differential output voltage exceeds 2.1V at 5V supply, PROFIBUS compatible
Bus I/O protection: ±70V DC bus fault, ±16kV HBM ESD, ±12kV IEC 61000-4-2 contact discharge, ±12kV IEC 61000-4-2 air-gap discharge, ±4kV IEC 61000-4-4 fast transient burst
Half-duplex device
Extended ambient temperature range: -40°C to 125°C
Extended operating common-mode range: ±25V
Enhanced receiver hysteresis for improved noise immunity
Low power consumption: shutdown supply current < 2 μA, operating current < 1mA
Glitch-free power-up/power-down with hot-swap capability
Fail-safe protection for open, short-circuit, and idle bus conditions
Thermal shutdown protection
1/8 unit load (supports up to 256 bus nodes)
Compact MSOP8 and DFN8 packages for board space savings, or SOIC package for drop-in replacement compatibility
