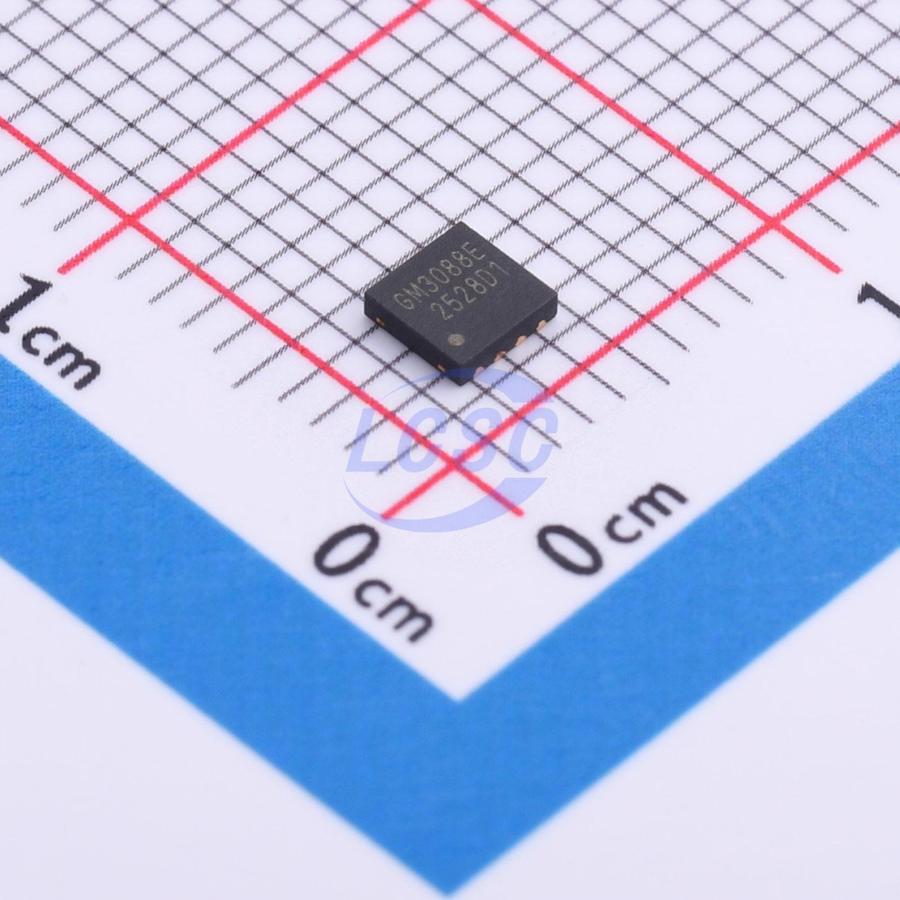

GM3088ENA

GM3088E/GM13088E are RS-485/RS-422 transceivers operating at 3.0~5.5V with ±15kV ESD protection, consisting of one driver and one receiver. These devices integrate a failsafe circuit that ensures the receiver output is a logic high when the receiver inputs are open or shorted. If all transmitters on the terminated bus are disabled (high-impedance state), the receiver also outputs a logic high. The GM13088E features hot-plug capability to eliminate false transitions on the bus during power-up or hot insertion. The GM3088E/GM13088E support data rates up to 16Mbps. These devices are well-suited for half-duplex communication, with a supply current of only 0.5mA under no-load conditions or with the driver disabled at full load. The GM3088E/GM13088E receiver input impedance is 1/8 unit load, allowing up to 256 transceivers on the bus. These devices are available in SOP8, MSOP8, and DFN packages.

Applications

• Utility metering
• Lighting systems
• Industrial control
• Telecommunications
• Security systems

Key features

• Operating voltage range: 3.0~5.5V
• Enhanced ±15kV HBM ESD protection for RS-485/RS-422 I/O pins
• True fail-safe receiver with full EIA/TIA-485 standard compatibility
• Guaranteed data rate of 16Mbps
• Hot-swap input structure on DE and RE pins (GM13088E)
• Low-current shutdown mode
• Supports up to 256 transceivers on the bus
• Available in industry-standard SOP8, MSOP8, and DFN packages
