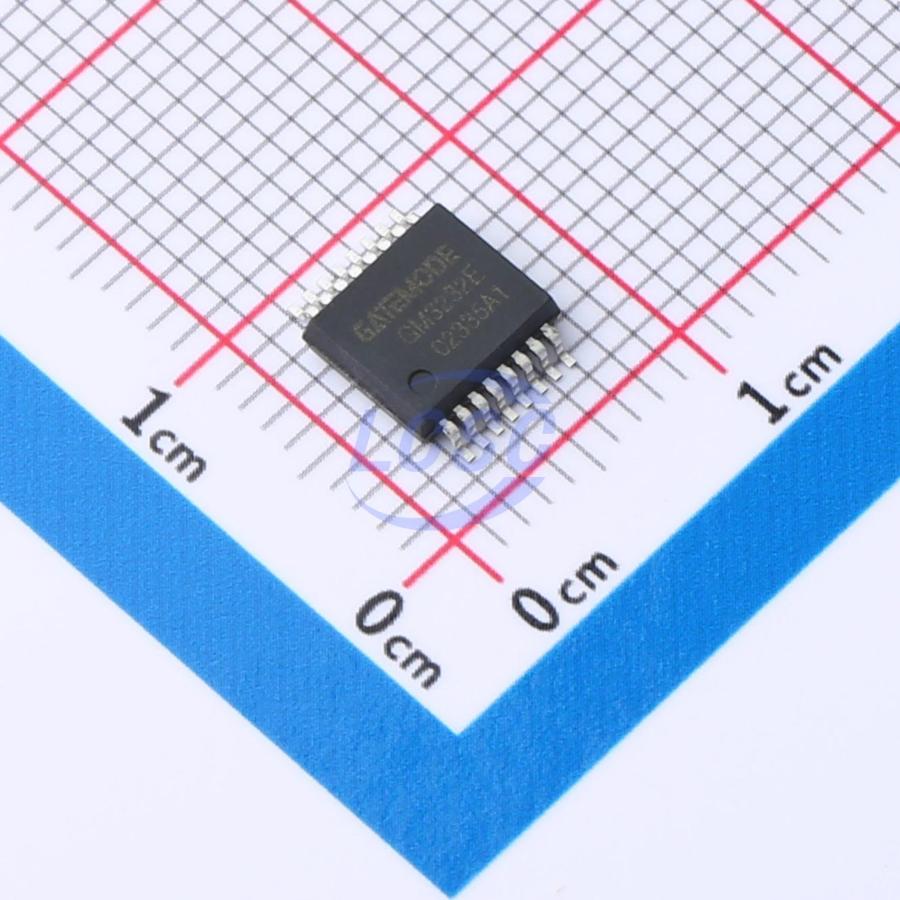

GATEMODEDatasheet (PDF)
GM3232EBA
3V~5.5V Transceiver 500Kbps SSOP-16-208mil Drivers, Receivers, Transceivers
SSOP-16-208milRoHSActive
±15kV ESD Protection RS-232 Line Driver and Receiver GM3232E
- Manufacturer
- GATEMODE
- Manufacturer part #
- GM3232EBA
- Store part #
- C17701311
- Package / case
- SSOP-16-208mil
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
415 in stock
#C17701311
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.94 | ₹199.70 |
| 50+ | ₹31.73 | ₹1,586.50 |
| 150+ | ₹28.21 | ₹4,231.50 |
| 500+ | ₹23.81 | ₹11,905.00 |
| 2,500+ | ₹22.04 | ₹55,100.00 |
| 5,000+ | ₹20.86 | ₹1,04,300.00 |
5 × ₹39.94
₹199.70
excl. GST
₹235.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
GM3232EBA
₹199.70 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.315 g
Overview
The GM3232E interface chip consists of two-channel drivers, two-channel receivers, and a dual charge-pump circuit. The serial port has ±15kV IEC ESD protection. The GM3232E meets the requirements of TIA/EIA-232-F and provides the electrical interface function between an asynchronous communication controller and the serial-port connector. The internal charge pump of the chip and four small external capacitors support a single power supply of 3V to 5.5V. The GM3232E supports a data signaling rate of up to 500kbit/s.
Applications
- Industrial PC
- Wired network
- Data center and enterprise computing
- Notebook, Computers
- Handheld device
Key features
- It can be powered by a 3V to 5.5V VCC supply
- Operates up to 500kbps
- Two Drivers and Two Receivers
- Meets the Requirements of TIA/EIA-232-F and ITU V.28 standard
- External Capacitors: 0.1μF
- Serial pins provide enhanced ESD protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GM3232ENA#C17701310GATEMODE · SSOP-16 | GATEMODE | SSOP-16 | On request | Price on request | Quote |
