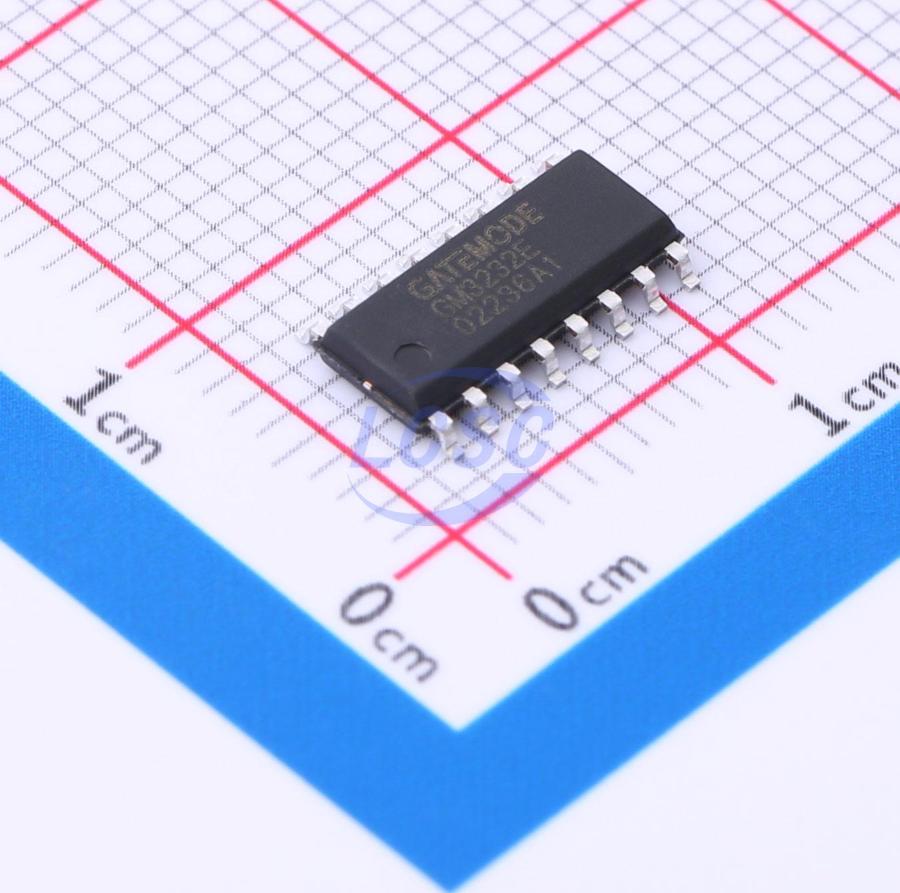

GATEMODE

GM3232ESA

Transceiver 500Kbps SOP-16 Drivers, Receivers, Transceivers

SOP-16RoHSActive

±15kV ESD Protection RS-232 Line Driver and Receiver GM3232E

Manufacturer: GATEMODE
Manufacturer part #: GM3232ESA
Store part #: C5201633
Package / case: SOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

51,340 in stock

#C5201633

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹27.44	₹137.20
50+	₹23.58	₹1,179.00
150+	₹20.36	₹3,054.00
500+	₹17.42	₹8,710.00
2,500+	₹14.54	₹36,350.00
5,000+	₹13.51	₹67,550.00

Quantity (min 5, multiples of 5)

5 × ₹27.44

₹137.20

excl. GST

₹161.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

GM3232ESA

₹137.20 for 5 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~3.6V;4.5V~5.5V
Data Rate: 500Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Features: Short-Circuit Protection
Number of Receivers: 2
Quiescent Supply Current: 0.3mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.34 g

Overview

The GM3232E interface chip consists of two-channel drivers, two-channel receivers, and a dual charge-pump circuit. The serial port has ±15kV IEC ESD protection. The GM3232E meets the requirements of TIA/EIA-232-F and provides the electrical interface function between an asynchronous communication controller and the serial-port connector. The internal charge pump of the chip and four small external capacitors support a single power supply of 3V to 5.5V. The GM3232E supports a data signaling rate of up to 500kbit/s.
