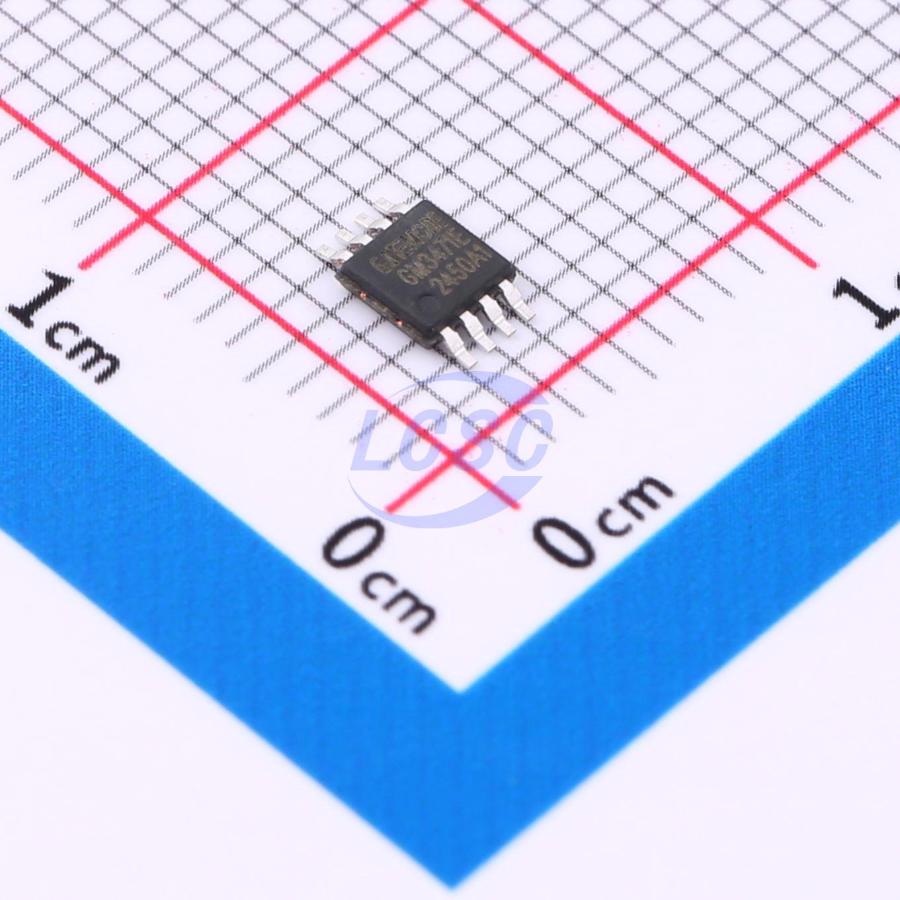

GATEMODE

GM3471EMA

1/1 Transceiver Half RS422, RS485 MSOP-8

MSOP-8RoHSActive

1.6 μA, RS-485/RS-422, half-duplex differential transceiver for battery-powered systems

Manufacturer: GATEMODE
Manufacturer part #: GM3471EMA
Store part #: C45354717
Package / case: MSOP-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,600 in stock

#C45354717

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹193.95	₹193.95
10+	₹161.17	₹1,611.70
30+	₹143.14	₹4,294.20
100+	₹118.59	₹11,859.00
500+	₹109.47	₹54,735.00
1,000+	₹105.56	₹1,05,560.00

Quantity (min 1)

1 × ₹193.95

₹193.95

excl. GST

₹228.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

GM3471EMA

₹193.95 for 1 + GST

Specifications

Voltage - Supply: 2.5V~5.5V
Type: Transceiver
Data Rate: 64Kbps
Number of Nodes: 8
Operating Temperature: -40℃~+85℃
Communication Mode: Half-Duplex
Number of Drivers: 1
Features: Tx/Rx enable;Enable shutdown;Overcurrent Protection
Number of Receivers: 1
Quiescent Supply Current: 1.6uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.129 g

Overview

The GM3471E half-duplex transceiver is intended for lithium battery-powered RS-485/RS-422 applications. It draws only 1.6μA (typical) supply current from a 3.6V supply with the receiver enabled and the driver disabled. Its wide 2.5V to 5.5V supply voltage guarantees operation over the lifetime of a lithium battery. This device features true fail-safe operation that guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The GM3471E has a 1/8-unit load input resistance. When driver outputs are enabled and pulled above VCC or below GND, internal circuitry prevents battery back charging. The GM3471E is available in an 8-pin MSOP package.
