GM3490E

The GM3490E for RS-485/RS-422 communication is a 3.3V full-duplex 10Mbps high-speed transceiver containing one driver and one receiver. It features ±15kV HBM ESD protection and a failsafe circuit that ensures a logic-high output when the receiver input is open or shorted. If all drivers connected to a terminated bus are disabled (high-impedance), the receiver will output a logic high level. The GM3490E driver has no slew rate limiting, guaranteeing data rates up to 10Mbps. The GM3490E receiver features 1/4 unit load input impedance, allowing up to 128 transceivers to be connected on the bus.

Applications

• Industrial control networks
• Security systems
• Lighting systems
• Instrumentation

Key features

• Wide supply range, full-duplex
• True failsafe receiver compliant with EIA/TIA-485

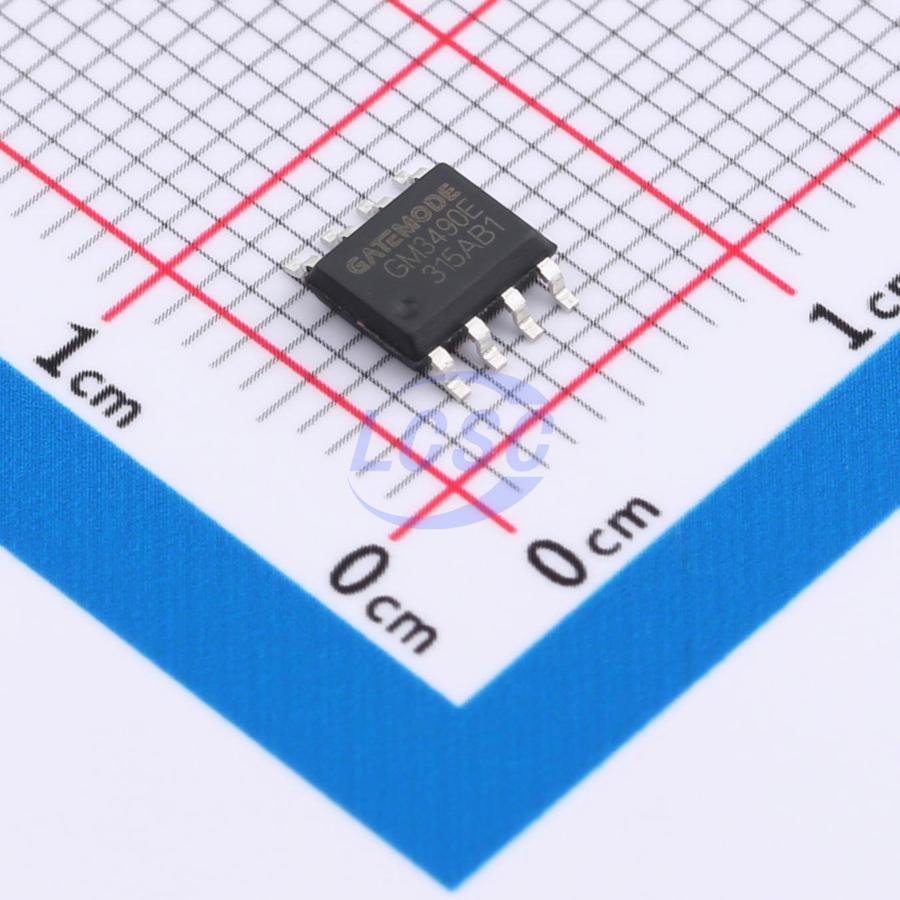

• Industry-standard 8-pin SOP package
• Guaranteed V_OD >1.5V under 54Ω full-load at 3.3V supply
• Up to 128 transceivers on the bus
• Enhanced ESD protection on RS-485/RS-422 A/B pins
• HBM: ±15kV
• IEC 61000-4-2: Contact discharge ±12kV, Air discharge ±15kV
