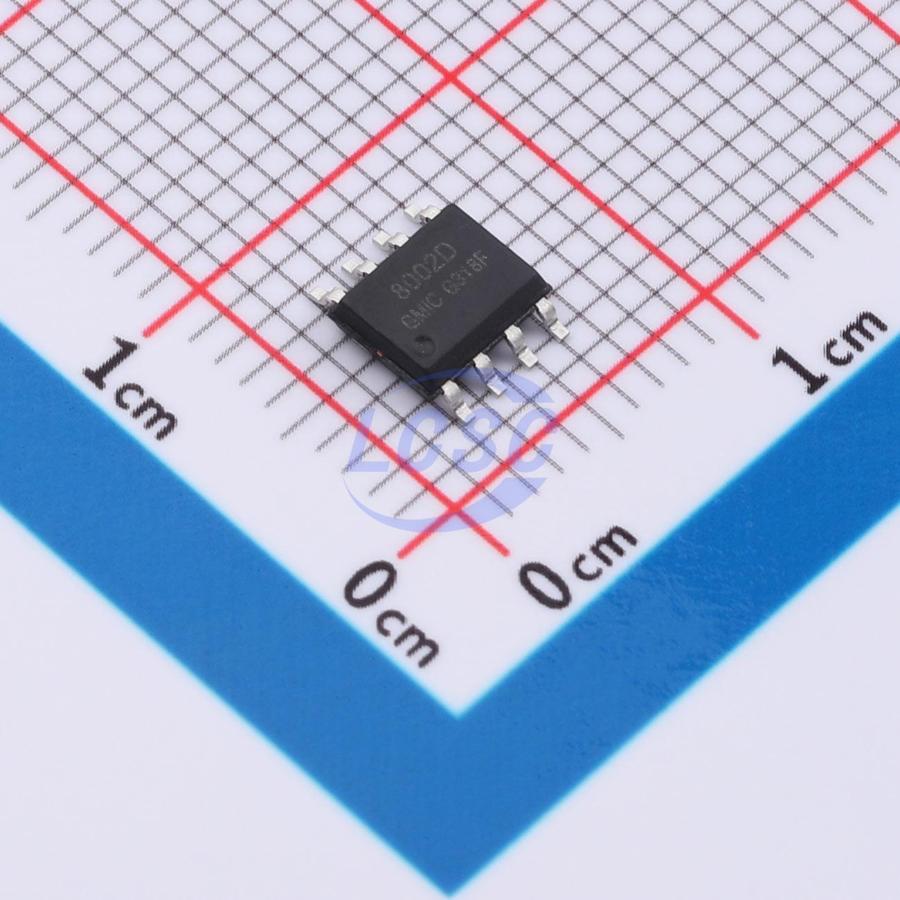

GM8002D
2.2V~5.5V 7mA 1-Channel Class AB SOP-8 Audio Amplifiers
- Manufacturer
- GREENMICRO
- Manufacturer part #
- GM8002D
- Store part #
- C53055736
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C53055736
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.29 | ₹52.90 |
| 100+ | ₹4.17 | ₹417.00 |
| 300+ | ₹3.61 | ₹1,083.00 |
| 2,500+ | ₹3.18 | ₹7,950.00 |
| 5,000+ | ₹2.84 | ₹14,200.00 |
| 10,000+ | ₹2.67 | ₹26,700.00 |
10 × ₹5.29
₹52.90
excl. GST
₹62.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
GM8002D
₹52.90 for 10 + GST
Specifications
- Voltage - Supply
- 2.2V~5.5V
- Quiescent Current
- 7mA
- Features
- Enable/shutdown function;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.6%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 85dB
- Speaker Channels
- 1-Channel
- Output Power
- 1.6Wx1@8Ω;2.6Wx1@4Ω;2.8Wx1@3Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 50dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
The 8002 is a single-channel Class AB audio power amplifier. At a 5.0V supply voltage with 10% THD+N, it delivers 2.6W into a 4Ω load. Its application circuit is simple, requiring minimal external components to achieve high-quality, low-distortion output. The device features a shutdown function that significantly extends system standby time. Thermal protection enhances system reliability. Pop suppression improves the listening experience and simplifies system debugging.
Applications
- FM player
- Card speaker / USB speaker / Bluetooth speaker
- Laptop computer
- Portable DVD
Key features
- Output power: 1.6W (VDD=5.0V, RL=8Ω, THD+N=10%)
- Output power: 2.6W (VDD=5.0V, RL=4Ω, THD+N=10%)
- Output power: 2.8W (VDD=5.0V, RL=3Ω, THD+N=10%)
- Supply voltage range: 2.5V to 5.5V
- Power-on pop suppression
- Thermal protection
