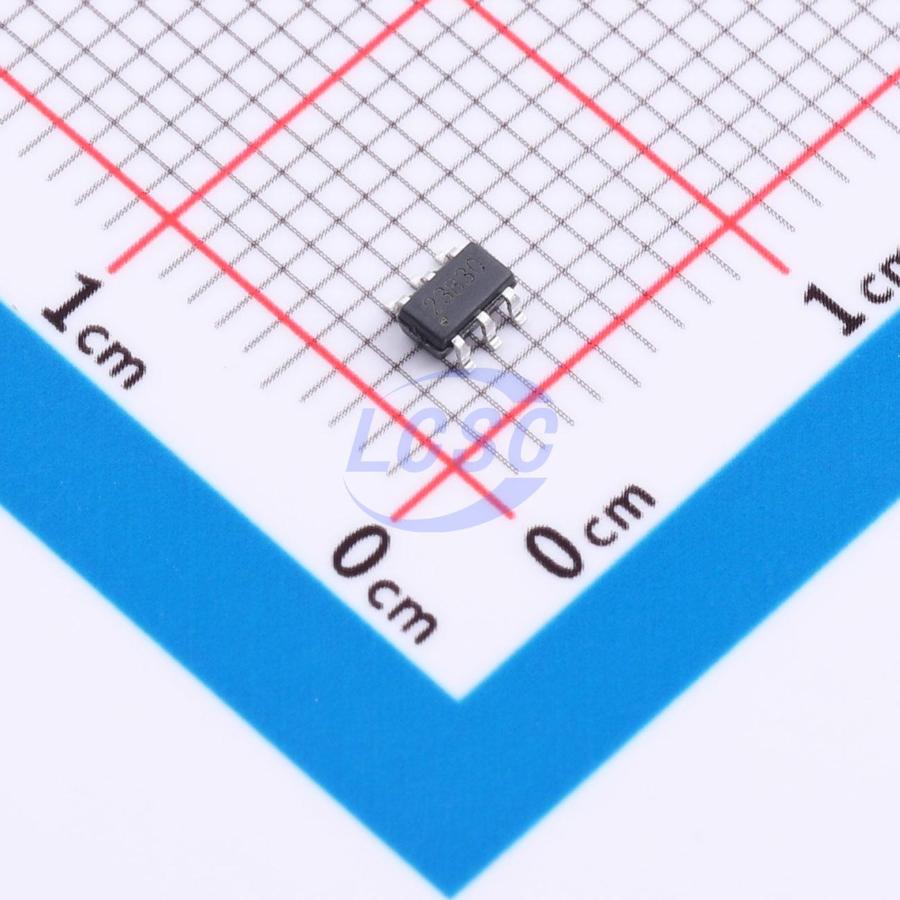

GM8023B
5V~42V SOT-23-6 Motor Drivers, Controllers
High-voltage and high-current driver chip
- Manufacturer
- GATEMODE
- Manufacturer part #
- GM8023B
- Store part #
- C269871
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,855 in stock
#C269871
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.69 | ₹63.45 |
| 50+ | ₹10.10 | ₹505.00 |
| 150+ | ₹8.80 | ₹1,320.00 |
| 500+ | ₹7.82 | ₹3,910.00 |
| 3,000+ | ₹6.51 | ₹19,530.00 |
| 6,000+ | ₹6.12 | ₹36,720.00 |
5 × ₹12.69
₹63.45
excl. GST
₹74.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GM8023B
₹63.45 for 5 + GST
Specifications
- Voltage - Supply
- 5V~42V
- Operating Temperature
- -40℃~+85℃
- RDS(on)
- 12Ω
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
GM8023 is a high-voltage, high-current relay driver IC featuring low quiescent power consumption and strong drive capability. The chip integrates an H-bridge power driver circuit whose outputs can be directly connected to a relay. Under the control of input logic signal levels, it enables the opening and closing of latching relay contacts. No additional peripheral components are required in the application circuit, offering the advantages of compact size, low power consumption, and high reliability. GM8023 is available in SOP-8 and SOT23-6 packages.
Applications
- Smart meter
- Motor drive
- Industrial control
- Magnetic latching relay control instruments
