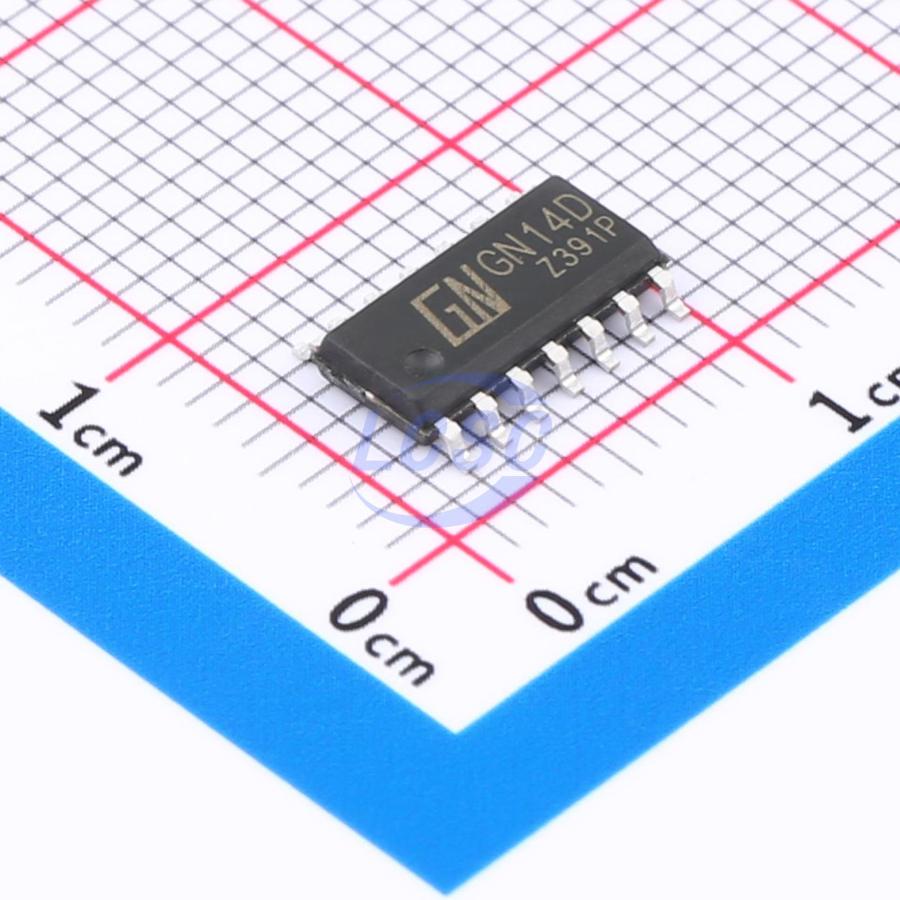

GN SemicDatasheet (PDF)
GN14D
Schmitt trigger 2V~6V 25ns@4.5V,15pF 2uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
Hex inverter with Schmitt trigger inputs
- Manufacturer
- GN Semic
- Manufacturer part #
- GN14D
- Store part #
- C19172997
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,350 in stock
#C19172997
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.08 | ₹70.40 |
| 50+ | ₹11.25 | ₹562.50 |
| 150+ | ₹9.84 | ₹1,476.00 |
| 500+ | ₹8.78 | ₹4,390.00 |
| 2,500+ | ₹7.92 | ₹19,800.00 |
| 4,000+ | ₹7.50 | ₹30,000.00 |
5 × ₹14.08
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GN14D
₹70.40 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 25ns@4.5V,15pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 900mV~2V
- Input Logic Level - High
- 1.7V~3.15V
- Output Logic Level - High
- 3.98V~4.32V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
GN14D is a hex inverter with Schmitt trigger inputs. The Schmitt trigger converts slowly changing input signals into steeper, stable output signals.
Key features
- Low input level: CMOS level
- Low power consumption
- Operating temperature range: -40℃ ~ +125℃
