GN SemicDatasheet (PDF)

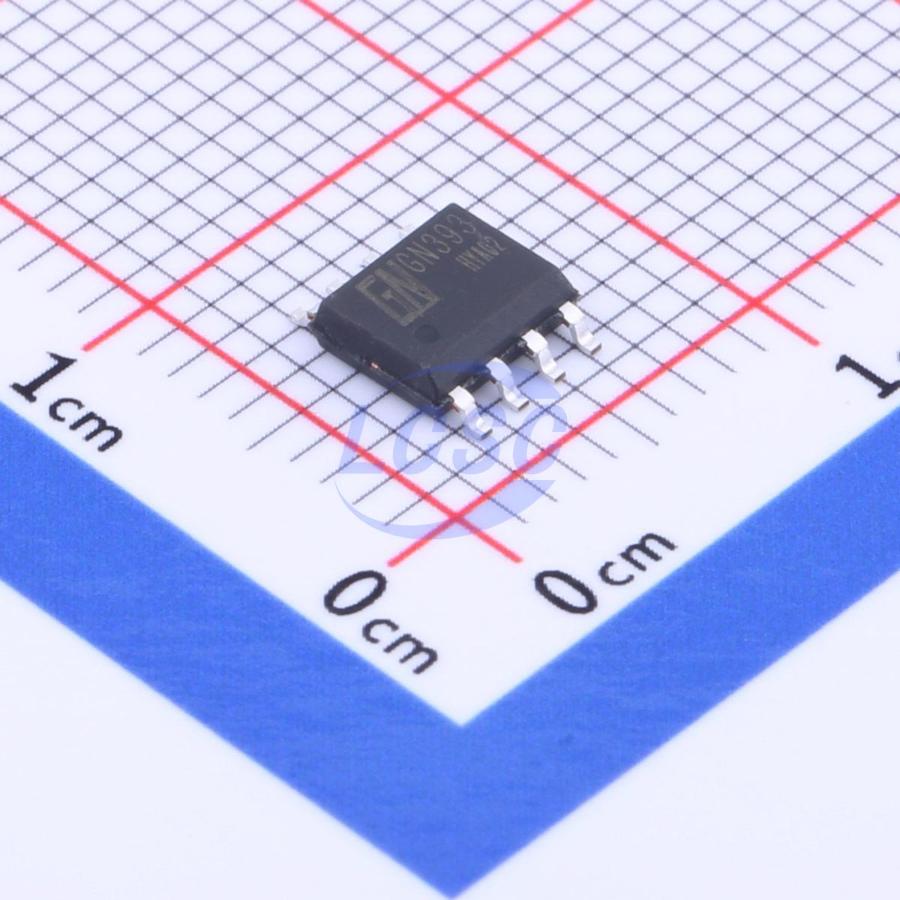

GN393
1mV 25nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Dual Comparator
- Manufacturer
- GN Semic
- Manufacturer part #
- GN393
- Store part #
- C2758334
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,330 in stock
#C2758334
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.08 | ₹80.80 |
| 100+ | ₹6.67 | ₹667.00 |
| 300+ | ₹5.97 | ₹1,791.00 |
| 1,000+ | ₹5.44 | ₹5,440.00 |
| 4,000+ | ₹4.72 | ₹18,880.00 |
| 8,000+ | ₹4.51 | ₹36,080.00 |
10 × ₹8.08
₹80.80
excl. GST
₹95.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GN393
₹80.80 for 10 + GST
Specifications
- Dual Supply
- 1V~18V;-18V~-1V
- Input Hysteresis Voltage (Vhys)
- 10mV
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 1mV
- Quiescent Current
- 400uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.109 g
Overview
GN393 consists of two independent, precision voltage comparators with an input offset voltage of no more than 2.0mV. It operates from either a single or dual supply, with supply current independent of supply voltage level. These comparators feature a unique characteristic: the input common-mode voltage range extends to zero even when operating from a single supply. Primarily designed for consumer and industrial electronics applications. Available in DIP8 or SOP8 packages.
Applications
- Consumer electronics
- Industrial electronics
Key features
- Wide supply voltage range: single supply 2.0V~36V, dual supply ±1.0V~±18V
- Low supply current: 0.8mA, independent of supply voltage
- Low input bias current: 25nA
- Low input offset current: 5.0nA
- Low input offset voltage: 5.0mV
- Input differential voltage range equal to supply voltage range
- Compatible with TTL, DTL, ECL, MOS, and CMOS
