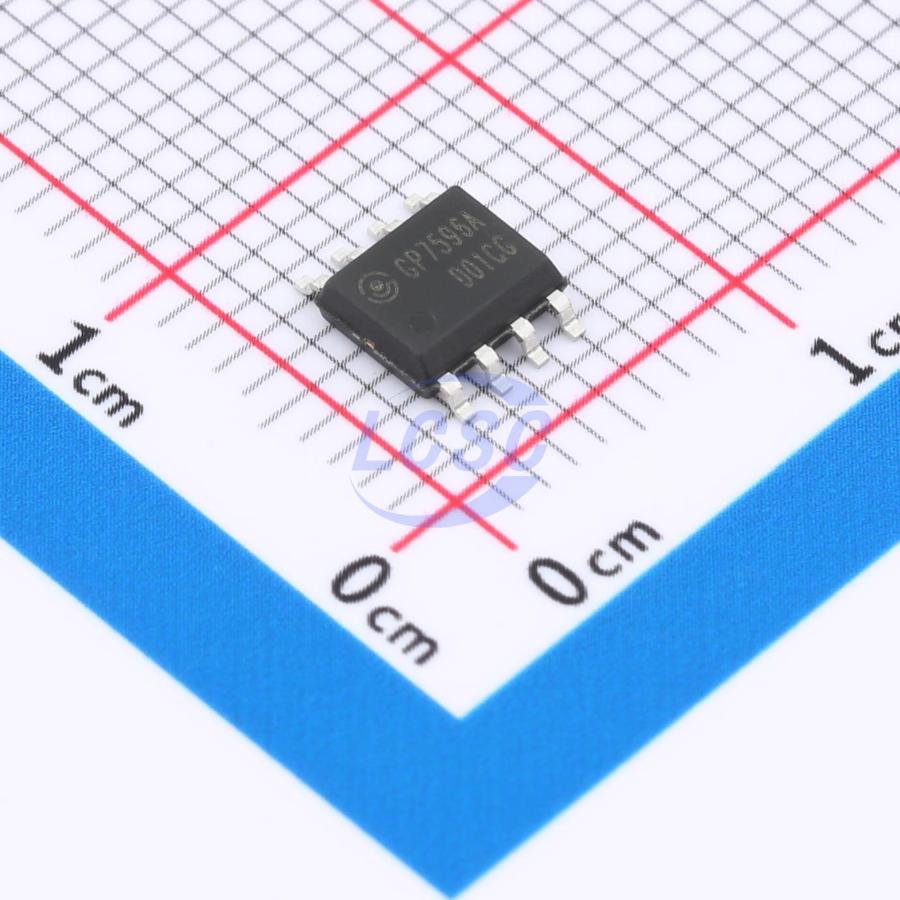

GP7596A
1 18mΩ SOP-8 Power Supply Controllers, Monitors RoHS
High-performance secondary-side synchronous rectification power switch
- Manufacturer
- HaloChip
- Manufacturer part #
- GP7596A
- Store part #
- C47117418
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,395 in stock
#C47117418
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.33 | ₹61.65 |
| 50+ | ₹10.82 | ₹541.00 |
| 150+ | ₹10.07 | ₹1,510.50 |
| 500+ | ₹9.51 | ₹4,755.00 |
| 2,500+ | ₹9.06 | ₹22,650.00 |
| 4,000+ | ₹8.84 | ₹35,360.00 |
5 × ₹12.33
₹61.65
excl. GST
₹72.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP7596A
₹61.65 for 5 + GST
Specifications
- MOS Breakdown Voltage
- 65V
- Function
- Multi-mode compatible control;Leading edge blanking;Abnormal state protection
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 18mΩ
- Operating Temperature
- -40℃~+85℃
- Operating Voltage
- 5V
- Turn-Off Delay
- 30ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
GP7596XX is a high-performance synchronous rectification power switch designed to replace the secondary-side Schottky diode in flyback converters, featuring an ultra-low on-resistance power MOSFET to improve system efficiency. The device supports both "floating ground" and "common ground" synchronous rectification topologies, and is compatible with DCM, QR, and CCM operating modes. An integrated high-voltage VCC supply module eliminates the need for a VCC auxiliary winding, reducing system cost, with built-in VCC UVLO protection. The product is available in a SOP8 package.
Applications
- Flyback converter
- Adapter
- Charger
- Other power supplies
Key features
- Flyback topology secondary-side synchronous rectification power switch
- Supports both "floating ground" and "common ground" synchronous rectification topologies
- Supports DCM, QR, and CCM operating modes
- Low quiescent current
- Integrated high-voltage supply module, no auxiliary winding required
- Undervoltage protection
