GP8891CAS

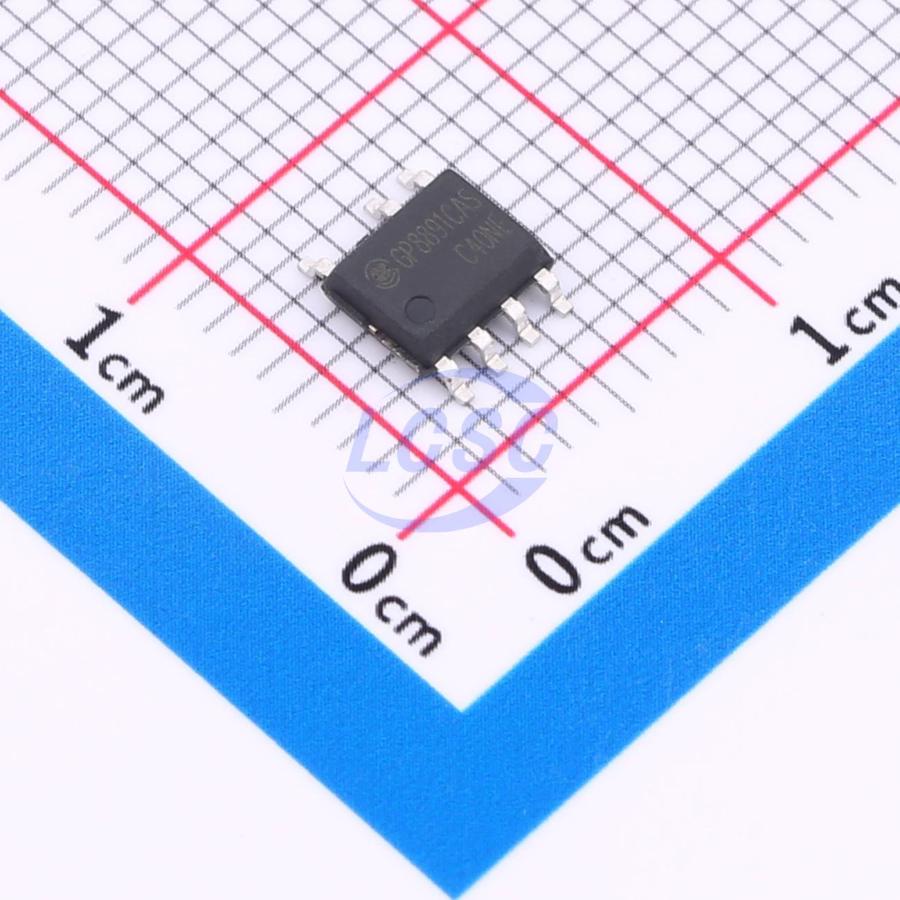

GP8891CAS is a self-powered constant voltage/constant current primary-side feedback control IC designed for chargers and adapters. It features a proprietary output line loss compensation technique to effectively compensate for the voltage drop caused by output current across the output cable. The built-in startup circuit eliminates the need for external startup resistors, while the integrated FB pull-down resistor and CS sampling resistor simplify the peripheral circuit. In addition, the built-in loop compensation circuit removes the need for external compensation components, ensuring excellent system stability. GP8891CAS achieves excellent CV/CC characteristics and meets the standby power consumption requirement of less than 75 mW. The IC incorporates multiple protection functions, including open-circuit protection, overvoltage protection, output short-circuit protection, and secondary Schottky short-circuit protection. Its unique single-cycle peak current shutdown mechanism prevents various failures caused by transistor overcurrent. GP8891CAS is available in a SOP7 package.

Applications

• Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
• LED driver power supplies
• Drop-in replacement for linear and RCC switching power supplies
• Other auxiliary power supplies

Key features

• Self-powered primary-side feedback control
• High accuracy constant voltage and constant current
• ≈75 mW standby power consumption
• Adjustable output line loss compensation
• Open-circuit, short-circuit, OVP, and UVP protection
• Over-temperature protection
• Compatible with both dual-winding and tri-winding configurations
