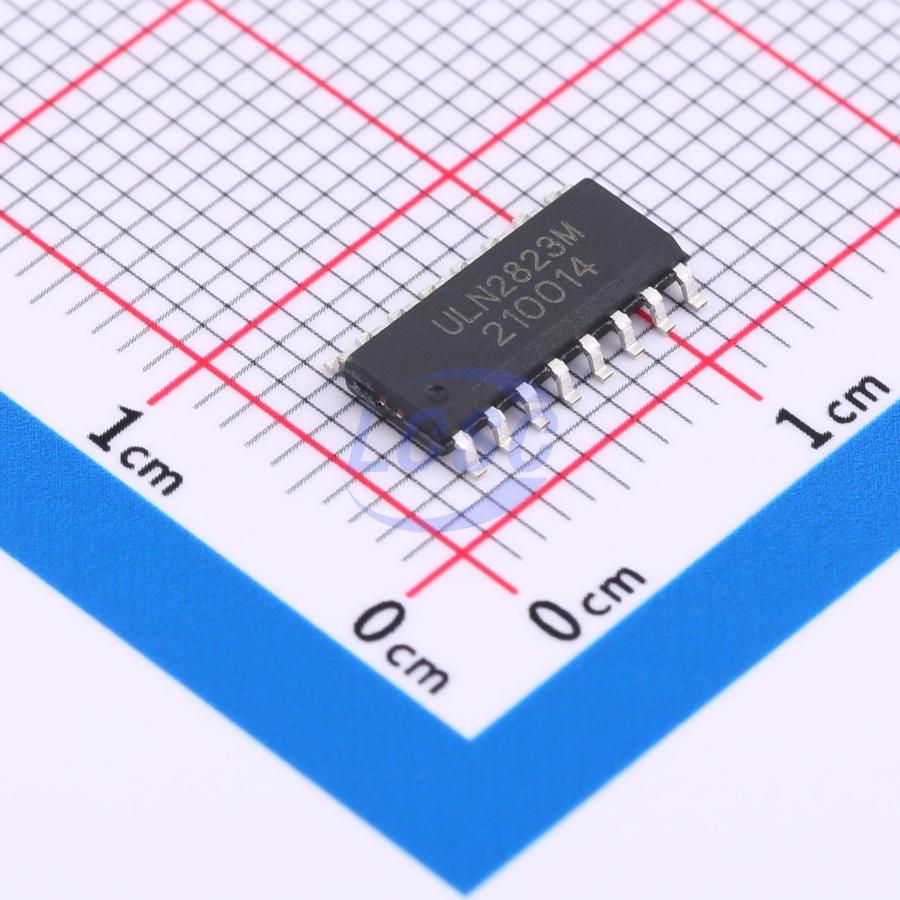

GR2823M
SOP-16 Motor Drivers, Controllers
Specialized stepper motor driver integrated chip
- Manufacturer
- GR
- Manufacturer part #
- GR2823M
- Store part #
- C18164466
- Package / case
- SOP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,825 in stock
#C18164466
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.96 | ₹119.80 |
| 50+ | ₹21.02 | ₹1,051.00 |
| 150+ | ₹19.77 | ₹2,965.50 |
| 500+ | ₹18.20 | ₹9,100.00 |
| 2,500+ | ₹17.50 | ₹43,750.00 |
| 5,000+ | ₹17.09 | ₹85,450.00 |
5 × ₹23.96
₹119.80
excl. GST
₹141.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
GR2823M
₹119.80 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Features
- Power-on reset
- Technology
- No
- Interface
- Serial
- Operating Temperature
- -45℃~+85℃
- Output Current
- 400mA
- Control Voltage
- 3V~5.5V
- Motor Drive Voltage(Vm)
- 3V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
GR2823M is a dedicated stepper motor driver IC, integrating a data conversion module, a high-voltage high-current driver module, and an output clamp protection module. It features a dual power supply scheme with separate high-voltage (VDDH) and low-voltage (VDDL) rails, effectively isolating stepper motor interference from the control circuitry. Data input is via 3-wire serial interface, with eight parallel high-voltage high-current outputs. This serial-in/parallel-out architecture conserves MCU output port resources, reduces PCB routing area, and improves design efficiency. The GR2823M can simultaneously drive two 4-phase stepper motors, eight relays, or be used in other applications such as LED large-display driving.
Key features
- Low-voltage supply voltage: 3V~5.5V
- High-voltage supply voltage: 3V~18V
- Maximum output current: 400mA, Ta = 25°C
- Serial input
- 8-channel open-drain output
- Low power consumption: less than 1uA
- Built-in clamp diodes on all 8 outputs, reducing external components
