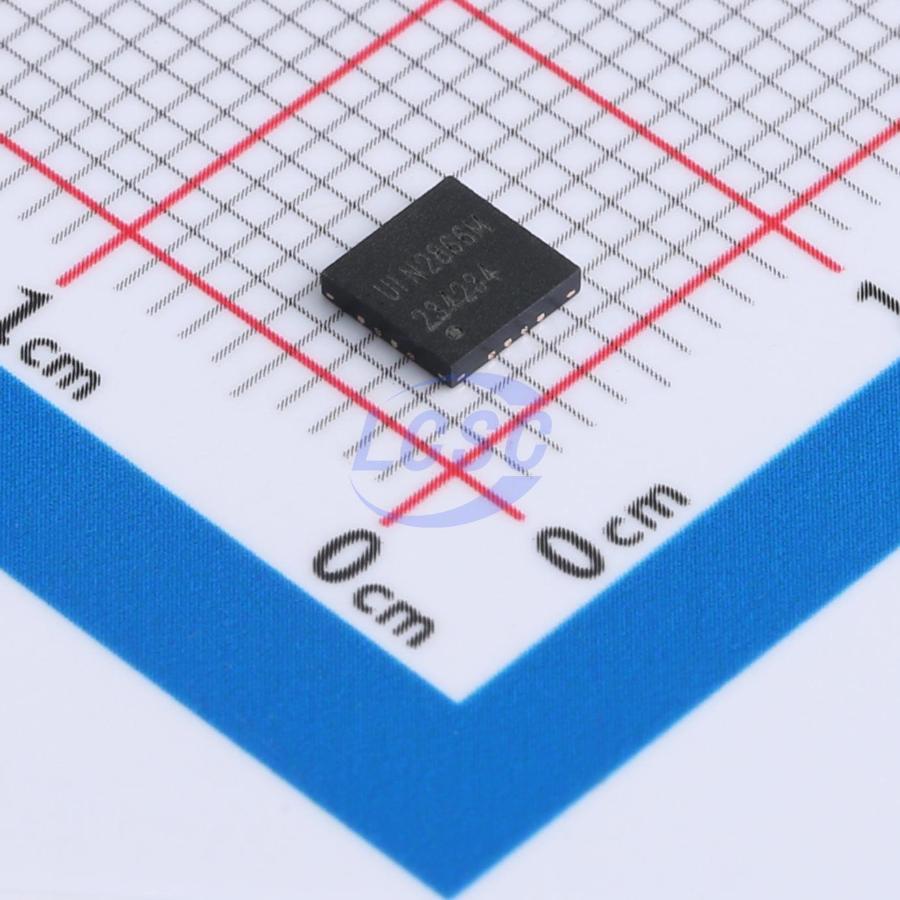

GR2866M
QFN-16(4x4) Motor Drivers, Controllers
QFN-16(4x4)RoHSActive
Dedicated stepper motors and IR-Cut Removable driver integrated circuits
- Manufacturer
- GR
- Manufacturer part #
- GR2866M
- Store part #
- C18164469
- Package / case
- QFN-16(4x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,645 in stock
#C18164469
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.64 | ₹138.20 |
| 50+ | ₹24.26 | ₹1,213.00 |
| 150+ | ₹22.81 | ₹3,421.50 |
| 500+ | ₹21.01 | ₹10,505.00 |
| 2,500+ | ₹20.20 | ₹50,500.00 |
| 4,000+ | ₹19.71 | ₹78,840.00 |
5 × ₹27.64
₹138.20
excl. GST
₹163.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GR2866M
₹138.20 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Technology
- No
- Interface
- I2C
- Output Current
- 500mA
- Control Voltage
- 2.8V~5.5V
- Motor Drive Voltage(Vm)
- 3V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
GR2866M is a dedicated stepper motor and IR-Cut Removable driver IC, compatible with I²C bus input. It provides eight parallel outputs for driving stepper motors and two mutually exclusive outputs for driving IR-Cut motors. The device can drive two 4-phase stepper motors or eight relays, and is also suitable for other applications such as LED large-screen driving.
Key features
- Maximum voltage rating: 18V
- Maximum output current: 500mA, Ta=25℃
- Low power consumption: typical 0uA
- Compatible with 5V and 12V stepper motors
- I²C bus communication compatible
- 8-channel parallel output, 2-channel IR-Cut mutually exclusive output
- Package: SOP16, QFN16
