GRDatasheet (PDF)

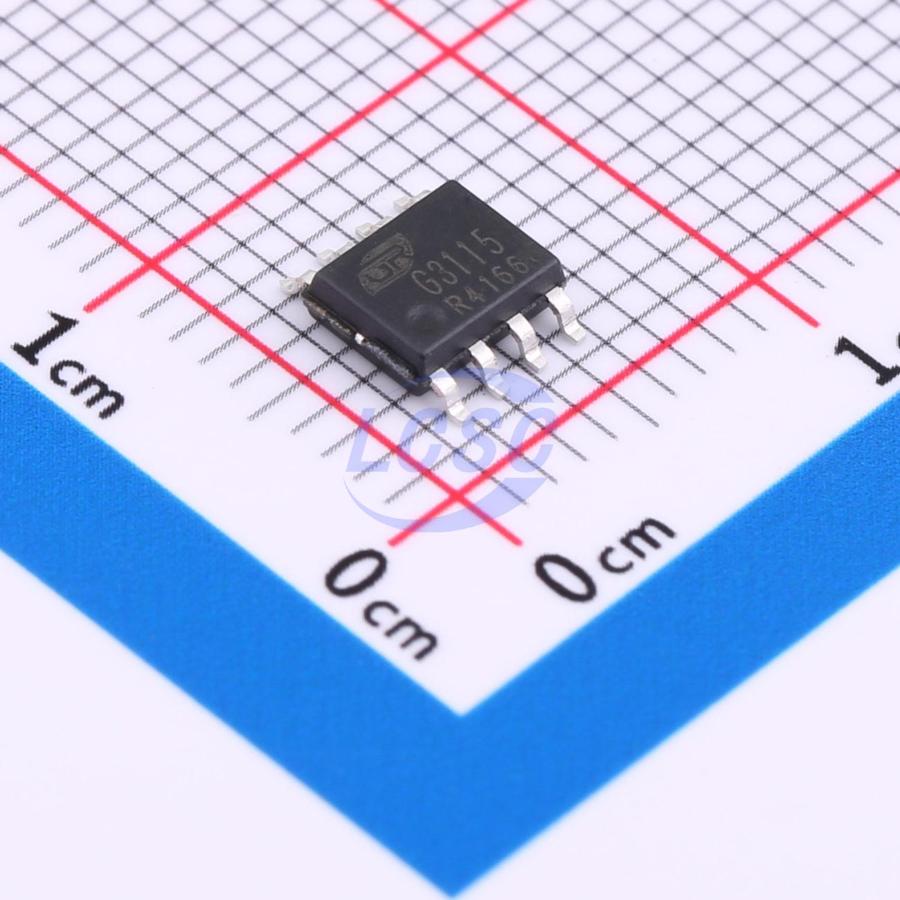

GR3115
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
SOP-8RoHSActive
Half-bridge gate driver
- Manufacturer
- GR
- Manufacturer part #
- GR3115
- Store part #
- C18164497
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,105 in stock
#C18164497
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.77 | ₹68.85 |
| 50+ | ₹11.07 | ₹553.50 |
| 150+ | ₹9.72 | ₹1,458.00 |
| 500+ | ₹8.71 | ₹4,355.00 |
| 2,500+ | ₹7.90 | ₹19,750.00 |
| 4,000+ | ₹7.49 | ₹29,960.00 |
5 × ₹13.77
₹68.85
excl. GST
₹81.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GR3115
₹68.85 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 600uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- 0℃~+60℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600uA
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Dead-time control;Interleaved conduction protection
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
GR3115 is a cost-effective half-bridge gate driver IC designed for high-voltage, high-speed driving of N-type high-power MOSFETs and IGBTs. The built-in UVLO protection prevents power transistors from operating at excessively low voltages, improving efficiency. Built-in shoot-through prevention and dead-time control protect against shoot-through conditions, effectively safeguarding power devices. Widely used in brushless motor controller circuits.
Applications
- Motor drive
- DC-DC converter
Key features
- Floating absolute voltage +200V with VCC UVLO
- High-side output in-phase with high-side input
- Low-side output inverted from low-side input
- 3.3V/5V input logic compatible
- Package: SOP8
