GRDatasheet (PDF)

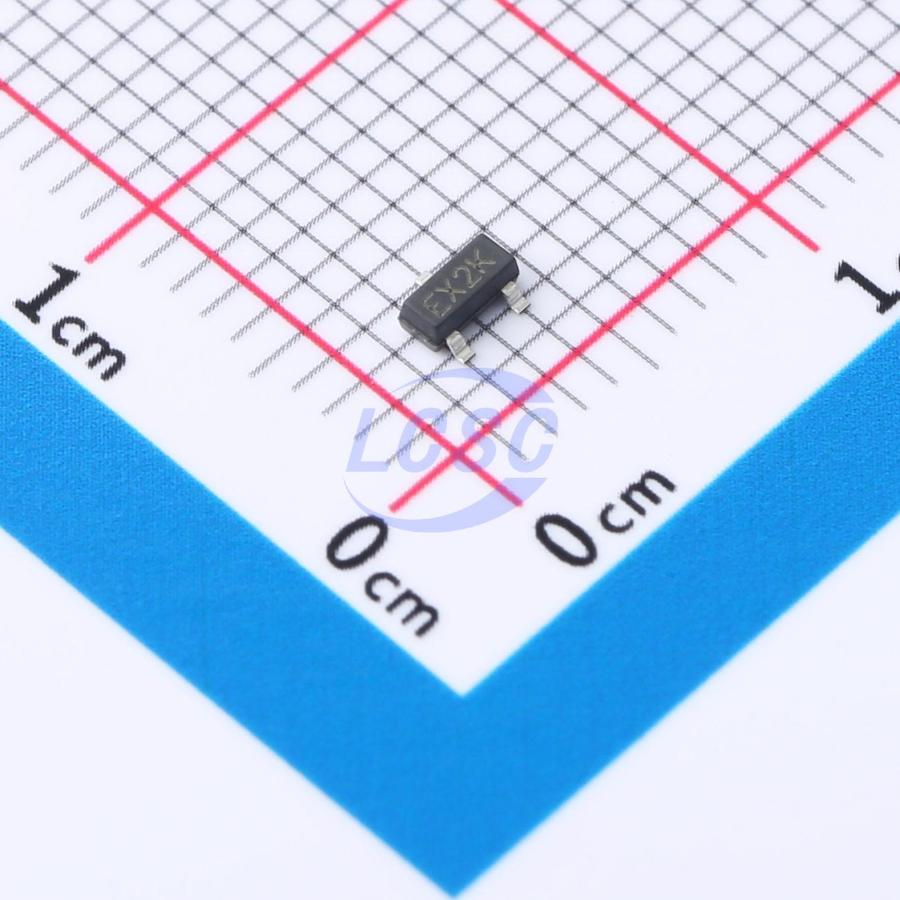

GR5300A33M3G
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23RoHSActive
LDO Linear Voltage Regulator
- Manufacturer
- GR
- Manufacturer part #
- GR5300A33M3G
- Store part #
- C19631801
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C19631801
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.33 | ₹86.60 |
| 200+ | ₹3.39 | ₹678.00 |
| 600+ | ₹2.86 | ₹1,716.00 |
| 3,000+ | ₹2.55 | ₹7,650.00 |
| 9,000+ | ₹2.28 | ₹20,520.00 |
| 21,000+ | ₹2.13 | ₹44,730.00 |
20 × ₹4.33
₹86.60
excl. GST
₹102.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR5300A33M3G
₹86.60 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 15V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.037 g
Overview
The GR53xx series are low-power, high-voltage regulators fabricated using CMOS process technology, supporting a maximum input voltage of 10V and an output voltage range of 1.8V to 3.6V. With an internally integrated filter capacitor, the two external 10μF input and output capacitors can be omitted in applications. Key features include high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery-powered and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
- Toys
Key features
- Low quiescent current: 3μA
- Low dropout voltage: 0.1V typical
- Low temperature coefficient: 50 ppm/℃ typical
- Wide input voltage range: up to 10V
- High output voltage accuracy: ±2.5% tolerance
- Package: SOT23-3
