GRDatasheet (PDF)

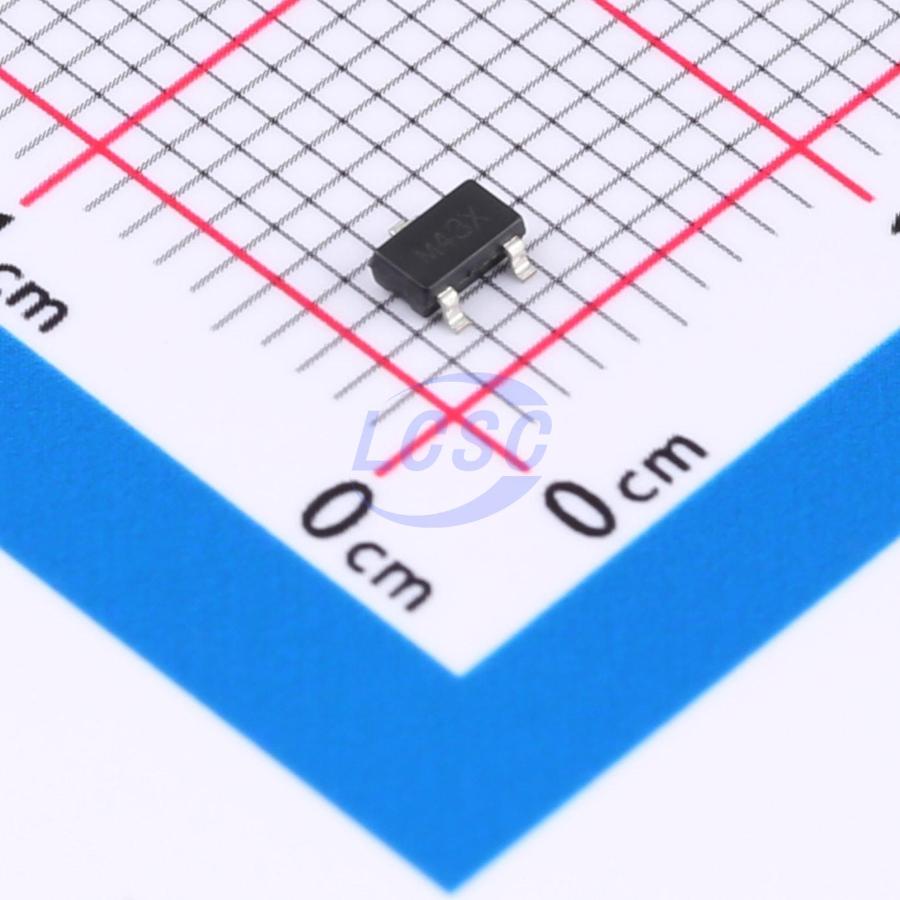

GR61CN2402MR
Supervisor Open Drain 1 Channel SOT-23-3
SOT-23-3RoHSActive
Low Voltage Detector
- Manufacturer
- GR
- Manufacturer part #
- GR61CN2402MR
- Store part #
- C19631680
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C19631680
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.96 | ₹69.60 |
| 100+ | ₹5.50 | ₹550.00 |
| 300+ | ₹4.78 | ₹1,434.00 |
| 3,000+ | ₹4.23 | ₹12,690.00 |
| 6,000+ | ₹3.80 | ₹22,800.00 |
| 9,000+ | ₹3.57 | ₹32,130.00 |
10 × ₹6.96
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR61CN2402MR
₹69.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The GR61CNxx series is a high-precision, low-power voltage detector IC manufactured using CMOS process technology and laser trimming. The GR61CNxx series is minimally affected by temperature drift characteristics, achieving high voltage detection accuracy. The GR61CNxx series offers two output modes: CMOS and N-channel open-drain.
Applications
- Battery detector, level selector
- Power-fail detector
- Microprocessor reset
- Non-volatile RAM signal storage protector
- Battery backup storage
Key features
- Low power consumption: typical 2.0uA
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature drift detection voltage: typical ±50ppm/°C
- Detection voltage: 2.0V - 5.0V, in 0.1V steps
- Output type: N-channel open-drain output, CMOS output
- Compact package: SOT23-3, SOT89-3, TO92
