GR7024

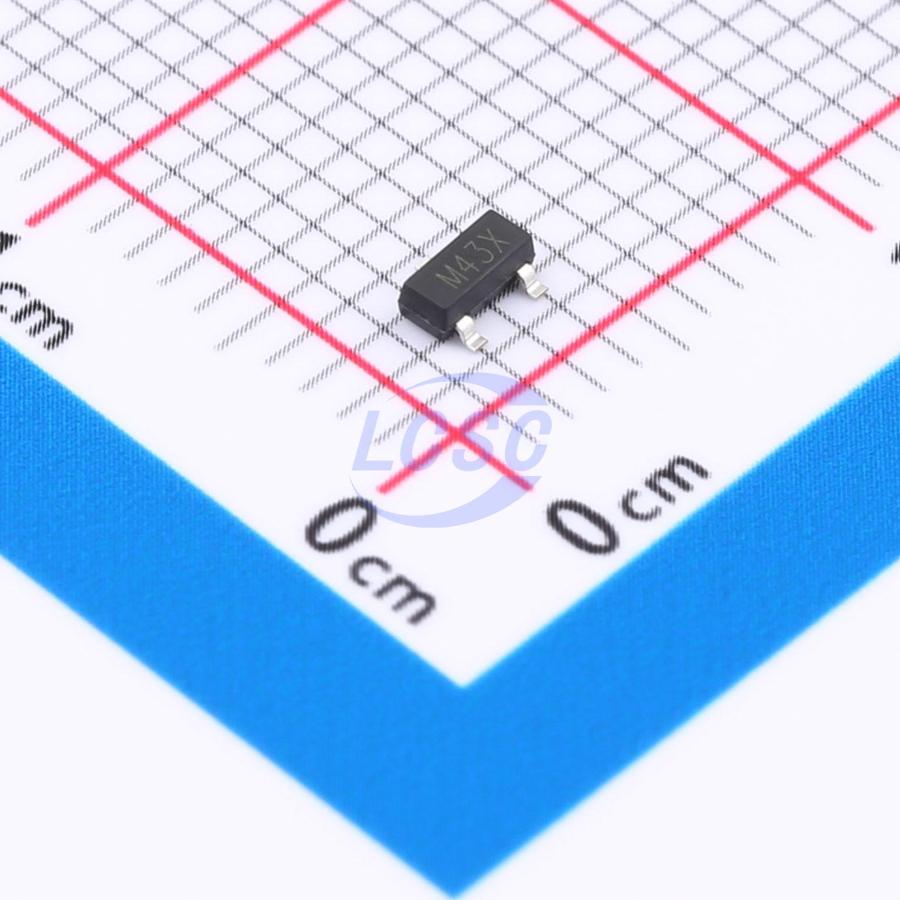

The GR70xx series is a three-pin low-voltage detector implemented in CMOS technology. This series detects fixed voltages ranging from 2.2V to V, and consists of four functional blocks: a high-accuracy, low-power reference voltage source, a comparator, a hysteresis circuit, and an output driver. CMOS technology ensures low power consumption. Although the detector is primarily designed for fixed-voltage detection, it can also detect user-specified threshold voltages through external components (NMOS open-drain type only).

Applications

• Battery detector, level selector
• Non-volatile RAM signal storage protector
• Power-fail detector
• Battery backup storage
• Microprocessor reset

Key features

• Low power consumption, typical: 2.0uA
• Built-in hysteresis
• Wide operating voltage range: 1.5V~12V
• High accuracy voltage detection: ±3%
• Low temperature drift detection voltage: typical ±50ppm/℃
• Compact packages: SOT23-3, SOT89-3, TO92
