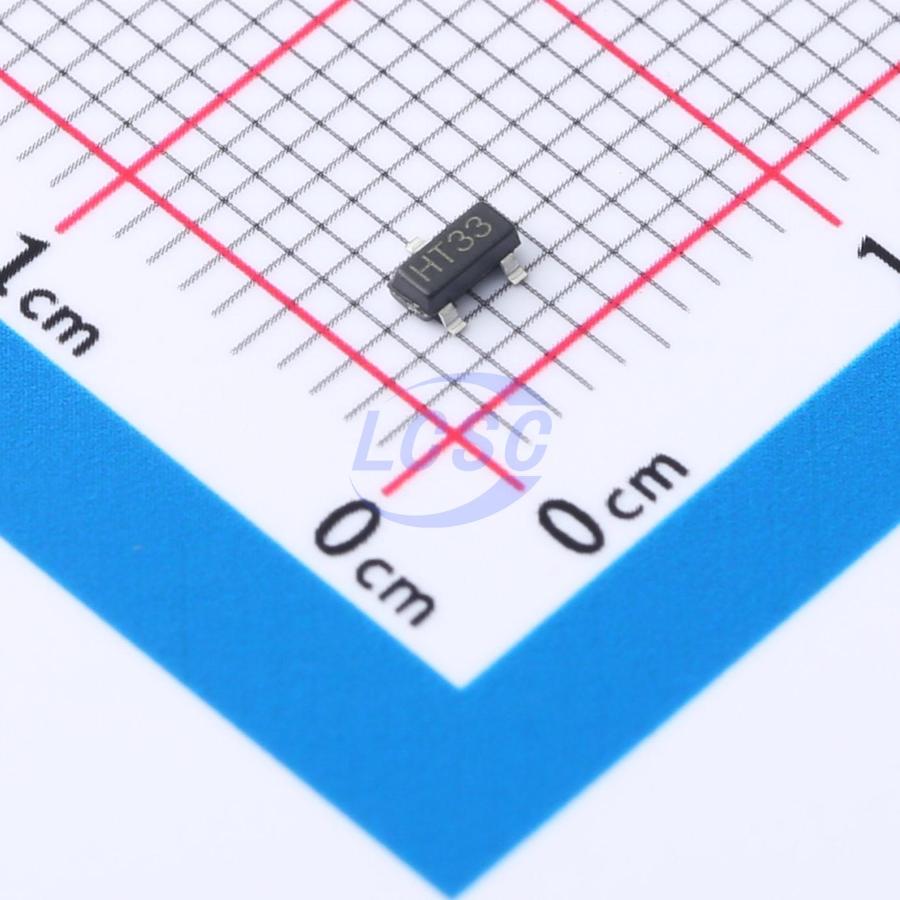

GR7533HS
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-23-3
SOT-23-3RoHSActive
LDO High-Voltage Regulator
- Manufacturer
- GR
- Manufacturer part #
- GR7533HS
- Store part #
- C19631782
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,920 in stock
#C19631782
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.01 | ₹100.20 |
| 200+ | ₹3.98 | ₹796.00 |
| 600+ | ₹3.47 | ₹2,082.00 |
| 3,000+ | ₹3.08 | ₹9,240.00 |
| 9,000+ | ₹2.78 | ₹25,020.00 |
| 21,000+ | ₹2.62 | ₹55,020.00 |
20 × ₹5.01
₹100.20
excl. GST
₹118.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR7533HS
₹100.20 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 30mA
- Operating Voltage
- 25V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.131 g
Overview
GR75xxH series are low-power, high-voltage linear regulators fabricated using CMOS process, supporting a maximum input voltage of 25V and an output voltage range of 1.5V to 12.0V. They feature high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: typical 2μA
- Low dropout voltage: typical 0.1V
- Low temperature drift: typical 50 ppm/°C
- High input voltage: up to 25V
- High output voltage accuracy: ±3% tolerance
- Package: TO-92, SOT89-3, SOT23-3
