GS1G14-CR

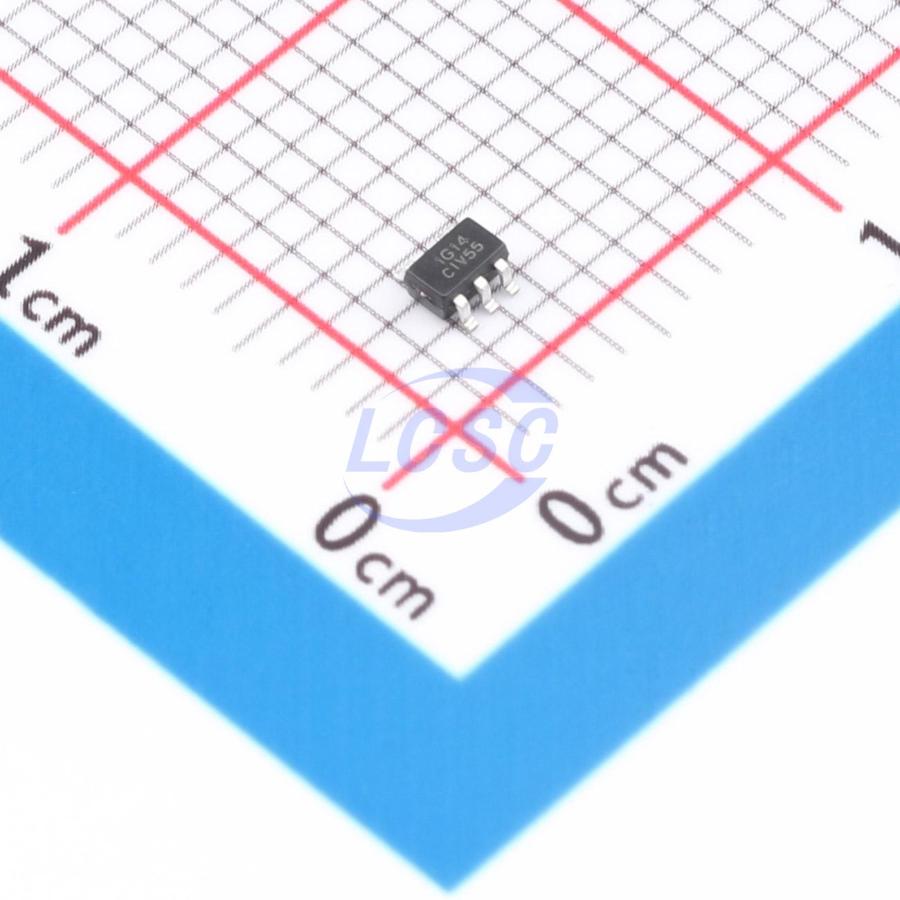

Schmitt trigger 1.65V~5.5V 3.5ns@5V,50pF 10uA 1 SC-70-5 Gates and Inverters

SC-70-5RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS1G14-CR
Store part #: C52211846
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C52211846

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.90	₹109.50
50+	₹17.33	₹866.50
150+	₹15.36	₹2,304.00
500+	₹12.91	₹6,455.00
3,000+	₹11.83	₹35,490.00
6,000+	₹11.18	₹67,080.00

Quantity (min 5, multiples of 5)

5 × ₹21.90

₹109.50

excl. GST

₹129.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS1G14-CR

₹109.50 for 5 + GST

Specifications

Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.5ns@5V,50pF
Output Logic Level - Low: 100mV;150mV;250mV;350mV
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 1.1V;1.5V
Input Logic Level - Low: 550mV;750mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.7V;2.2V;2.1V;3.6V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

Single Schmitt-trigger inverter designed for 1.65V to 5.5V VCC operation. The GS1G14 contains one inverter that performs the Boolean function Y = Ā. The device operates as a stand-alone inverter with Schmitt-trigger inputs, providing different input threshold levels for rising-edge (VT+) and falling-edge (VT-) signals to deliver hysteresis (ΔVT), enabling the device to tolerate slow or noisy input signals. The device is fully specified for partial power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow when the device is powered down. The GS1G14 is available in a green SC70-5 package. Operating ambient temperature range: -40°C to +125°C.
