Gainsil

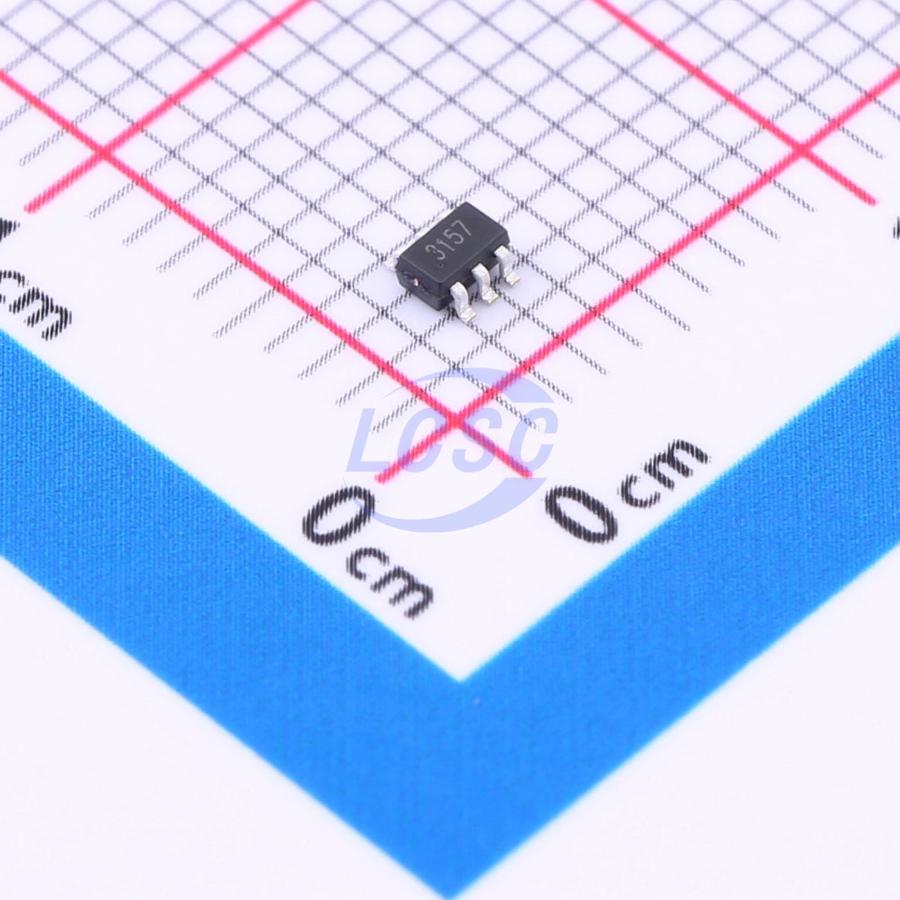

GS3157-CR

4Ω 1 1.8V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers

SC-70-6RoHSActive

Low Voltage, SPDT Analog Switch

Manufacturer: Gainsil
Manufacturer part #: GS3157-CR
Store part #: C5179665
Package / case: SC-70-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,680 in stock

#C5179665

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
10+	₹8.68	₹86.80
100+	₹6.91	₹691.00
300+	₹6.02	₹1,806.00
3,000+	₹5.13	₹15,390.00
6,000+	₹4.60	₹27,600.00
9,000+	₹4.34	₹39,060.00

Quantity (min 10, multiples of 10)

10 × ₹8.68

₹86.80

excl. GST

₹102.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS3157-CR

₹86.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+125℃
Ron: 4Ω
Number of Channels: 1
Voltage - Supply: 1.8V~5.5V
Con: 15.5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.043 g

Overview

The GS3157 is low on-resistance (4.0Ω), fast single-pole double-throw (SPDT) CMOS switch with operation range +1.8V~ +5.5V. The GS3157 is designed for low operating voltage, high current switching of signal gating, chopping, modulation or demodulation (modem), and speaker output for cell phone applications. The device contains a break-before-make (BBM) feature. The control input, IN, tolerates input drive signals up to 5.5V, independent of supply voltage. All devices are specified for the temperature range of -40°C to +125°C. The GS3157 single is available in Green SC70-6 and SOT23-6 packages.

Applications

Battery-Operated Equipment
Portable Systems
Wearable Devices
Cell Phones
Computer Peripherals
PDAs

Key features

On-Resistance: 4.0Ω (TYP)
-3dB Bandwidth: 300MHz
Single-Supply Operation: +1.8V~+5.5V
Break-Before-Make Switching
Rail-to-Rail Operation
Low Static Power TTL/CMOS Compatible
Operating Temperature: -40°C~+125°C
Small Package: GS3157 Available in SOT23-6 and SC70-6 Packages
