Gainsil

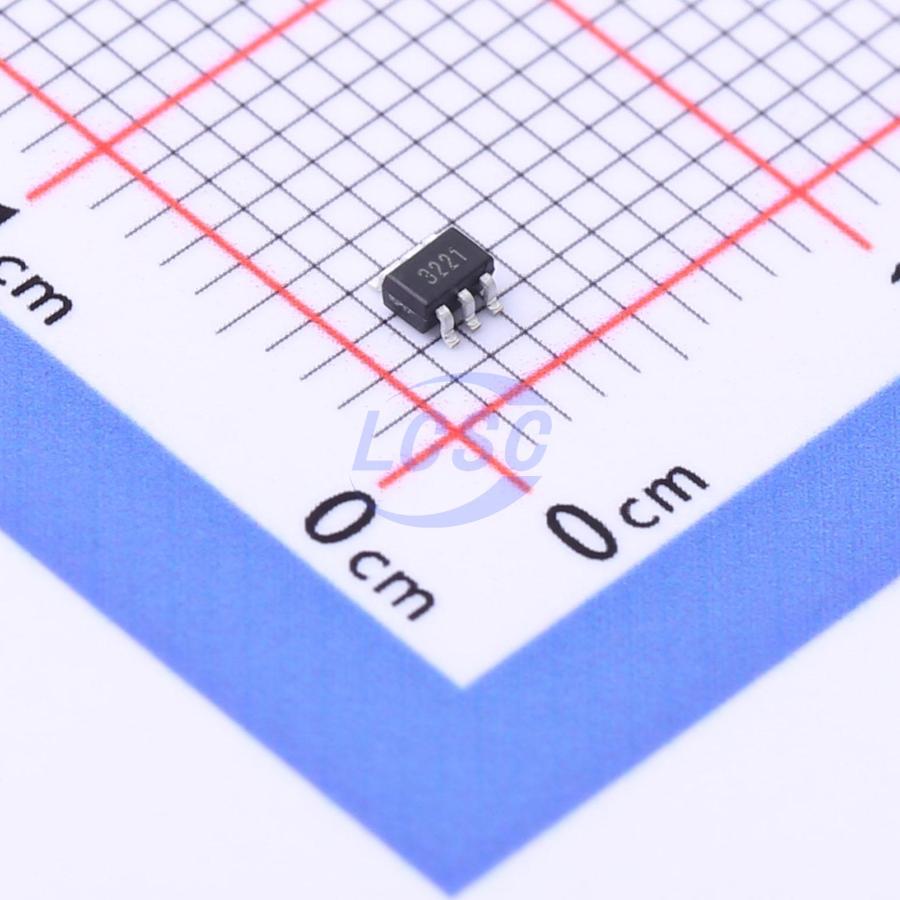

GS3221-CR

1.5Ω 1 1.8V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers

SC-70-6RoHSActive

Low Voltage, SPDT Analog Switch

Manufacturer: Gainsil
Manufacturer part #: GS3221-CR
Store part #: C2978620
Package / case: SC-70-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,970 in stock

#C2978620

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.76	₹78.80
50+	₹12.54	₹627.00
150+	₹10.93	₹1,639.50
500+	₹9.72	₹4,860.00
3,000+	₹8.36	₹25,080.00
6,000+	₹7.89	₹47,340.00

Quantity (min 5, multiples of 5)

5 × ₹15.76

₹78.80

excl. GST

₹92.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS3221-CR

₹78.80 for 5 + GST

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+125℃
Ron: 1.5Ω
Number of Channels: 1
Voltage - Supply: 1.8V~5.5V
Con: 40pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The GS3221 is low on-resistance (1.5Ω), fast single-pole double-throw (SPDT) CMOS switch with operation range +1.8V ~ +5.5V. The GS3221 is designed for low operating voltage, high current switching of signal gating, chopping, modulation or demodulation (modem), and speaker output for cell phone applications. The device contains a break-before-make (BBM) feature. The control input, IN, tolerates input drive signals up to 5.5V, independent of supply voltage. All devices are specified for the temperature range of -40 °C to +125 °C. The GS3221 single is available in Green SC70-6 and SOT23-6 packages.

Applications

Battery-Operated Equipment
Portable Systems
Wearable Devices
Cell Phones
Computer Peripherals
PDAs

Key features

On-Resistance: 1.5Ω (TYP)
TTL/CMOS Compatible
-3dB Bandwidth: 100MHz
Operating Temperature: -40°C ~ +125°C
Single-Supply Operation: +1.8V ~ +5.5V
Small Package: GS3221 Available in SOT23-6 and SC70-6 Packages
Rail-to-Rail Operation
Low Static Power
