GainsilDatasheet (PDF)

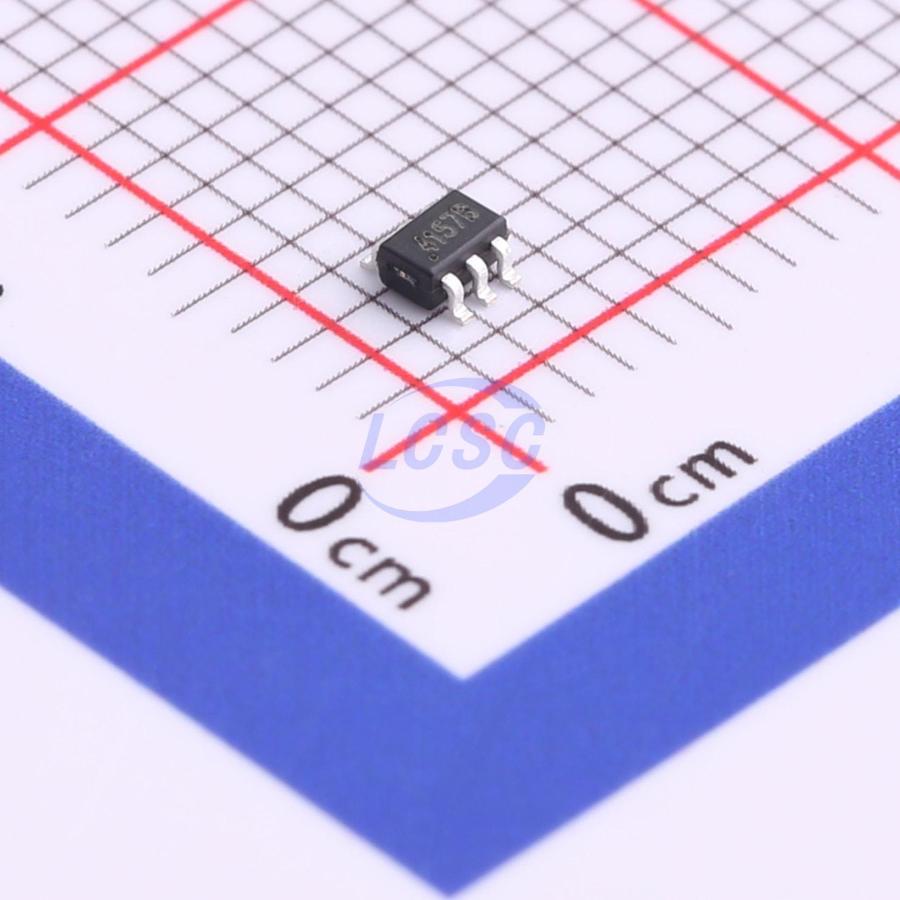

GS4157B-CR
800mΩ 1 1.8V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers
SC-70-6RoHSActive
Low Voltage, SPDT Analog Switch
- Manufacturer
- Gainsil
- Manufacturer part #
- GS4157B-CR
- Store part #
- C840035
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,275 in stock
#C840035
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.38 | ₹91.90 |
| 50+ | ₹14.72 | ₹736.00 |
| 150+ | ₹12.90 | ₹1,935.00 |
| 500+ | ₹11.54 | ₹5,770.00 |
| 3,000+ | ₹10.44 | ₹31,320.00 |
| 6,000+ | ₹9.90 | ₹59,400.00 |
5 × ₹18.38
₹91.90
excl. GST
₹108.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS4157B-CR
₹91.90 for 5 + GST
Specifications
- Features
- Glitch-free switching
- Operating Temperature
- -40℃~+125℃
- Ron
- 800mΩ
- Number of Channels
- 1
- Voltage - Supply
- 1.8V~5.5V
- Con
- 73pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The GS4157B is low on-resistance (0.8Ω), fast single-pole double-throw (SPDT) CMOS switch with operation range +1.8V ~ +5.5V. The GS4157B is designed for low operating voltage, high current switching of signal gating, chopping, modulation or demodulation (modem), and speaker output for cell phone applications. The device contains a break-before-make (BBM) feature. The control input, IN, tolerates input drive signals up to 5.5V, independent of supply voltage. All devices are specified for the temperature range of -40°C to +125°C. The GS4157B single is available in Green SC70-6 and SOT23-6 packages.
Applications
- Battery-Operated Equipment
- Portable Systems
- Wearable Devices
- Cell Phones
- Computer Peripherals
- PDAs
Key features
- On-Resistance: 0.8Ω (TYP)
- -3dB Bandwidth: 80MHz
- Single-Supply Operation: +1.8V ~ +5.5V
- Break-Before-Make Switching
- Rail-to-Rail Operation
- Low Static Power
