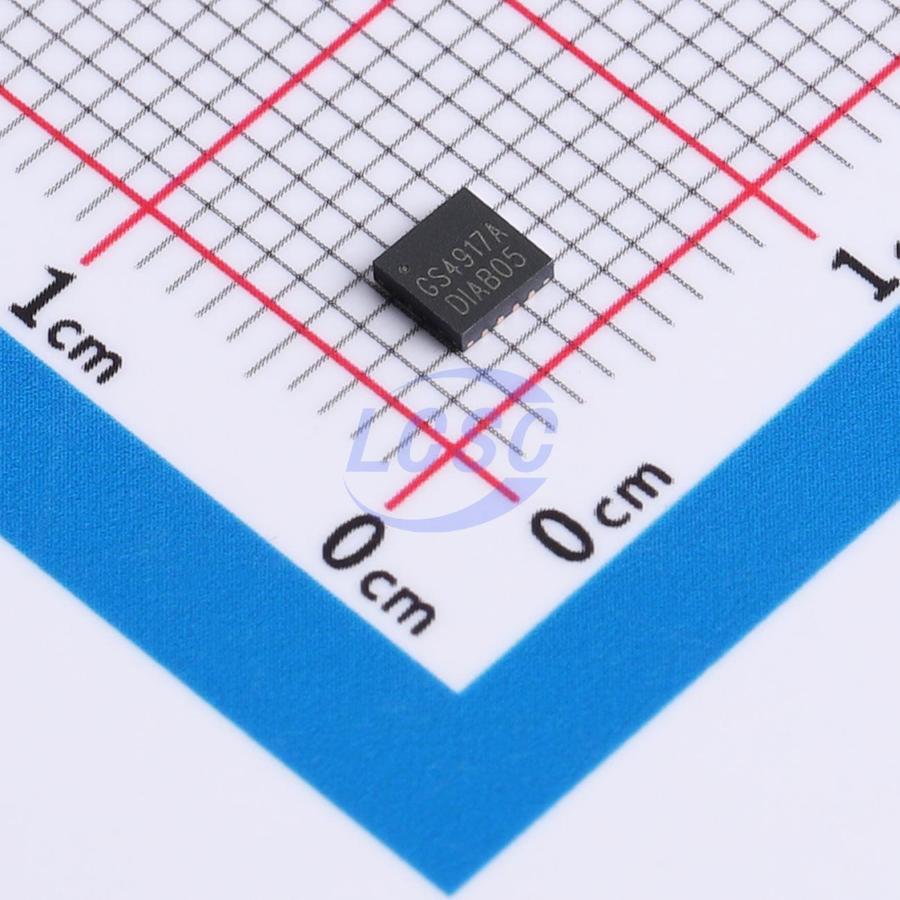

GS4917-AFR

GS4917 is a stereo headphone amplifier designed for portable applications, operating from a 2.7V to 5.5V single supply. Its capacitor-free design generates a ground-referenced output from a single supply, eliminating output DC-blocking capacitors to reduce component height and cost. For the GS4917-BFR, the internal gain is fixed at -2V/V, further reducing component count. For the GS4917-AFR, the gain is adjustable via external feedback resistors. The device features a quiescent current as low as 2.7mA from a 5V supply, THD+N as low as 0.02%, and delivers 80mW per channel into a 32Ω load at 0.1% THD+N with a 5V supply. Its PSRR of up to -78dB at 217Hz allows the device to operate from noisy digital supplies without an additional LDO. The device provides short-circuit and thermal overload protection. The built-in shutdown control also enables pop- and click-free switching. The GS4917 is available in a green QFN-3×3-16 package with an operating temperature range of -40°C to +85°C.

Applications

• Smartphones
• Laptops
• Portable audio devices
• Personal digital assistants

Key features

• Supply voltage range: 2.7V~5.5V
• GS4917A: external feedback gain network; GS4917B: fixed -2V/V gain
• Capacitor-free architecture
• Eliminates ground-referenced output
• Eliminates output DC-blocking capacitors for flat frequency response
• 80mW per channel into 32Ω load at 5V supply with THD+N = 0.1%
• THD+N = 0.02%
• High PSRR: -78dB
• Quiescent current: 2.7mA
• Shutdown control
• Short-circuit and thermal overload protection
• Undervoltage lockout
• Enhanced noise rejection via differential inputs
• Operating temperature: -40°C~+85°C
• Green QFN-3×3-16 package
