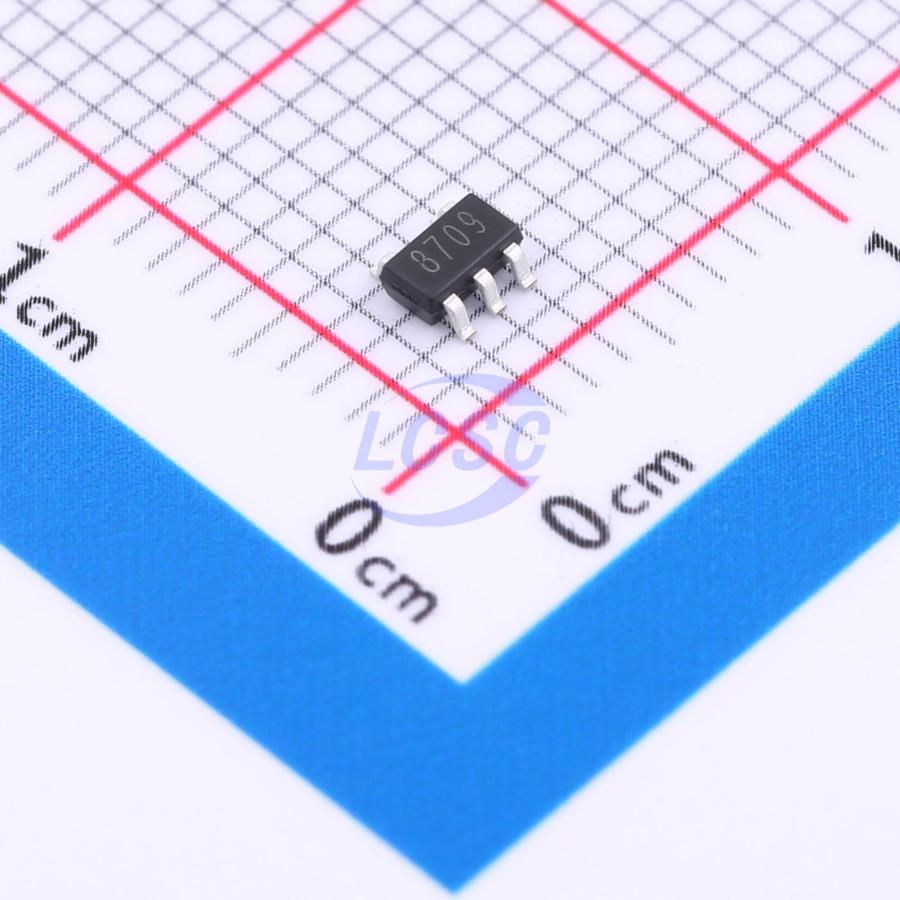

GS8709-TR
Rail-to-Rail Input, Rail-to-Rail Output 500uV 9pA 1 SOT-23-5 Linear Comparators
Micro-Power, RRlO, Push-Pull Output Comparator with Integrated Voltage Reference
- Manufacturer
- Gainsil
- Manufacturer part #
- GS8709-TR
- Store part #
- C2927686
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C2927686
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.54 | ₹172.70 |
| 50+ | ₹30.48 | ₹1,524.00 |
| 150+ | ₹28.74 | ₹4,311.00 |
| 500+ | ₹26.55 | ₹13,275.00 |
| 3,000+ | ₹23.17 | ₹69,510.00 |
| 6,000+ | ₹22.58 | ₹1,35,480.00 |
5 × ₹34.54
₹172.70
excl. GST
₹203.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS8709-TR
₹172.70 for 5 + GST
Specifications
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 325nA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 6us
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis;Complementary bipolar input stage
- Dual Supply
- 0.7V~2.75V;-2.75V~-0.7V
- Input Hysteresis Voltage (Vhys)
- 4.7mV
- Common Mode Rejection Ratio(CMRR)
- 76dB
- Vos - Input Offset Voltage
- 500uV
- Ib - Input Bias Current
- 9pA
- Number of Channels
- 1
- Input Offset Current(Ios)
- 4pA
- Response Time (tr)
- 10ns
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The GS8709/GS8712 is ultra-low-power comparator with internal hysteresis, optimized for systems powered from a 3V or 5V supply. The device features high-speed response, low-power consumption, low offset voltage, and rail-to-rail input and output range. Propagation delay is 6us (100mV overdrive), while supply current is 325nA per comparator. The internal input hysteresis eliminates output switching due to internal input noise voltage. The maximum input offset voltage is 3mV, and the operating range is from 1.4V to 5.5V. All devices are specified for the temperature range of -40°C to +85°C.
Applications
- Window Comparators
- IR Receivers
- Portable Systems
Key features
- 325nA (Typ) Low Power Consumption
- Fast, 6us Propagation Delay
- Single-Supply Operation from +1.4V~+5.5V
- Low Offset Voltage: 3mV (Max)
- Rail-to-Rail Input and Output
- CMOS/TTL-Compatible Output
- Internal Hysteresis for Clean Switching
- No Phase Reversal for Overdriven Inputs
- Operating Temperature: -40°C~+85°C
