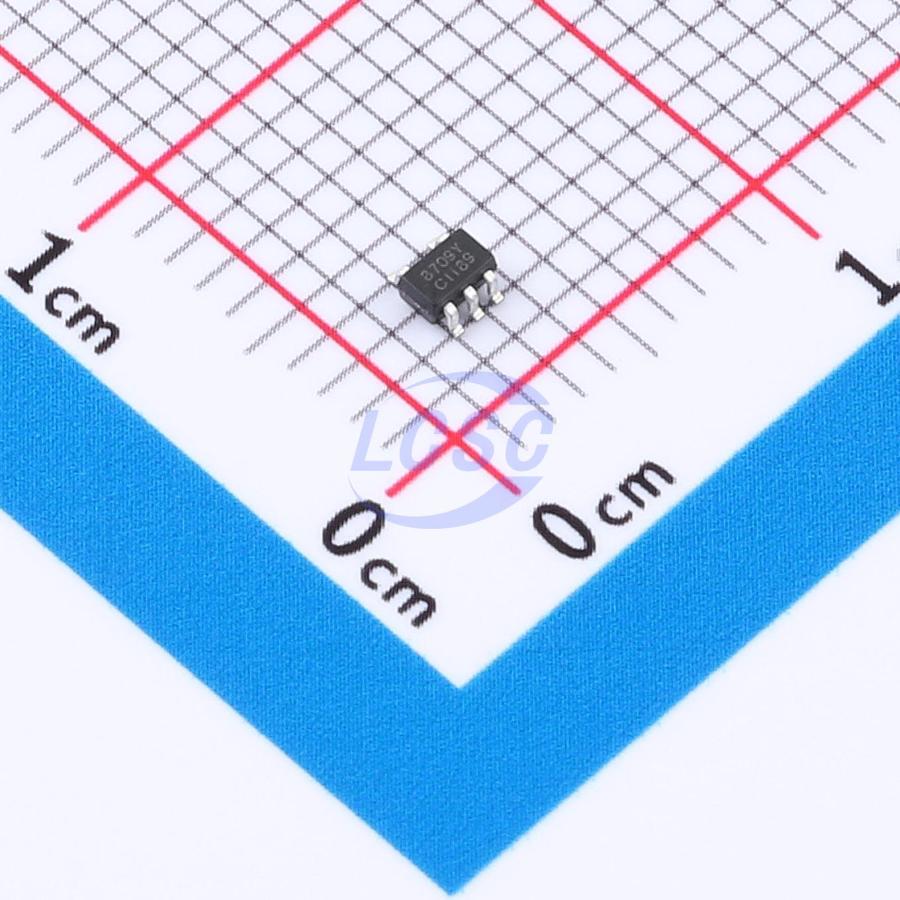

GS8709Y-CR
Rail-to-Rail Input, Rail-to-Rail Output 500uV 6pA 1 SC-70-5 Linear Comparators
- Manufacturer
- Gainsil
- Manufacturer part #
- GS8709Y-CR
- Store part #
- C49326103
- Package / case
- SC-70-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,934 in stock
#C49326103
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.59 | ₹53.59 |
| 10+ | ₹42.36 | ₹423.60 |
| 30+ | ₹37.60 | ₹1,128.00 |
| 100+ | ₹31.55 | ₹3,155.00 |
| 500+ | ₹28.75 | ₹14,375.00 |
| 1,000+ | ₹27.23 | ₹27,230.00 |
1 × ₹53.59
₹53.59
excl. GST
₹63.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS8709Y-CR
₹53.59 for 1 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 325nA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 6us
- Operating Temperature
- -40℃~+85℃
- Input Hysteresis Voltage (Vhys)
- 4.7mV
- Dual Supply
- -2.75V~-0.7V;0.7V~2.75V
- Common Mode Rejection Ratio(CMRR)
- 76dB
- Vos - Input Offset Voltage
- 500uV
- Ib - Input Bias Current
- 6pA
- Number of Channels
- 1
- Input Offset Current(Ios)
- 4pA
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
GS8709/GS8712 is an ultra-low power comparator with internal hysteresis, optimized for 3V or 5V supply systems. The device features high-speed response, low power consumption, low input offset voltage, and rail-to-rail input and output range. Propagation delay is 6μs (100mV overdrive), and supply current per comparator is 325nA. The internal input hysteresis eliminates output switching caused by internal input noise voltage. Maximum input offset voltage is 3mV, and the operating voltage range is 1.4V to 5.5V. All devices operate over a temperature range of -40℃ to +85℃.
Applications
- Alarm and monitoring circuits
- Peak and zero-crossing detectors
- Logic level shifting or translation
- RC timers
- Window comparators
- Infrared receivers
- Portable systems
Key features
- Low power consumption, 325nA typical
- Fast 6μs propagation delay
- Single-supply operation, +1.4V ~ +5.5V
- Low offset voltage: 3mV maximum
- Rail-to-rail input and output
- CMOS/TTL compatible output
- Internal hysteresis for clean switching
- No phase reversal with overdrive input
- Operating temperature: -40℃ ~ +85℃
