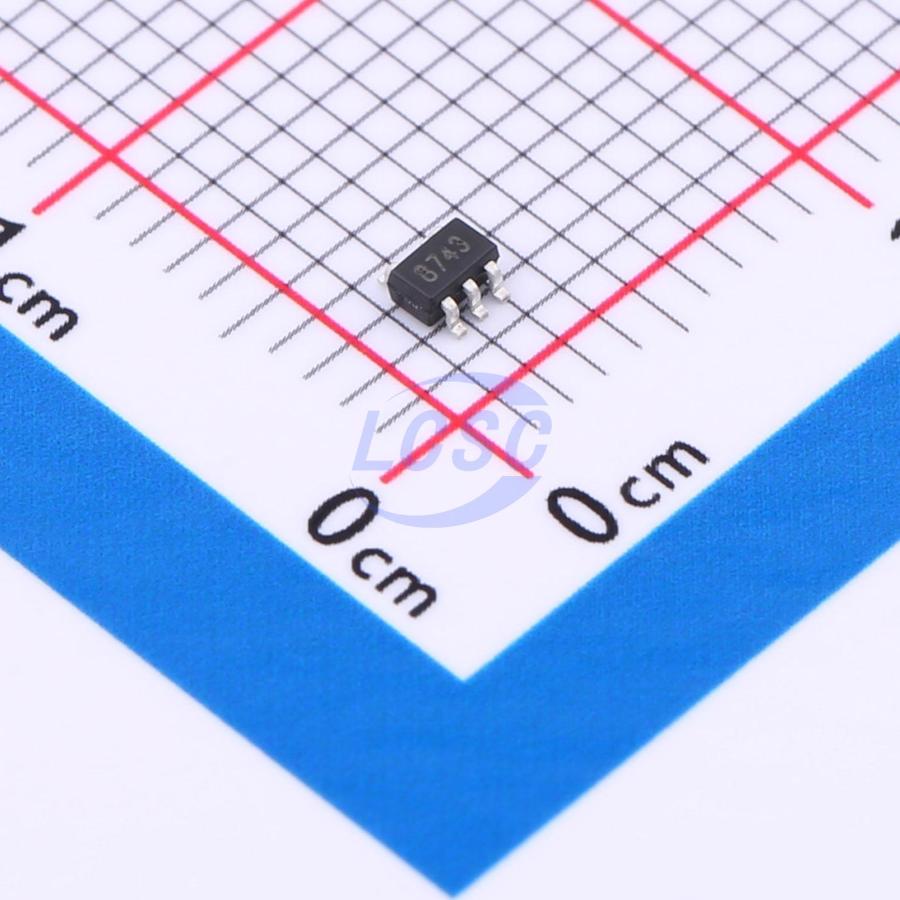

GS8743-CR
Rail-to-Rail Input, Rail-to-Rail Output 400uV 9pA 1 SC-70-5 Linear Comparators
Low-power, rail-to-rail input single-supply comparator
- Manufacturer
- Gainsil
- Manufacturer part #
- GS8743-CR
- Store part #
- C2927685
- Package / case
- SC-70-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,061 in stock
#C2927685
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.72 | ₹79.72 |
| 10+ | ₹65.59 | ₹655.90 |
| 30+ | ₹58.44 | ₹1,753.20 |
| 100+ | ₹51.27 | ₹5,127.00 |
| 500+ | ₹47.14 | ₹23,570.00 |
| 1,000+ | ₹39.32 | ₹39,320.00 |
1 × ₹79.72
₹79.72
excl. GST
₹94.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS8743-CR
₹79.72 for 1 + GST
Specifications
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 1.3mA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 6ns
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis;Complementary bipolar input stage
- Dual Supply
- 1.35V~2.75V;-2.75V~-1.35V
- Input Hysteresis Voltage (Vhys)
- 3mV
- Common Mode Rejection Ratio(CMRR)
- 77dB
- Vos - Input Offset Voltage
- 400uV
- Ib - Input Bias Current
- 9pA
- Number of Channels
- 1
- Input Offset Current(Ios)
- 4pA
- Single Supply
- 2.7V~5.5V
- Response Time (tr)
- 3.5ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The GS8743 is low-power, ultra-high-speed comparators with internal hysteresis, optimized for systems powered from a 3V or 5V supply. The device features high-speed response, low-power consumption, low offset voltage, and rail-to-rail input and output range. Propagation delay is 6ns (100mV overdrive), while supply current is 1.3mA per comparator. The internal input hysteresis eliminates output switching due to internal input noise voltage. The maximum input offset voltage is 5mV, and the operating range is from 2.7V to 5.5V. All devices are specified for the temperature range of -40°C to +85°C. The GS8743 single is available in Green SC70-5 and SOT23-5 packages.
Applications
- High-speed Line or Digital Line Receivers
- Clock and Data Signal Restoration
- High Speed Sampling Circuits
- Window Comparators
- Peak and Zero-crossing Detectors
- IR Receivers
- Logic Level Shifting or Translation
- Portable Systems
Key features
- Ultra-Fast, 6ns Propagation Delay
- 1.3mA (Typ) Low Power Consumption
- Single-Supply Operation from +2.7V~+5.5V
- Low Offset Voltage: 5mV (Max)
- Rail-to-Rail Input and Output
- CMOS/TTL-Compatible Output
- Internal Hysteresis for Clean Switching
- No Phase Reversal for Overdriven Inputs
- Operating Temperature: -40°C~+85°C
- Small Package: GS8743 Available in SOT23-5 and SC70-5 Packages
