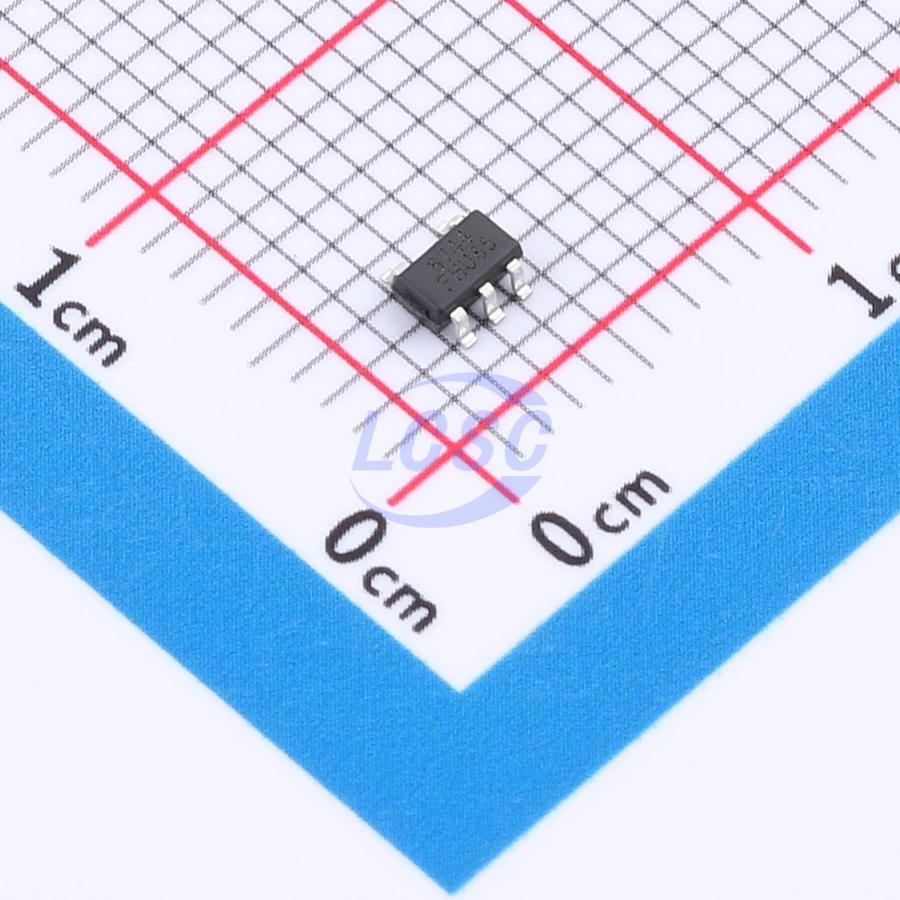

GS8744-TR
Rail-to-Rail Input, Rail-to-Rail Output 5mV 6pA 1 SOT-23-5 Linear Comparators
Ultra-Fast, 6ns Propagation Delay
- Manufacturer
- Gainsil
- Manufacturer part #
- GS8744-TR
- Store part #
- C840039
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,248 in stock
#C840039
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.89 | ₹70.89 |
| 10+ | ₹55.75 | ₹557.50 |
| 30+ | ₹49.27 | ₹1,478.10 |
| 100+ | ₹41.28 | ₹4,128.00 |
| 500+ | ₹37.60 | ₹18,800.00 |
| 1,000+ | ₹35.65 | ₹35,650.00 |
1 × ₹70.89
₹70.89
excl. GST
₹83.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GS8744-TR
₹70.89 for 1 + GST
Specifications
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 1.3mA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 6ns
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Features
- Built-in hysteresis;Complementary bipolar input stage
- Input Hysteresis Voltage (Vhys)
- 3mV
- Common Mode Rejection Ratio(CMRR)
- 77dB
- Vos - Input Offset Voltage
- 5mV
- Ib - Input Bias Current
- 6pA
- Number of Channels
- 1
- Input Offset Current(Ios)
- 4pA
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.052 g
Overview
The GS8744 is low-power, ultra-high-speed comparators with internal hysteresis, optimized for systems powered from a 3V or 5V supply. The device features high-speed response, low-power consumption, low offset voltage, and rail-to-rail input and output range. Propagation delay is 6ns (100mV overdrive), while supply current is 1.3mA per comparator. The internal input hysteresis eliminates output switching due to internal input noise voltage. The maximum input offset voltage is 5mV, and the operating range is from 2.7V to 5.5V. All devices are specified for the temperature range of -40°C to +85°C. The GS8744 single is available in Green SC70-5 and SOT23-5 packages.
Applications
- High-speed Line or Digital Line Receivers
- High Speed Sampling Circuits
- Peak and Zero-crossing Detectors
- Logic Level Shifting or Translation
- Clock and Data Signal Restoration
- Window Comparators
- IR Receivers
- Portable Systems
Key features
- Ultra-Fast, 6ns Propagation Delay
- 1.3mA (Typ) Low Power Consumption
- Single-Supply Operation from +2.7V~+5.5V
- Low Offset Voltage: 5mV (Max)
- Rail-to-Rail Input and Output CMOS/TTL-Compatible Output
- Internal Hysteresis for Clean Switching
- No Phase Reversal for Overdriven Inputs
- Operating Temperature: -40°C~+85°C
- Small Package: GS8744 Available in SOT23-5 and SC70-5 Packages
