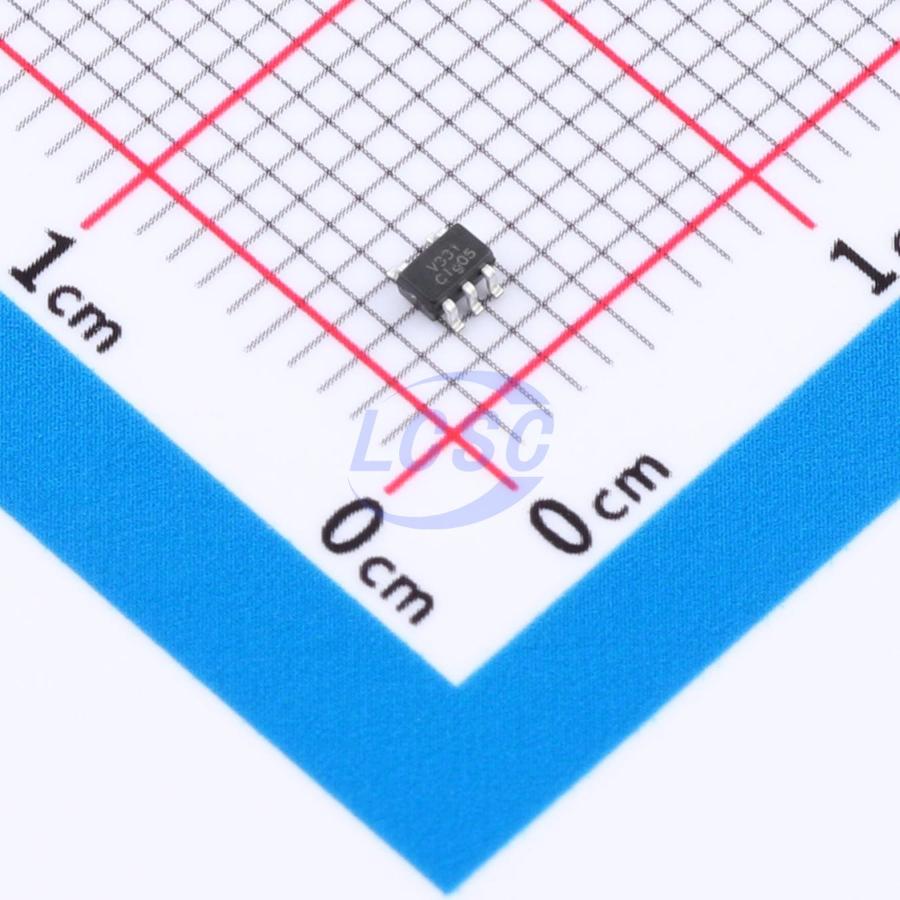

GSV331-CR
Rail-to-Rail Input, Rail-to-Rail Output 500uV 6pA 1 SC-70-5 Linear Comparators
GSV331 Low-Power High-Speed Comparator
- Manufacturer
- Gainsil
- Manufacturer part #
- GSV331-CR
- Store part #
- C7501221
- Package / case
- SC-70-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,895 in stock
#C7501221
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.16 | ₹160.80 |
| 50+ | ₹25.40 | ₹1,270.00 |
| 150+ | ₹22.52 | ₹3,378.00 |
| 500+ | ₹18.91 | ₹9,455.00 |
| 2,500+ | ₹17.29 | ₹43,225.00 |
| 5,000+ | ₹16.33 | ₹81,650.00 |
5 × ₹32.16
₹160.80
excl. GST
₹189.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GSV331-CR
₹160.80 for 5 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 46uA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 70ns
- Operating Temperature
- -40℃~+85℃
- Input Hysteresis Voltage (Vhys)
- 6mV
- Dual Supply
- -2.75V~-0.9V;0.9V~2.75V
- Features
- Built-in hysteresis;Complementary bipolar input stage
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 500uV
- Ib - Input Bias Current
- 6pA
- Number of Channels
- 1
- Input Offset Current(Ios)
- 4pA
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The GSV331 is low-power, high-speed comparator with internal hysteresis, optimized for systems powered from a 3V or 5V supply. The device features high-speed response, low-power consumption, low offset voltage, and rail-to-rail input and output range. Propagation delay is 70ns (100mV overdrive), while supply current is 46uA per comparator. The internal input hysteresis eliminates output switching due to internal input noise voltage. The maximum input offset voltage is 3mV, and the operating range is from 1.8V to 5.5V. All devices are specified for the temperature range of -40°C to +85°C. The GSV331 single is available in Green SC70-5 and SOT23-5 packages. The GSV332 dual is available in Green SOP-8 and MSOP-8 packages.
Applications
- Alarm and Monitoring Circuits
- Peak and Zero-crossing Detectors
- Logic Level Shifting or Translation
- RC Timers
- Window Comparators
- IR Receivers
- Portable Systems
Key features
- 46uA (Typ) Low Power Consumption
- Fast, 70ns Propagation Delay
- Single-Supply Operation from +1.8V~+5.5V
- Low Offset Voltage: 3mV (Max)
- Rail-to-Rail Input and Output CMOS/TTL-Compatible Output
- Internal Hysteresis for Clean Switching
- No Phase Reversal for Overdriven Inputs
- Operating Temperature: -40°C~+85°C
- Small Package: GSV331 Available in SOT23-5 and SC70-5 Packages GSV332 Available in SOP-8 and MSOP-8 Packages
