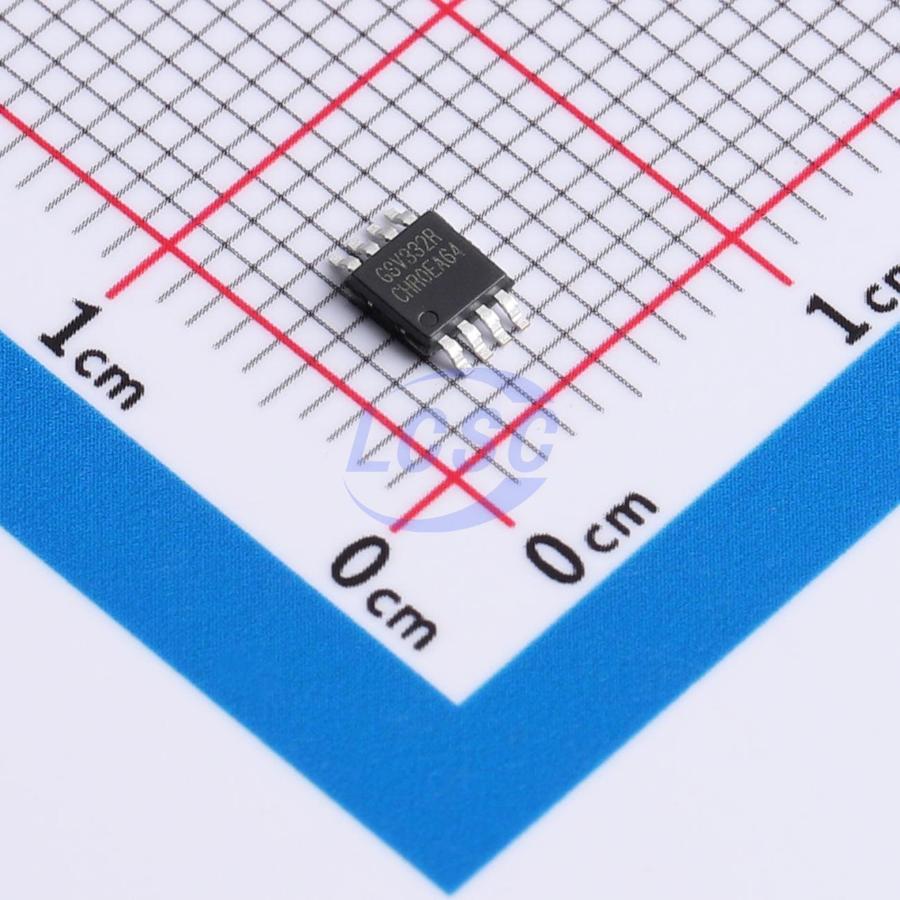

GSV332R-MR
Rail-to-Rail Input, Rail-to-Rail Output 500uV 6pA 2 MSOP-8 Linear Comparators
Ultra-low Power, RRIO, Open-Drain Output Comparators
- Manufacturer
- Gainsil
- Manufacturer part #
- GSV332R-MR
- Store part #
- C49326097
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,664 in stock
#C49326097
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.75 | ₹71.75 |
| 10+ | ₹56.62 | ₹566.20 |
| 30+ | ₹50.14 | ₹1,504.20 |
| 100+ | ₹42.14 | ₹4,214.00 |
| 500+ | ₹38.68 | ₹19,340.00 |
| 1,000+ | ₹36.53 | ₹36,530.00 |
1 × ₹71.75
₹71.75
excl. GST
₹84.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GSV332R-MR
₹71.75 for 1 + GST
Specifications
- Output Type
- Open Drain
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 46uA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 70ns
- Operating Temperature
- -40℃~+85℃
- Input Hysteresis Voltage (Vhys)
- 6mV
- Features
- Built-in hysteresis;Complementary bipolar input stage
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 500uV
- Ib - Input Bias Current
- 6pA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 4pA
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
The GSV331R/V332R is low-power, high-speed comparator with internal hysteresis, optimized for systems powered from a 3V or 5V supply. The device features high-speed response, low-power consumption, low offset voltage, and rail-to-rail input and output range. Propagation delay is 70ns (100mV overdrive), while supply current is 46uA per comparator. The internal input hysteresis eliminates output switching due to internal input noise voltage. The maximum input offset voltage is 3mV, and the operating range is from 1.8V to 5.5V. All devices are specified for the temperature range of -40°C to +85°C. The GSV331R single is available in Green SC70-5 and SOT23-5 packages. The GSV332R dual is available in Green SOP-8 and MSOP-8 packages.
Applications
- Alarm and Monitoring Circuits
- Peak and Zero-crossing Detectors
- Logic Level Shifting or Translation
- RC Timers
- Window Comparators
- IR Receivers
- Portable Systems
Key features
- 46uA (Typ) Low Power Consumption
- Internal Hysteresis for Clean Switching
- Fast, 70ns Propagation Delay
- No Phase Reversal for Overdriven Inputs
- Single-Supply Operation from +1.8V~+5.5V
- Operating Temperature: -40°C~+85°C
- Low Offset Voltage: 3mV (Max)
- Small Package
- Rail-to-Rail Input and Output
- GSV331R Available in SOT23-5 and SC70-5 Packages
- CMOS/TTL-Compatible Output
- GSV332R Available in SOP-8 and MSOP-8 Packages
