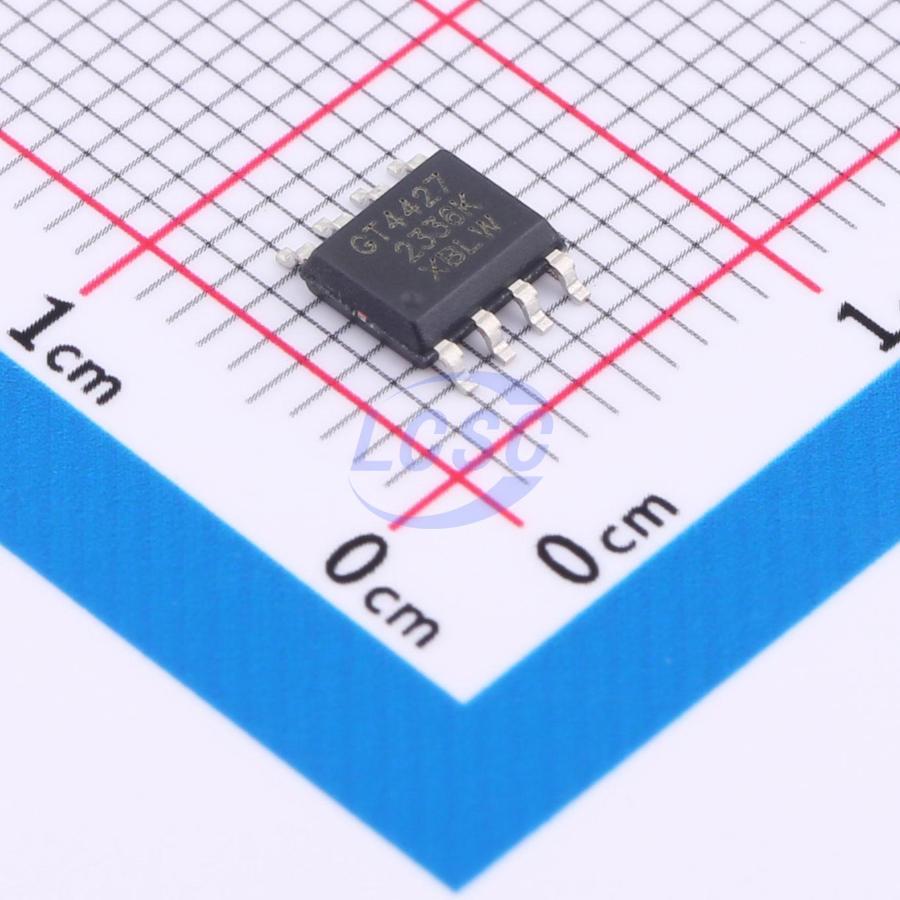

GT4427DTR
4.5V~25V SOP-8 Gate Drivers RoHS
Dual 2A Ultra-high-speed Power Switching Driver
- Manufacturer
- XBLW
- Manufacturer part #
- GT4427DTR
- Store part #
- C19267459
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,679 in stock
#C19267459
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.06 | ₹56.06 |
| 10+ | ₹43.90 | ₹439.00 |
| 30+ | ₹38.68 | ₹1,160.40 |
| 100+ | ₹32.37 | ₹3,237.00 |
| 500+ | ₹29.56 | ₹14,780.00 |
| 1,000+ | ₹27.82 | ₹27,820.00 |
1 × ₹56.06
₹56.06
excl. GST
₹66.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GT4427DTR
₹56.06 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 1mA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~25V
- Operating Temperature
- -40℃~+125℃
- Rise Time
- 30ns
- Fall Time
- 30ns
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.193 g
Overview
XBLW GT4427 is a power switching driver. It has matched rise and fall times when charging and discharging the gate. This device is highly latch-up resistant under any conditions within their power and voltage ratings. It is not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. The GT4427 can accept, without damage or logic upset, up to 500 mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against Electrostatic Discharge (ESD) up to 2.0 kV.
Applications
- Switch Mode Power Supplies & Switching Converters
- Line Drivers
- Pulse Transformer Drive
- Driving MOSFETs and IGBTs
- Motor Control
- Pulse Generator
- Power Switch
- DC-DC Converters
- Switching Amplifier Class D
Key features
- Latch-Up Protected: Withstands 0.5A Reverse Current
- Input Logic Protection Down To -10V
- Low Output Impedance
- Single Chip Integrated Two-Way Drive
- Output Peak Current: 2A
- Input Supply Voltage Operating Range: 4.5V~25V
- The Maximum Input Voltage up to 5V
- High Capacity Load Drive Capability: 1000 pF in 25ns
- Matched Rise And Fall Times
- Short Delay Times: 40ns
- Wide Temperature Range: -40°C~125°C
- Chip Turn-On/Turn-Off Delay Characteristics - Ton /Toff = 70ns/70ns
- Compliant With RoSH Standard, Adopting SOP-8 Package
- Outputs in phase with inputs
