HGSEMIDatasheet (PDF)

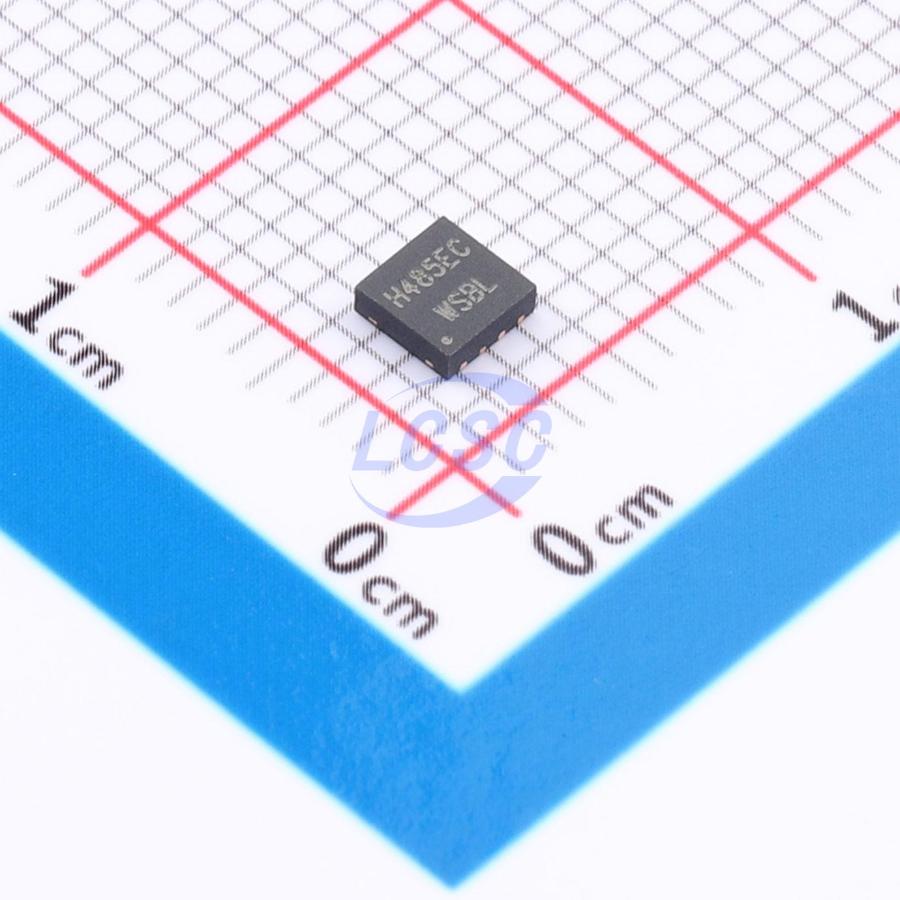

H485ECDQ/TR
1/1 Transceiver RS422, RS485 DFN-8-EP(3x3)
DFN-8-EP(3x3)RoHSActive
IC TRANSCEIVER 1/1 DFN-8-EP(3x3)
- Manufacturer
- HGSEMI
- Manufacturer part #
- H485ECDQ/TR
- Store part #
- C46552322
- Package / case
- DFN-8-EP(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C46552322
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.93 | ₹104.65 |
| 50+ | ₹18.19 | ₹909.50 |
| 150+ | ₹17.01 | ₹2,551.50 |
| 500+ | ₹15.55 | ₹7,775.00 |
| 2,500+ | ₹14.90 | ₹37,250.00 |
| 5,000+ | ₹14.50 | ₹72,500.00 |
5 × ₹20.93
₹104.65
excl. GST
₹123.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
H485ECDQ/TR
₹104.65 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Number of Nodes
- 128
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 900uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.145 g
Overview
H485E is a high-speed transceiver for RS-485 communication, incorporating one driver and one receiver. The device features a failsafe circuit that ensures the receiver output remains logic high when the receiver inputs are open or shorted. This means that if all transmitters on the bus are disabled (high-impedance state), the receiver output will be logic high. The H485E driver has an unconstrained slew rate, enabling data rates up to 10Mbps. The device has a receiver input impedance of 1/8 unit load, allowing up to 128 transceivers to be connected on the bus.
Applications
- RS-485 communication
- Level translators
- Safety equipment
- Industrial control equipment
- Energy meters
Key features
- Fail-safe circuitry
- Low power consumption
- Up to 128 transceivers on the bus
- Maximum data rate: 10Mbps
- ESD protection: ≥±15kV
- Available in DIP-8, SOP-8, MSOP-8, DFN-8 packages
