HGSEMIDatasheet (PDF)

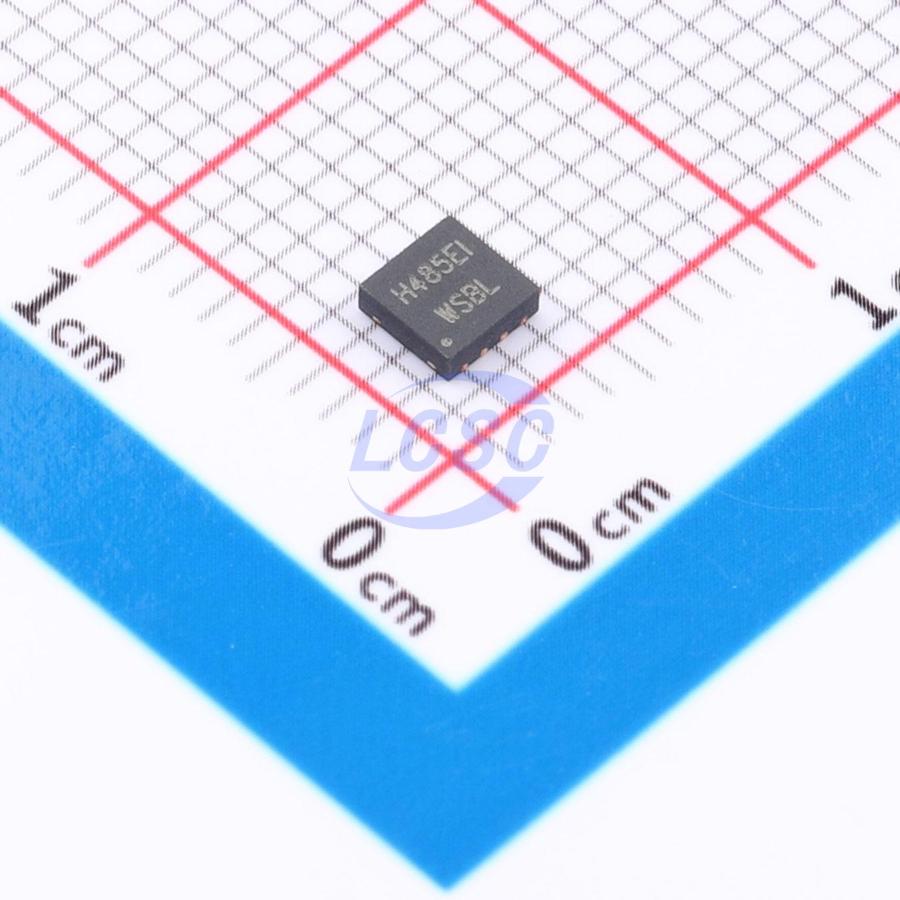

H485EIDQ/TR
1/1 Transceiver RS422, RS485 DFN-8-EP(3x3)
DFN-8-EP(3x3)RoHSActive
High-speed RS-485 communication transceiver
- Manufacturer
- HGSEMI
- Manufacturer part #
- H485EIDQ/TR
- Store part #
- C46552321
- Package / case
- DFN-8-EP(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,490 in stock
#C46552321
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.21 | ₹116.05 |
| 50+ | ₹20.27 | ₹1,013.50 |
| 150+ | ₹19.00 | ₹2,850.00 |
| 500+ | ₹17.44 | ₹8,720.00 |
| 2,500+ | ₹16.74 | ₹41,850.00 |
| 5,000+ | ₹16.31 | ₹81,550.00 |
5 × ₹23.21
₹116.05
excl. GST
₹136.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
H485EIDQ/TR
₹116.05 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Number of Nodes
- 128
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 450uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.145 g
Overview
The H485E is high-speed transceivers for RS-485 communication, which contain one driver and one receiver. The H485E feature fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The H485E driver slew rates are not limited, making transmit speeds up to 10Mbps possible. And this device has a 1/8-unit-load receiver input impedance that allows up to 128 transceivers on the bus.
Applications
- RS-485 Communications
- Level Translators
- Security Equipment
- Industrial Control Equipment
- Watt-hour meter
Key features
- Fail-safe circuitry
- Low power consumption
- Up to 128 transceivers can be attached to the bus
- Maximum transmission rate: 10Mbps
- ESD: ≥±15kV
- DIP-8, SOP-8, MSOP-8, DFN-8 Package
